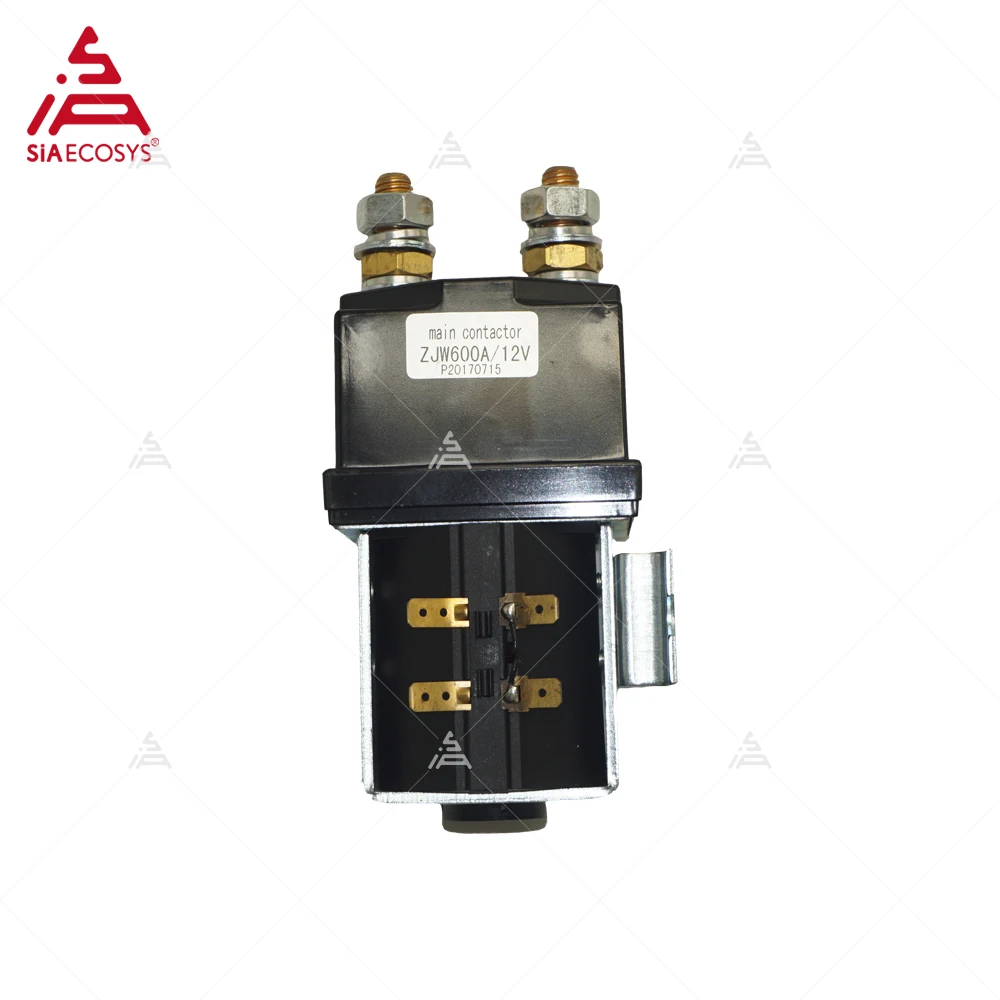

ZJW 12V 600A Main Contactor for Electric Scooter
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
Specification:
20+/-5C cold state max motion voltage(VDC)
Pickup voltage <=70%
Dropout voltage 5%-30%
Machanical life(Min.) 100,000 Ops
Electrical life(Min.) 50,000 Ops
Pickup voltage <=70%
Dropout voltage 5%-30%
Machanical life(Min.) 100,000 Ops
Electrical life(Min.) 50,000 Ops
Max coil current under the rated voltage 1.5A
With 20+/-5C cold state starting coil max current
With 20+/-5C cold state starting coil max current
Insulation Resistance ：100Mohm Min.
Dielectric strength Between Contacts ：2000VAC.
Between coil and contacts： 1500VAC.
Environment temperature and attitude： -40C-/+85C; 0-20000m
Max relative humidity： 98%
The shocking of fixed point 1 Frequency(11Z) ：10-200
Acceleration(g) ：<3.5
Shocking Speed(time/min.)： 60-100
Acceleration(g)： 4
Constant acceleration： 8
Operation regulation ：Continue
Installation direction ：Random
Dielectric strength Between Contacts ：2000VAC.
Between coil and contacts： 1500VAC.
Environment temperature and attitude： -40C-/+85C; 0-20000m
Max relative humidity： 98%
The shocking of fixed point 1 Frequency(11Z) ：10-200
Acceleration(g) ：<3.5
Shocking Speed(time/min.)： 60-100
Acceleration(g)： 4
Constant acceleration： 8
Operation regulation ：Continue
Installation direction ：Random

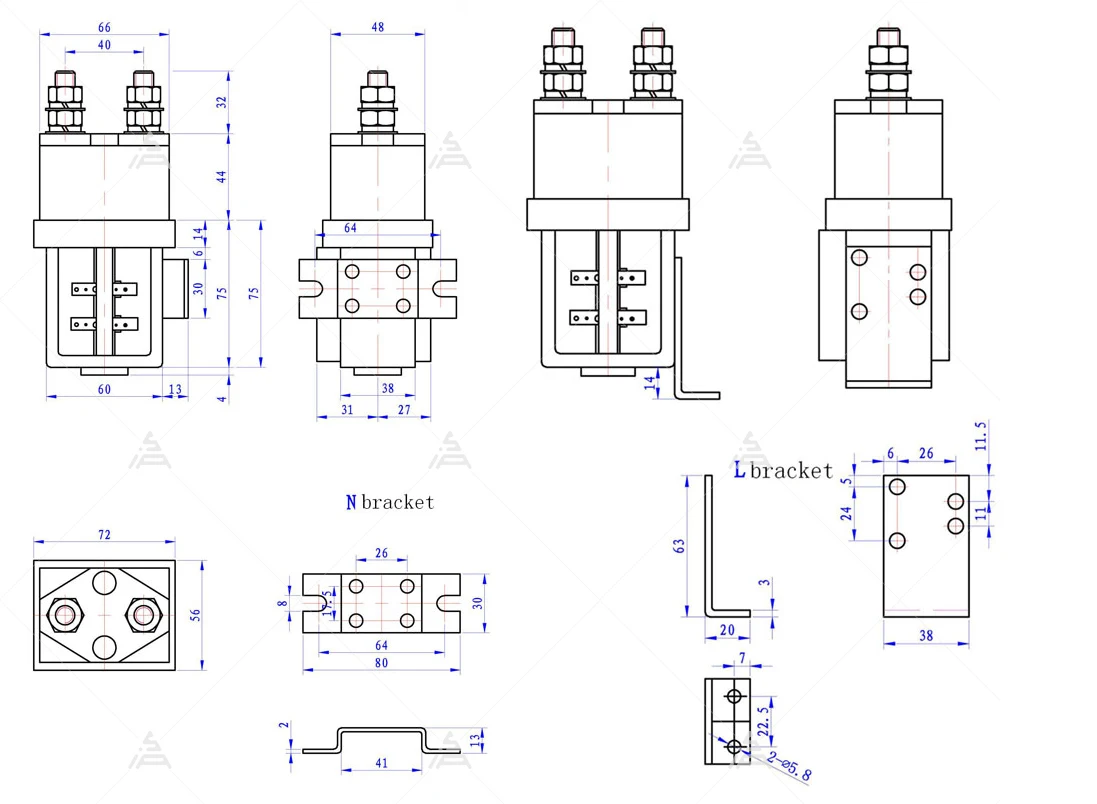

Drawing
