SiAECOSYS QSMOTOR QS165 V2 5000W 72V 35H Encoder PMSM Mid Drive Motor Kits with ND72490B 270A 490A Encoder Controller

For 165 5000W motor powertrain kits, it could be used for electric motorcycle, which could be 72V 90KPH.

e.g. Similar Light bee

E-motorcycle weight, approx 80kg+1*70kg

Speed: peak 90km/h

Gear ratio: 1:4.77

Climbing slope: 20°@10kph@150kg@60s

Tire: 100/70-19

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

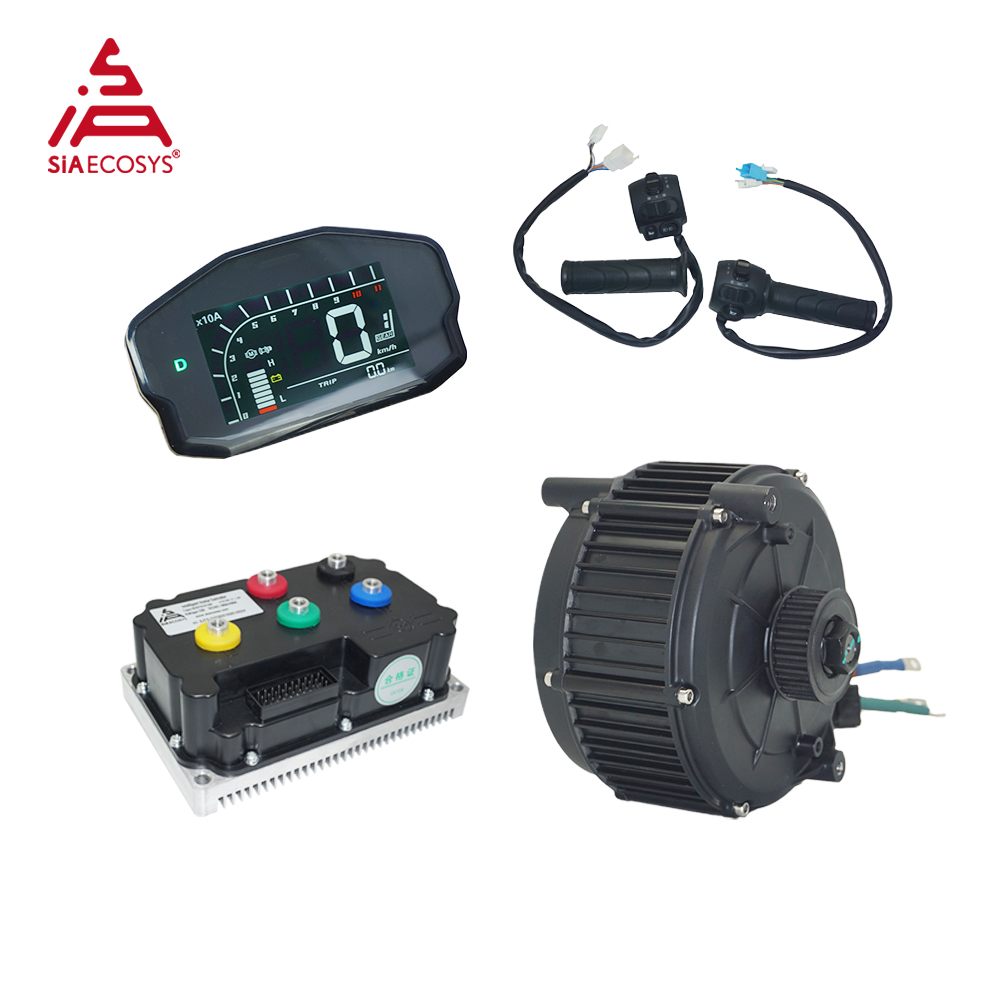

One set including below kit

1.1pcs X QS 165 V2 5000W Encoder Mid Drive Motor

2.1pcs X ND72490B Encoder Controller with USB cable

3.1pcs X DKD speedometer

4.1pcs X YY V3 throttle

 Product Description

1. QS 165 V2 5000W Encoder Mid Drive Motor

Comparison of 165 V2 encoder and 165 V1 encoder

Dimension Drawing:

Test report:

With ND72490B encoder controller 60V

72V

Test Map

Drawing:

Harness Definition

Bluetooth adapter

USB Cable & Software Interface

3. DKD LCD Display

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.

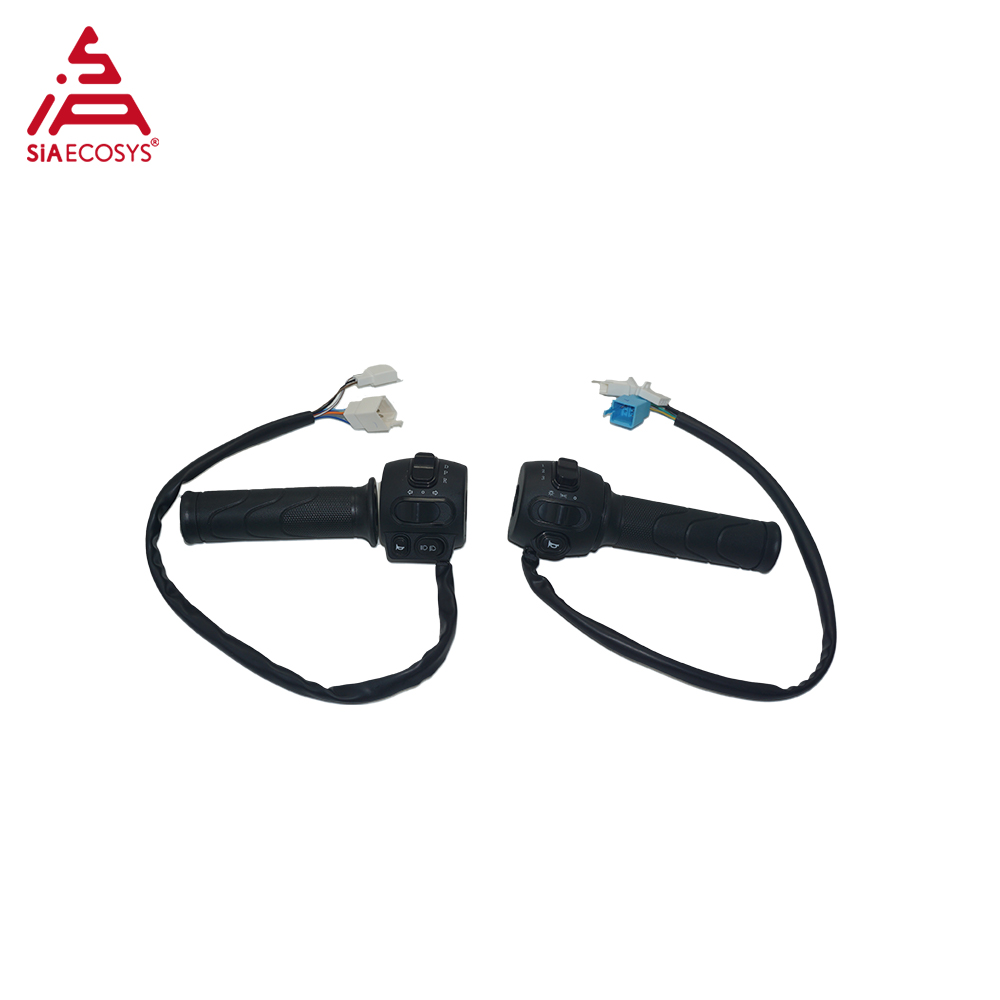

4. YYV3 Throttle

 Application for QSMOTOR 165 5KW V2 Mid drive motor
