SiAECOSYS QSMOTOR 12inch 2000W 72V 65kph Hub Motor with EM72100 controller and kits for Scooter

$415.00

Official Price:$415.00/pcs
N.W.:18.5kgs
G.W.:19.06kgs
Dimension:43cm*43cm*34cm
Production Period:10~12 working days


SiAECOSYS QSMOTOR 12inch 2000W 72V 65kph Hub Motor with EM72100 controller and kits for Scooter

For 2000W motor kits, it could be used for Electric Scooter, which could be 72V 65KPH.

e.g. Electric Scooter

Weight, approx 100kg+80 *2kg

Speed: Max 65km/h

Climbing slope: 15degree@260kg

Tire: 120/70-12

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat/What’s APP: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

One set including below kit

1. 1pc X QSMOTOR 12×7.5inch 1500W V1.12 electric wheel hub motor

2. 1pc X EM50SP sine wave motor controller with standard CAN-BUS

3. 1pc X DKD LCD speedometer with standard CAN-BUS

4. 1pc X Z6 throttle with combination switch

 Product Description

1. QSMOTOR 12X3.5inch 2000W V1.12 Electric Scooter Hub Motor

Dimension Drawing:

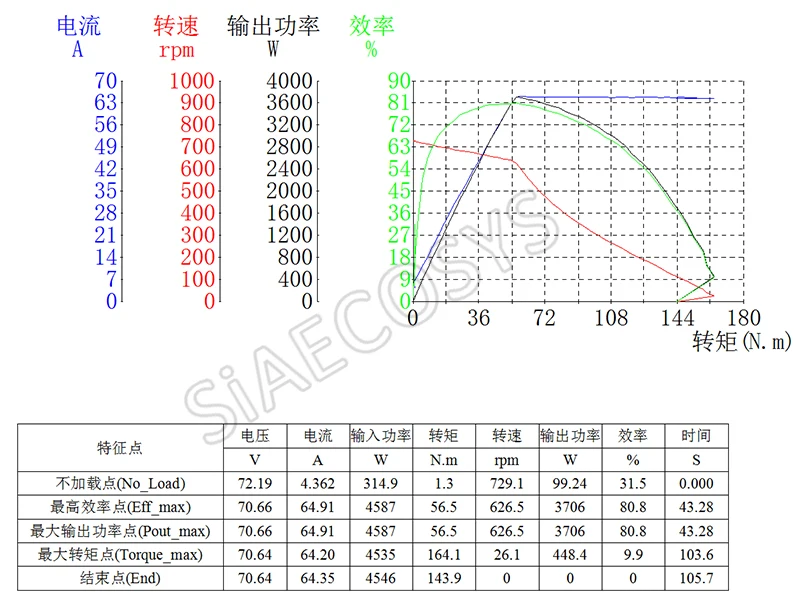

Test Report

2. EM100SP sine wave motor controller with standard CAN-BUS

Dimension Drawing

Controller Software Interface(PC)

Adapter Cable

3. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with CHIFENG controller well.

Application:

EV Your Life!

Additional information

Weight 19.06 kg
Dimensions 43 × 43 × 34 cm
