SiAECOSYS QSMOTOR 10×2.15inch 205 3000W 60V 80kph Hub Motor with SIAYQ72120 Controller and Kits for Electric Scooter

$202.00

Official Price:$524.61/pcs
N.W.:14.3kgs
G.W.:14.82kgs
Dimension:34cm*34cm*33cm
Production Period:10~12 working days


SiAECOSYS QSMOTOR 10×2.15inch 205 3000W 60V 80kph Hub Motor with SIAYQ72120 controller and kits for Electric Scooter

For 3000W motor kits, it could be used for Electric Scooter, which could be 60V 80szKPH.

e.g. Electric Scooter

Weight, approx 100kg+70 kg

Speed: peak 80km/h

Climbing slope: 15 degree@170kg

Tire:  10-3.0

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

One set including below kit

Combo 1

1.1pc X QSMOTOR 10X2.15inch 205 3000W V3 electric wheel hub motor Disc Brake Design (exclude disc brake rotor)

2.1pc X Fardriver SIAYQ72120 controller

3. 1pc X USB cable for Fardriver controller

4. 1pc X CT-22 speedometer

5. 1pc X  Throttle with 3 speed slide switch

6. 1pc X 12V 10A DC-DC Converter

Combo 2

1.1pc X QSMOTOR 10X2.15inch 205 3000W V3 electric wheel hub motor Drum Brake Design

2.1pc X Fardriver SIAYQ72120 controller

3. 1pc X USB cable for Fardriver controller

4.1pc X CT-22 speedometer

5.1pc X  Throttle with 3 speed slide switch

6.1pc X 12V 10A DC-DC Converter

 Product Description

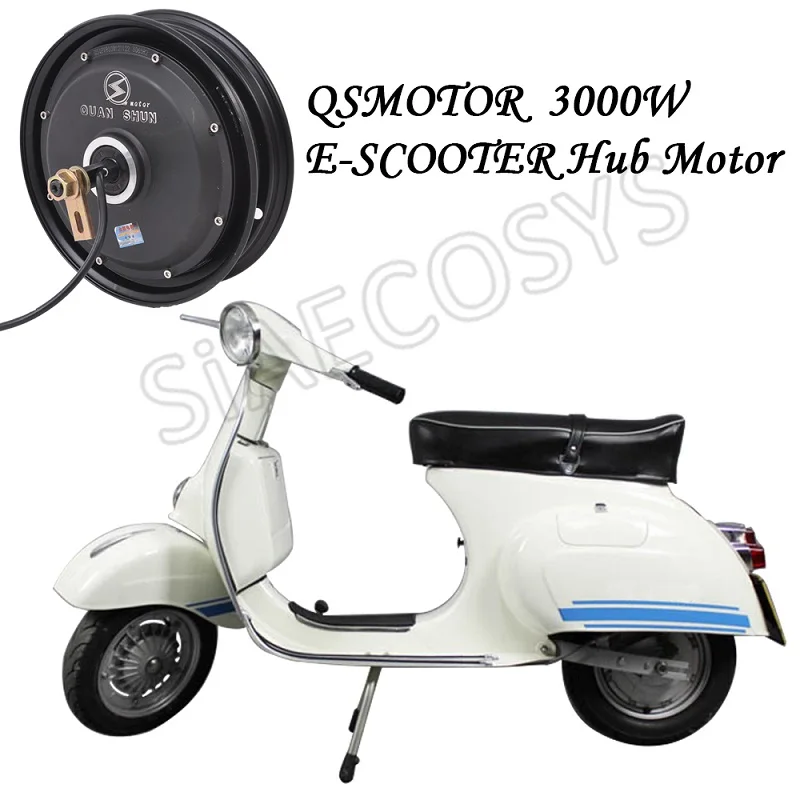

1. QSMOTOR 10X2.15inch 3000W V3 Electric Scooter Hub Motor

Dimension Drawing:

Test Report

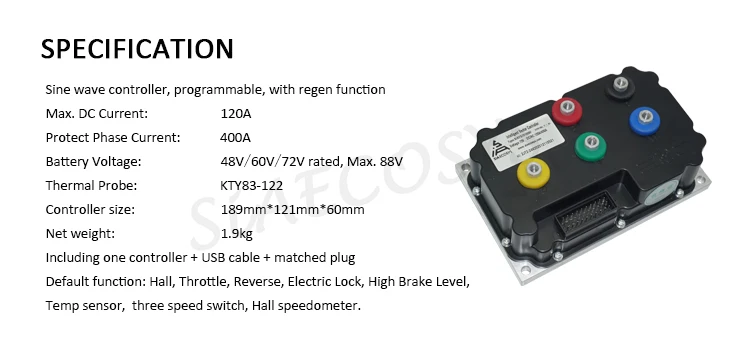

2. Fardriver SIAYQ72120 sine wave motor controller

SIAYQ72120 is new controller with stable performance.
Compare to SVMC72150, the size is much smaller, and more cost effective with waterproofing grade IP67, suit for 2-3kw motors.
Equal to FARDRIVE ND72330
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.

Dimension Drawing:

Funcation wiring cable

3. CT-22 programable LCD speedometer

4. Throttle with 3 speed slide switch

4. DC-DC converter

Application:

EV Your Life!

Additional information

Weight 10.00 kg
Dimensions 31 × 31 × 32.5 cm
