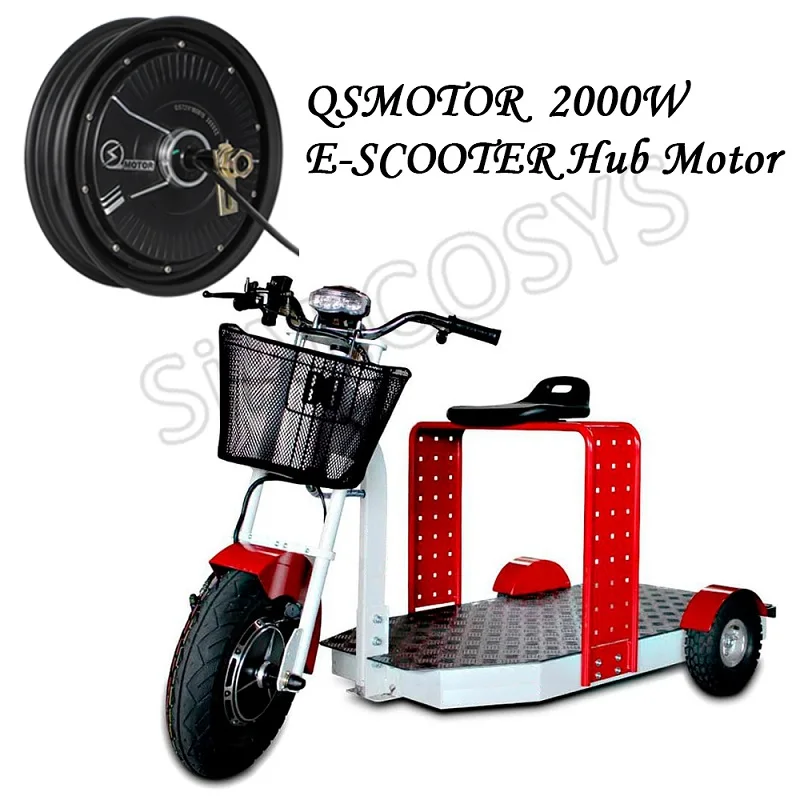

SiAECOSYS QSMOTOR 10×2.15inch 2000W 48V 35kph Hub Motor with EM50SP Controller and Kits for High Torque Electric Scooter

$202.00

Official Price:$304.00/pcs
N.W.:10.5kgs
G.W.:11.0kgs
Dimension:31cm*31cm*31cm
Production Period:10~12 working days


SiAECOSYS QSMOTOR 10×2.15inch 2000W 48V 35kph Hub Motor with EM50SP Controller and Kits for High Torque Electric Scooter

For 2000W motor kits, it could be used for low speed high torque electric scooter tricycle, which could be 48V 35KPH.

e.g. Electric Scooter Tricycle

Weight, approx 100kg+53kg

Speed: 35km/h

Climbing slope: 16 degree@153kg

Tire: 90/90-10 or 120/70-10 inch

Battery: 48V24Ah

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat/What’s APP: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

One set including below kit

1. 1pcs X QSMOTOR 10×2.15inch 2000W 212 V1.12 Electric Hub Motor

2. 1pcs X EM50SP sine wave motor controller with standard CAN-BUS

3. 1pcs X DKD LCD speedometer with CAN (disable CAN as default)

4. 1pcs X Z6 throttle with combination switch

 Product Description

1. QSMOTOR 10X2.15inch 2000W 212 V1.12 Electric Scooter Hub Motor

Dimension Drawing:

Disc brake version:

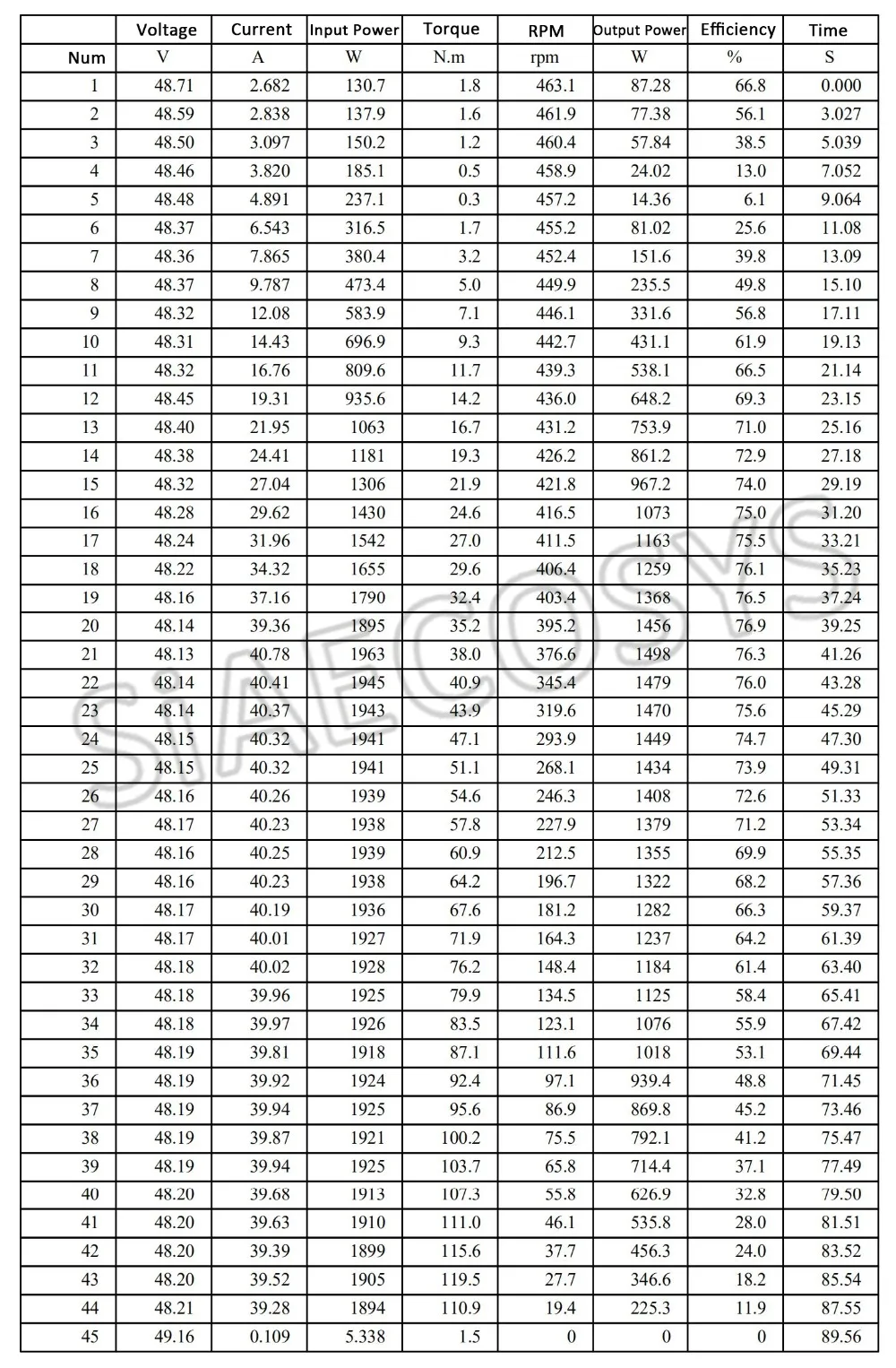

Test Report

2. EM50SP sinusoidal wave BLDC motor controller, with CAN BUS

Dimension Drawing

Controller Software Interface(PC)

Adapter Cable

3. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with CHIFENG controller well.

Application:

EV Your Life!

Additional information

Weight 10.00 kg
Dimensions 31 × 31 × 32.5 cm
