SIAECOSYS/FarDriver SIAYQ7290 Sine Wave Controller

Original price was: $143.80.Current price is: $132.30.

Official Price: 143.8USD/PCS
N.W.:2.0kgs
G.W.:2.2kgs
Dimension:20cm*14cm*8cm
Production Period:10~12 working days

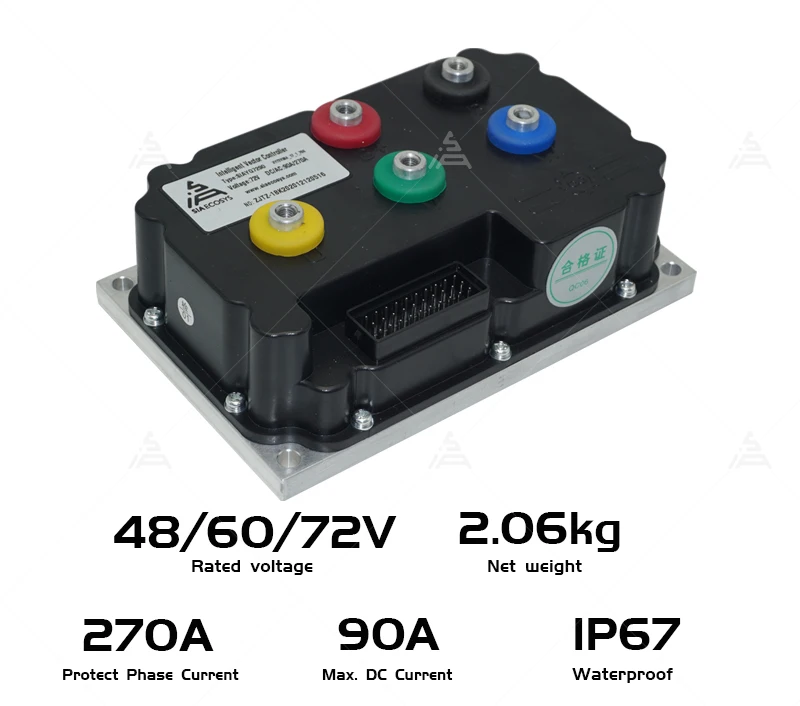

Far Driver SIAYQ7290 Controller 72V 90A Programmable Controller for 3kw QS Motor

SIAYQ series controlleris sine wave type controller, which is brushless DC controller with self-learning function.

Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

Pls note that the FarDriver controller defaults to the Hall state, which cannot match the speedometer in the one-line state, like the DKD speedometer.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don’t pay first, then we could adjust the price.

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

One set including below kits

1.1pcs X SIAYQ7290 sine wave controller

2.1pcs X USB cable

 Product Description

SIAYQ7290 is new controller. Compare to SVMC72150, the size is much smaller, and more cost effective with waterproofing grade IP67,, suit for 2-3kw motors.

It’s hall version (As default) which suit with hall motors.

It could also support encoders, please check with sales.

1. Genearlly Spec:

Dimension Drawing:

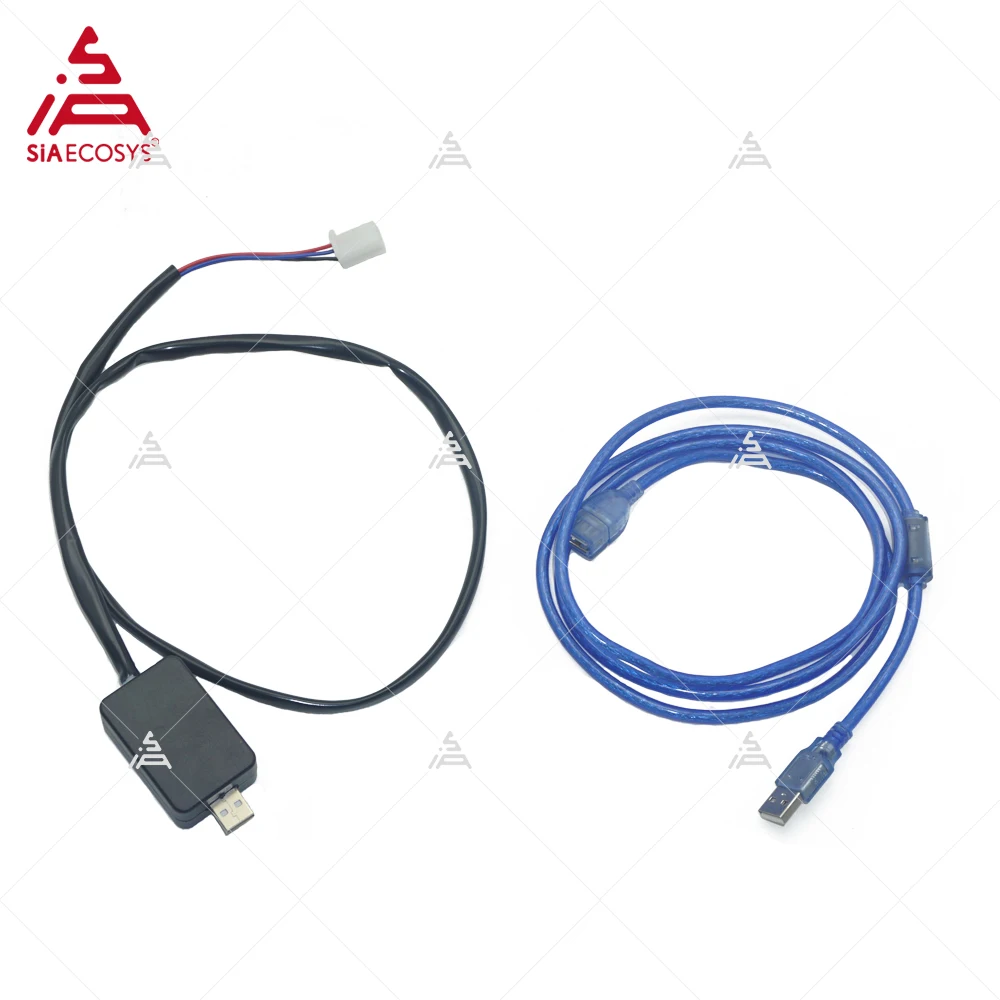

2. USB Cable:

3. Software interface (PC):

4. Wiring diagram:

The wiring support one-line and hallanalog speedometercommunication, which work with hall speedometer.
There is also CAN BUS version, please contact with sales for details.

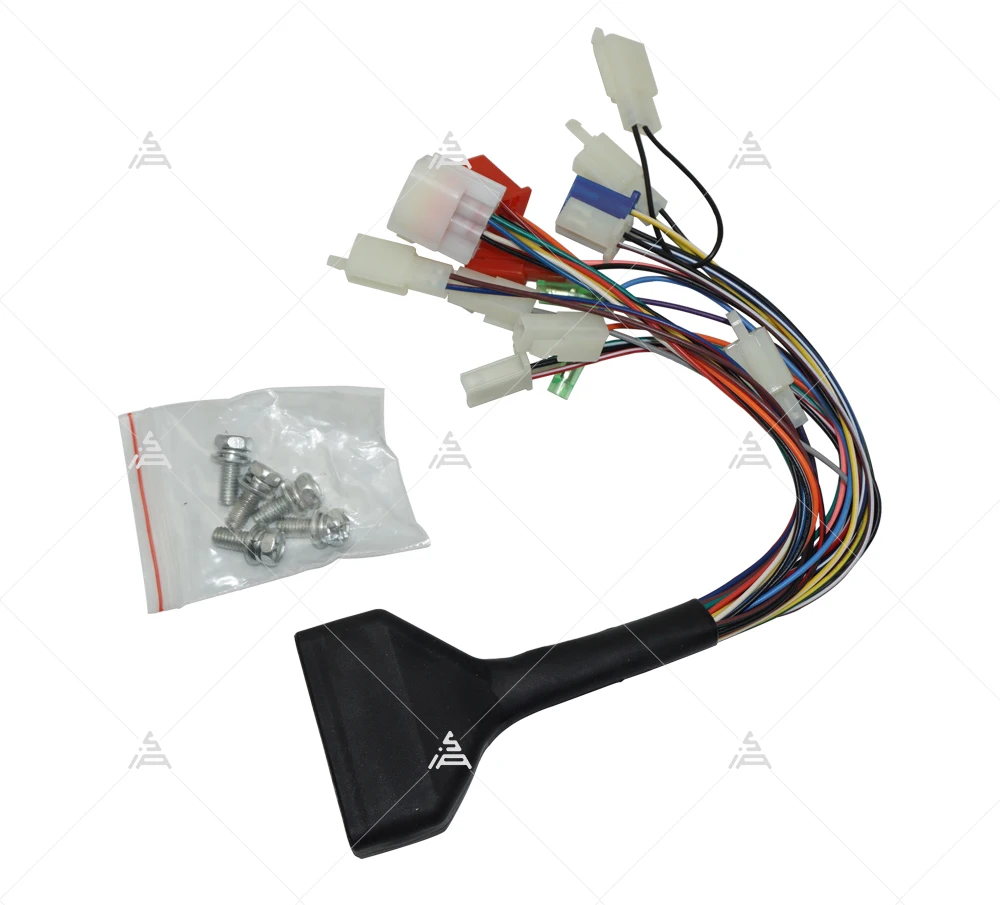

5. Adapter Cable

EV Your Life!

Additional information

Weight 1.5 kg
Dimensions 20 × 14 × 8 cm
