Sale!

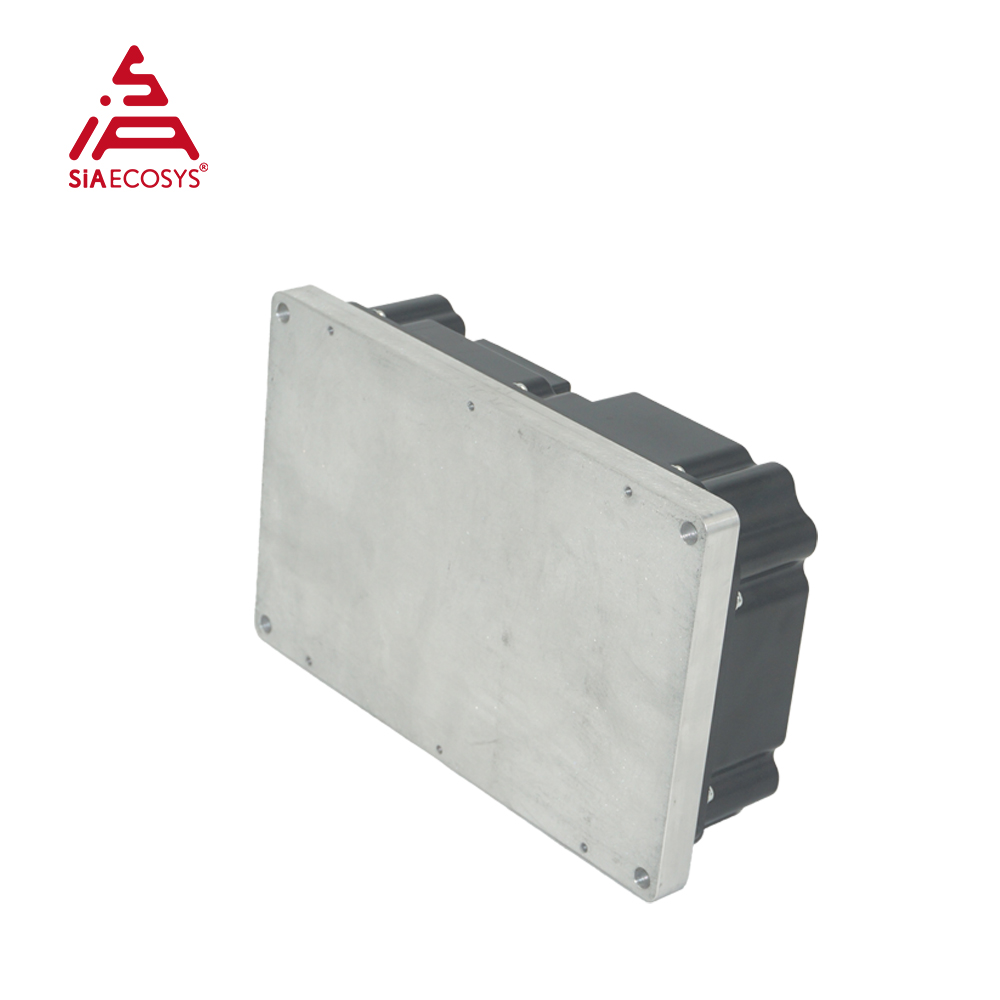

SIAECOSYS/FarDriver ND84850 Sine Wave Controller

Original price was: $560.10.Current price is: $515.29.

Official Price: 560.1USD/PCS
N.W.:2.0kgs
G.W.:2.2kgs
Dimension:20cm*14cm*8cm
Production Period:10~12 working days


Tags
Categories

FarDriver ND84850 BLDC 450A 6000-8000W Electric Motorcycle Controller

FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function.
Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
Pls note that the FarDriver controller defaults to the Hall state, which cannot match the speedometer in the one-line state, like the DKD speedometer.
  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

 Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

One set including below kits

1.1pcs X ND84850 sine wave controller

2.1pcs X Bluetooth adapter

 Product Description

ND84850 is sine wave controller. Which is more cost effective with waterproofing grade IP67, suit for 6-8kw motors.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.

1. Genearlly Spec:

Dimension Drawing

2. Bluetooth Adapter

3. Software interface (APP):

4. Wiring diagram:

The wiring support one-line and hallanalog speedometercommunication, which work with hall speedometer.
There is also CAN BUS version, please contact with sales for details.



5. Adapter Cable

EV Your Life!

Additional information

Weight 2.0 kg
Dimensions 20 × 14 × 8 cm
