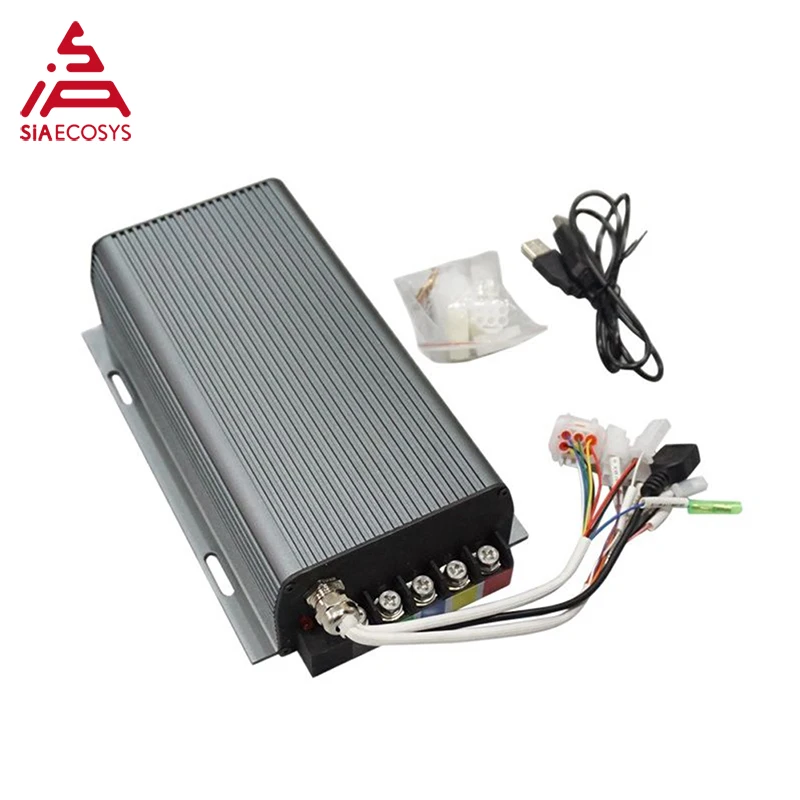

Sabvoton Controller SVMC72200 72V 200A E-Bike Controller
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
Key Features
1). Cheap Cost
2). Can match with almost brushless DC motor
3). Programmable
4). Sine wave without noise
Product Description
1). sine wave controller, programmable, with regen function
2). DC Current Limit: 200A
3). Max. Phase Current: 450A
4). Battery Voltage: 48V-72V rated, Max. 90V
5). Thermic Probe: KTY83-122
6). Including one controller + USB convertor cable + matched plug
7). controller size: 283mm*147mm*62mm
8). Net weight: 3.0kg
9). Default including bluetooth adapter.
10). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer.
11). Special functions: Reverse, Cruise, Three speed Button, Waterproof, Anti-theft
Notes:
1).We have updated the 0-5v e-brake function.
Old: It should be press the brake switch then can achieve 0-5v e-brake funtion.
Update: You can achieve 0-5v e-brake function without press the brake switch.
2). For no lock type controller, there is warranty service,but we could offer our suggestions for you.
3). CA function not support anymore.You could customize the controller according to our drawing.
4). Pls. make sure all the connection is correct before power on.
Drawing
Sabvoton Controller Software Interface
Pin Definition
0-5V e-brake Pin Definition
Red: brake +5v
Brown: brake signal
Black: brake negative
Three Speed Pin Definition
Pink: high speed
Black: GND
Transparent: low speed
High brake Pin Definition
Purple: high brake
Hall Pin Definition
Red: Hall +5v
Yellow-white: temp sensor
Black: Hall negative
Yellow: Hall signal(U)
Blue: Hall signal(W)
Green: Hall signal(V)
Ignition Definition
Orange: Ignition
Hall speedometer Definition
Dark blue: Hall speedometer
Notes:
1. All RTN pins are internally connected.
2. Meter function is to copy either of hall sensors.
3. Above pin definition is for classical type controller.
Pls. contact with sales first if you don’t know how to connect the controller with motor and other parts.
