Sale!

QSMOTOR New QS268 9000W 12*3.0inch V5 72V 130kph Hot Sale BLDC Hub Motor with ND72850 Controller Kits for Electric Motorcycle

Original price was: $1,214.20.Current price is: $1,165.63.

Official Price:$1214.2/pcs
N.W.:31.0kgs
G.W.:31.5kgs
Dimension:42cm*42cm*43cm
Production Period:10~12 working days


QSMOTOR New QS 268 9000W 12*3.0inch V5 72V 130kph Hot Sale BLDC Hub Motor with ND72850 Controller Kits for Electric Motorcycle

For 268 E-Motorcycle hub motor, it could be used for electric motorcycle, high power electric motorcycle.

e.g. Electric high power motorcycle

E-bike weight, approx 220kg+80kg

Tire: 110/70-12

Speed: 72V 130km/h

Battery: 72V50h lithium battery

Range: 110-130kph

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

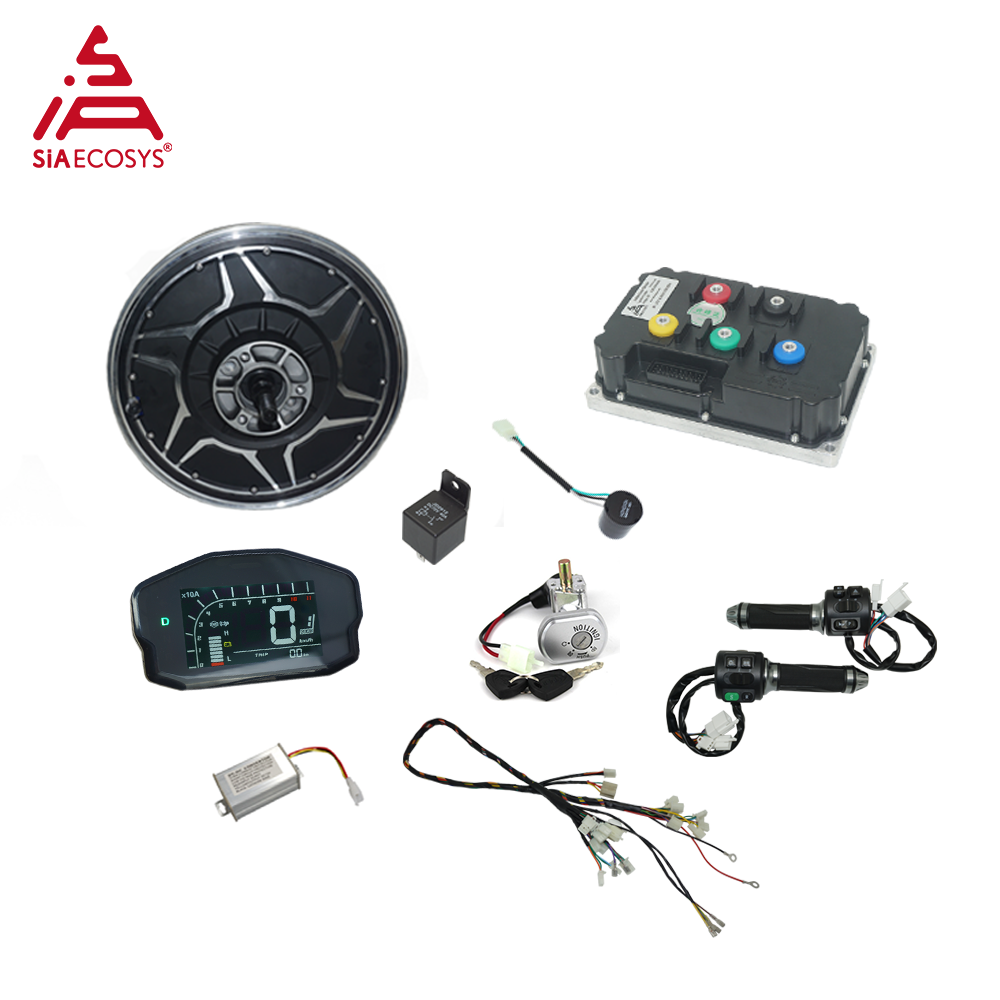

One set including below kit

Combo 1

1.1pcs X QS268 9000W 12*3.0inch V5 BLDC Hub Motor

2.1pcs X ND72850 Controller

3.1pcs X USB Cable for ND72850

4.1pcs X DKD LCD speedometer

5.1pcs X Z6 throttle with combination switch

6.1pcs X Vehicle wiring harness for Fardriver(with 1pcs 4p 72V 40A relay, 1pcs flasher, 1pcs 72V to 12V 10A DC converter, 1pcs Electric Lock Ignition)

Combo 2

1.1pcs X QS268 9000W 12*3.0inch V5 BLDC Hub Motor

2.1pcs X ND72850 Controller

3.1pcs X BT for ND72850

4.1pcs X DKD LCD speedometer

5.1pcs X Z6 throttle with combination switch

6.1pcs X Vehicle wiring harness for Fardriver(with 1pcs 4p 72V 40A relay, 1pcs flasher, 1pcs 72V to 12V 10A DC converter, 1pcs Electric Lock Ignition)

 Product Description

1. QSMOTOR 12×3.0 9000W V5 E-Motorcycle spoke hub motor

Dimension Drawing:

Test Report(Test with ND72850):
2. ND72850 Sine Wave Motor Controller
ND72850 is sine wave controller. Which is more cost effective with waterproofing grade IP67, suit for 6-8kw motors, the peak voltage for it is 88V.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.

Dimension drawing:

Adapter cable

Software Interface(PC)(APP)

USB Cable & Bluetooth adapter

3. DKD LCD speedometer

It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.

4. Z6 Throttle with combination switches

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Inner diameter of throttle: 22mm

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

5. Vehicle Wiring Harness



 Application for QSMOTOR 268 9000W V5 E-Motorcycle Hub Motor

EV Your Life!

Additional information

Weight 31 kg
Dimensions 42 × 42 × 43 cm
