QSJ138A-70 Motor with EM150-2SP 72V Kit for Electric Go-kart
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

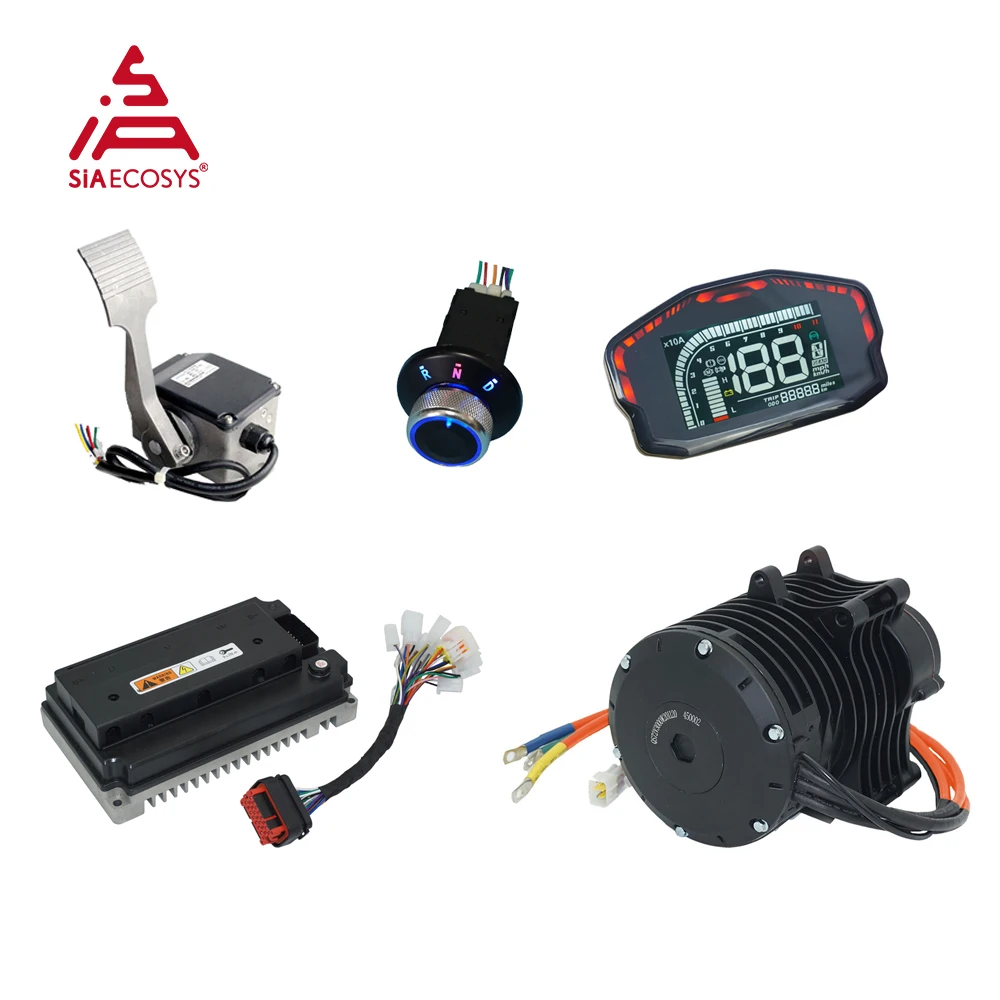

One set including below items
1.1pc X QS 138 3kW Mid drive motor with 15T 428 sprocket adapter
2.1pcs X EM150-2SP sine wave motor controller with standard CAN-BUS
3.1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4.1pcs X Pedal throttle
5.1pcs X DNR gear
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1. QSJ138A-70 3000W Mid Drive Motor:
Drawing
Test Report
2.EM150-2SP sine wave motor controller with standard CAN-BUS
There is latest new hardware controller, it support 1st 2nd 3rd speed gear, sport mode, reverse mode (no Parking mode), soft start as default.
Drawing
3.DKD LCD speedometer, ,adjustable,can-bus(optional, LIN as default)
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.
4. 0.8-4.2V Electric Car Throttle Pedal
Here is detailed information for JKH Foot Throttle.
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0.8V-4.2V
Default: three wires out(cannot connect with switch), 5v input voltage(depends on controller design, for our matched controllers, you can choose 4.2v input voltage), 0.8-4.2v output voltage.
5. DNR Device
EV Your Life!
