QS273 13 inch 8000W V4 96V Electric Scooter Hub Motor Kit with Fardriver Controller ND96850
For 273 8000W hub motor powertrain kits, it could be used for electric motorcycle, which could be 96V 140KPH.
e.g. E-Motorcycle
E-motorcycle weight, approx 200kg+80kg
Speed: continuous 140km/h
Climbing slope: 15°50kph@280kg
Tire: 70/130-13
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
One kit including below items:
1.1pc X QS273 13*3.5inch 8000W V4 hub motor
2.1pcs X ND96850 sine wave motor controller
3.1pcs X Bluetooth adapter
4.1pcs X CT-22 programable LCD speedometer
5.1pcs X Z6 throttle with combination switch
Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking
Product Description
1. QS273 13*3.5inch 8000W V4 Hub Motor
Drawing
Test Report
2. ND96850 sine wave controller
ND series controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
3. CT-22 programable LCD speedometer
①Speedometer Size: 185mm*90mm*80mm
②Net weight: 0.35kg
③Work voltage: 48v-120v rated
④Hall
The speedometer can display ECO, NRM,SPT, Light.

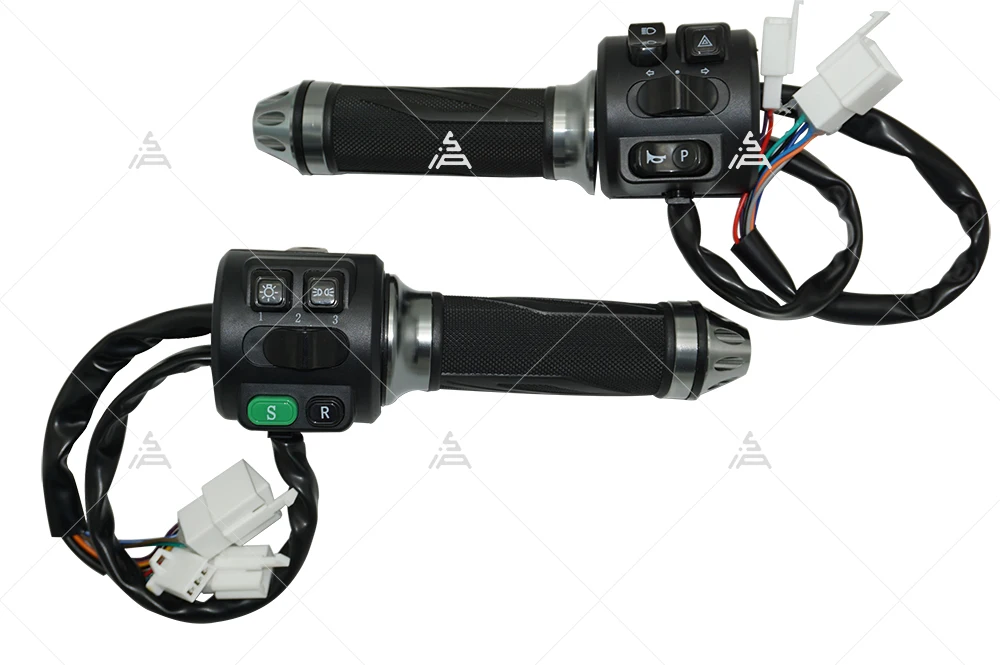

4. Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
EV Your Life!
