QS260 5000W V4 12 inch Racing Electric Scooter Hub Motor Kit
For 12 inch hub motor, it could be used for electric scooter, electric motorcycle, electric tricycle and so on.
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

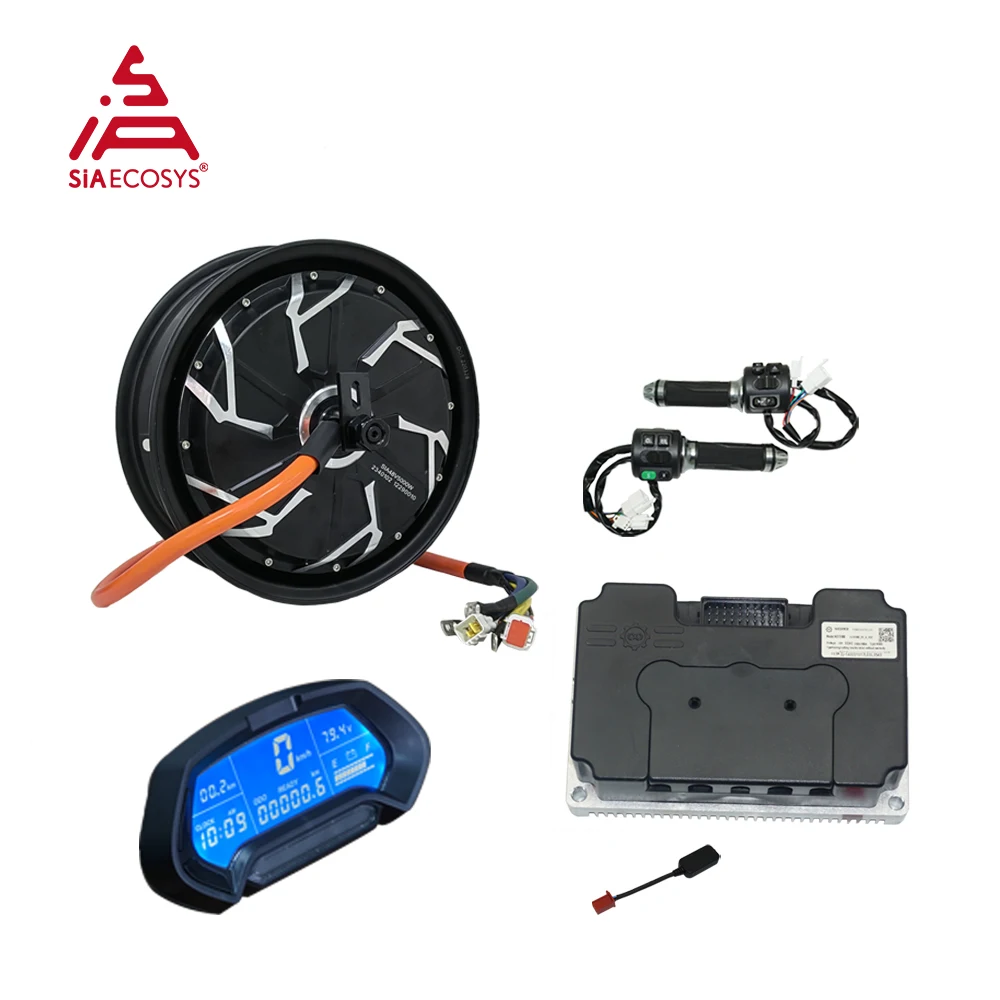

One set including below items
Combo 1: Black Cover+ND72680 (Official Price: $729.47)
1. 1pcs X QSMOTOR 12*3.5inch 260 5000W V4 E-motorcycle hub motor
2. 1pcs X ND72680 controller+Bluetooth Adapter
3. 1pcs X CT-22 Speedometer
4. 1pcs X Z6 Throttle
Combo 2: Race Cover+ND72680 (Official Price: $776.53)
1. 1pcs X QSMOTOR1 2*3.5inch 260 5000W V4 E-motorcycle hub motorwith #10 Race Side Cover
2. 1pcs X ND72680 controller+Bluetooth Adapter
3. 1pcs X CT-22 Speedometer
4. 1pcs X Z6 Throttle
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1. QS260 12*3.5inch 5000W V4 Hub Motor
Racing Type Cover Option
Drawing
Test Report
260 12*3.5inch 5000W V4 Hub Motor with ND72680 for reference
2. Fardriver Controller ND72680
ND72680 is sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.
For ND72680, the peak voltage is 88V
It’s hall version (as default) which suit with hall motors.
Spec
Drawing
Adapter
Bluetooth
Software interface (APP)
3. CT22 Speedometer
Key Features
Both CAN and LIN communication are supported
Product Description
1. Speedometer Size: 185mm*90mm*80mm
2. Net weight: 0.35kg
3. Work voltage: 48v-120v rated
4. Hall
PS. There is no letter on speedometer buttons now.
4. Z6 Throttle
Basic Parameters
Color: black
Rated operating voltage: DC+5V
Current: DC 10mA
Main material: ABS PVC
Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N
Torsional strength: ≥ 9N.m
Output voltage: 0.8 ~ 4.2V
Service life: ≥100,000 times
Waterproof rating: IPX6
Number of core cable:5
Type of switch: half twist, with meter and key
Inner diameter of throttle: 22mm
Function
With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
Application
