QS205 3000W Electric Car Hub Motor Conversion Kit with Rim
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
One kit including below items:
1. 2PCS X QS205 3000W V3 Electric Car Hub Motor
2. 2PSC X 13*4.0inch Wheel Rim
3. 2PCS X EM100SP V5.0 CAN Bus Votol Controller with USB Cable
4. 2PCS X 220mm Disc Brake Plate
Product Description
1. QS 205 3000W V3 Electric Car Hub Motor
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Single axle without moped rim (Integrated)
CB: 60mm, PCD: 4*100mm
Magnet Height: 50mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 3000W
Work Voltage range: 48V-96V, will be 72V as default.
Max Torque approx 181.5N.m
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency:Approx 88%
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc brake, PCD: 3*80mm, CB:58MM
Dual Halls with waterproof connectors(One for using, one for spare)
12mm axle flats
10mm² Cross Section of Phase Wire(not including insulation layer)
Waterproof Grade: IP65
Color: Black (As default)
N.W/ G.W: 16.0kg/17kg
Drawing

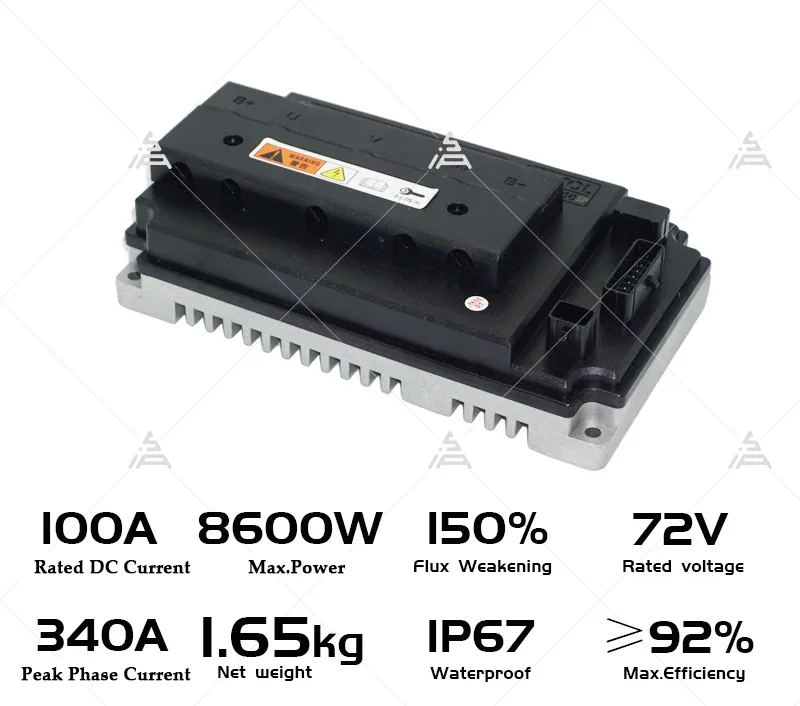

2. Votol Controller EM100SP-V5.0
Spec
Drawing
Programmable USB Cable

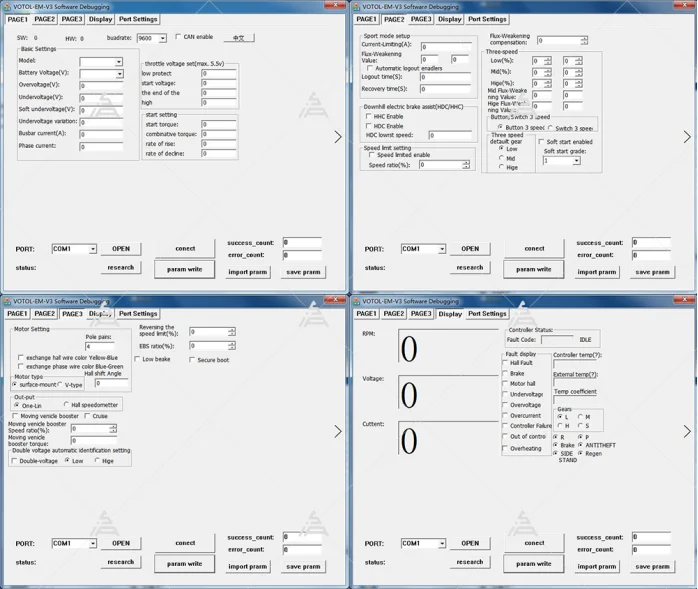

Software interface（PC）
Wiring Diagram
For the detail of wiring manual, pls contact our online service.

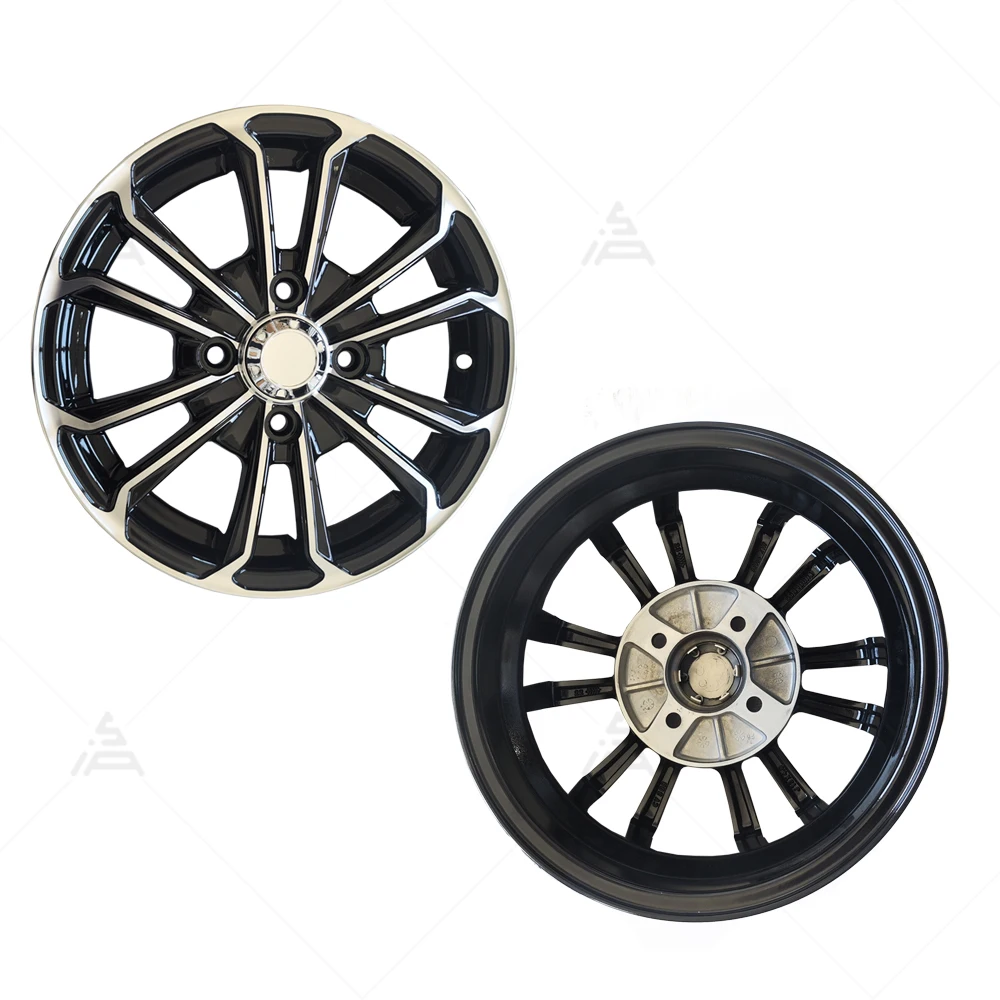

3. 13*4.0inch Wheel Rim
4. 220mm Disc Brake Plate
EV Your Life!
