QS Motor Kit QSD138A-70 ND72530 Electric Motor Kit

Original price was: $624.91.Current price is: $561.44.

Official Price:$624.91/pcs
N.W.:19.0kgs
G.W.:19.3kgs
Dimension:42cm*32cm*32cm
Production Period:10~12 working days


QS Motor Kit QSD138A-70 ND72530 Electric Motor Kit for Electric Motorcycle

For 138 70H motor powertrain kits, it could be used for electric motorcycle, which could be 72V 100KPH.
e.g. Dirt bike
E-motorcycle weight, approx 130kg+2*80kg
Speed: peak 110km/h
Gear ratio: 1:3.43
Climbing slope: 15°40kph@208kg
Tire: 130/70-17

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

QS Motor Kit QSD138A-70 ND72530 Electric Motor Kit
QS Motor Kit QSD138A-70 ND72530 Electric Motor Kit

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

 What’s app/We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

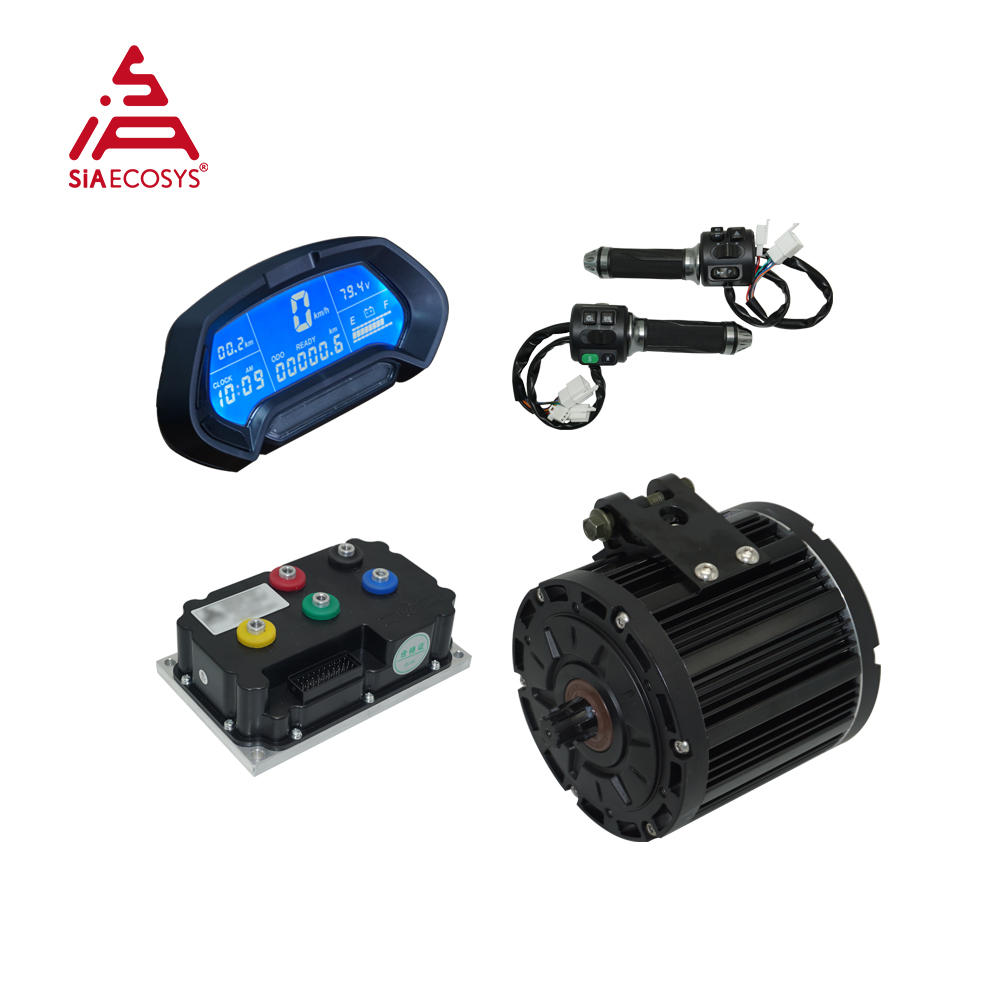

One set including below kit

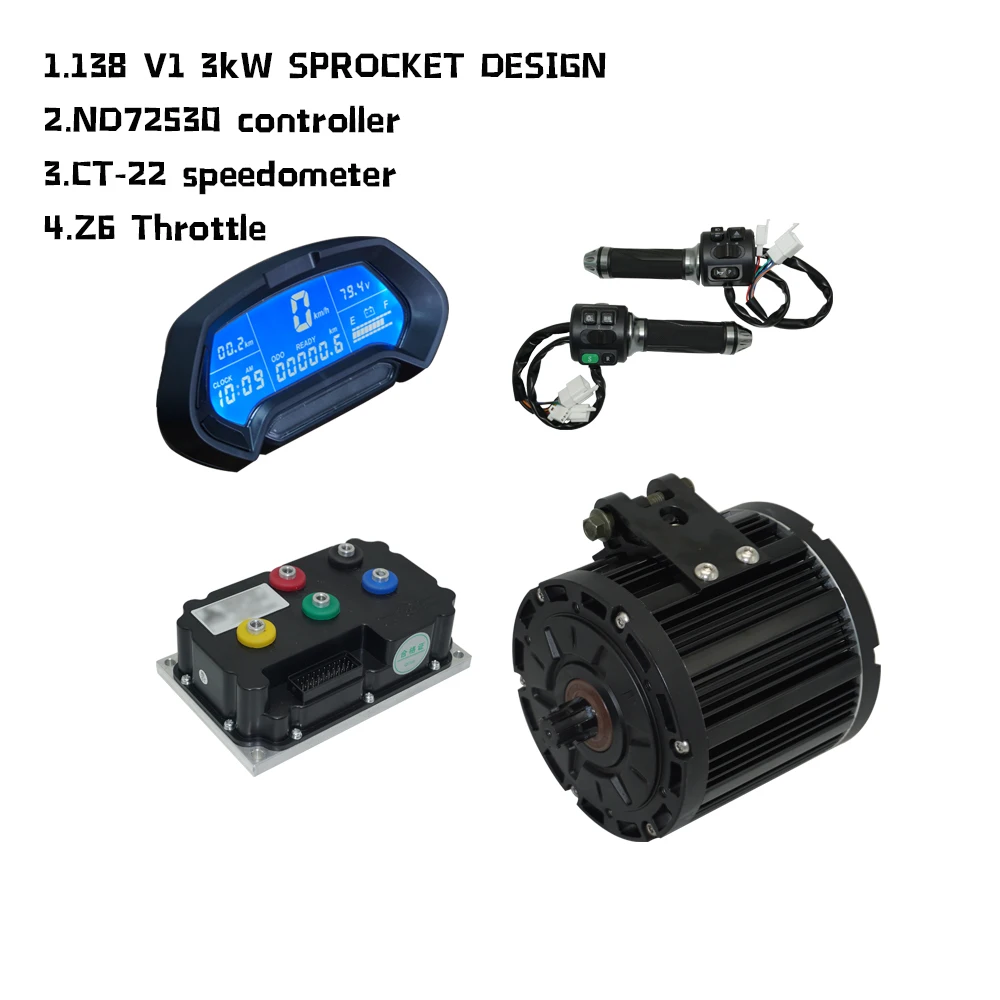

Combo 1.

1.1pc X QSD138A-70 V1 mid drive motor with sprocket design
2.1pcs X ND72530 sine wave motor controller
3.1pcs X Bluetooth adapter
4.1pcs X CT-22 speedometer
5.1pcs X Z6 throttle with combination switches

Combo 2.

1.1pc X QSD138A-70 V1 mid drive motor with belt design
2.1pcs X ND72530 sine wave motor controller
3.1pcs X Bluetooth adapter
4.1pcs X CT-22 speedometer
5.1pcs X Z6 throttle with combination switches

Combo 3.

1.1pc X QSD138A-70 V2 mid drive motor with sprocket design
2.1pcs X ND72530 sine wave motor controller
3.1pcs X Bluetooth adapter
4.1pcs X CT-22 speedometer
5.1pcs X Z6 throttle with combination switches

Combo 4.

1.1pc X QSD138A-70 V2 mid drive motor with belt design
2.1pcs X ND72530 sine wave motor controller
3.1pcs X Bluetooth adapter
4.1pcs X CT-22 speedometer
5.1pcs X Z6 throttle with combination switches

 Product Description

1. QSMOTOR 138 3000W V1 & V2 mid drive motor

Dimension Drawing:

QSD138A-70 V1

QSD138A-70 V2

Test Report:

Type(From left to right, Belt shaft version/Sprocket adapter version/Spline shaft version)

2. ND72530 sine wave motor controller

ND series controller is sine wave type controller, which is brushless DC controller with self-learning function.

Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

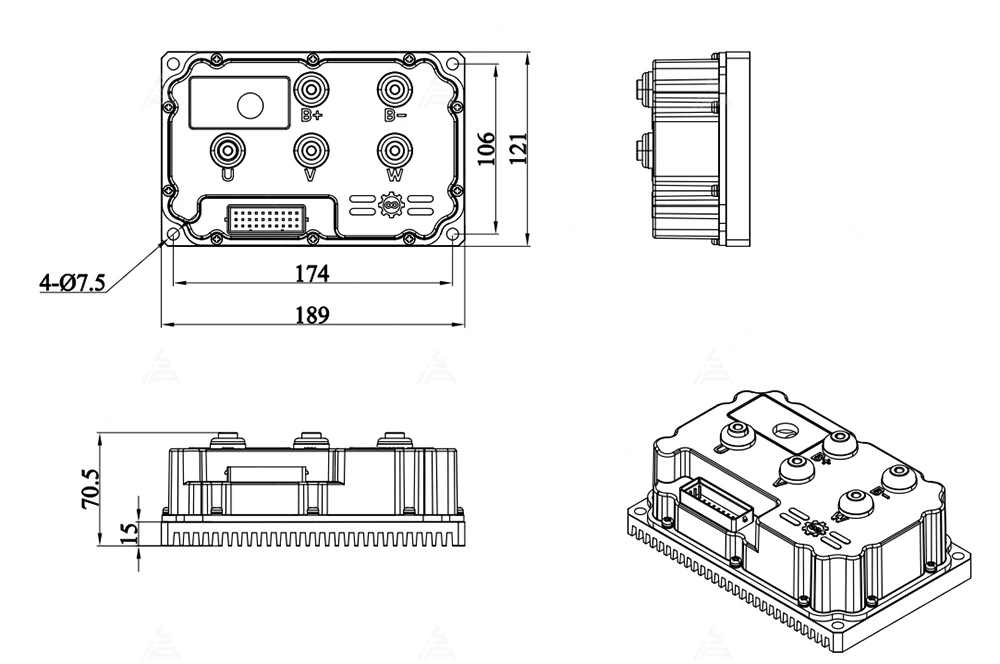

Dimension Drawing:

Controller Software Interface(APP)

Adapter Cable

Bluetooth Adapter

3. CT-22 speedometer

Key Feature

1. Speedometer Size: 185mm*90mm*80mm
2. Net Weight: 0.35kg
3. Work Voltage: 48v-120v rated

4. Z6 throttle with combination switches

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with controller well.

EV Your Life!

Additional information

Weight 19.3 kg
Dimensions 42 × 32 × 32 cm
