QS Motor 8000W QS273 50H V3 72V 120kph High Speed E-Motorcycle Spoke Hub Motor with ND72850 Controller Conversion Kit for Electric Motorcycle

For 273 spoke hub motor, the dropout is 200mm, it could be used for electric motorcycle, high power electric motorcycle.

For 200mm dropout 273 spoke hub motor, we can provide from 3000W-8000W.

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

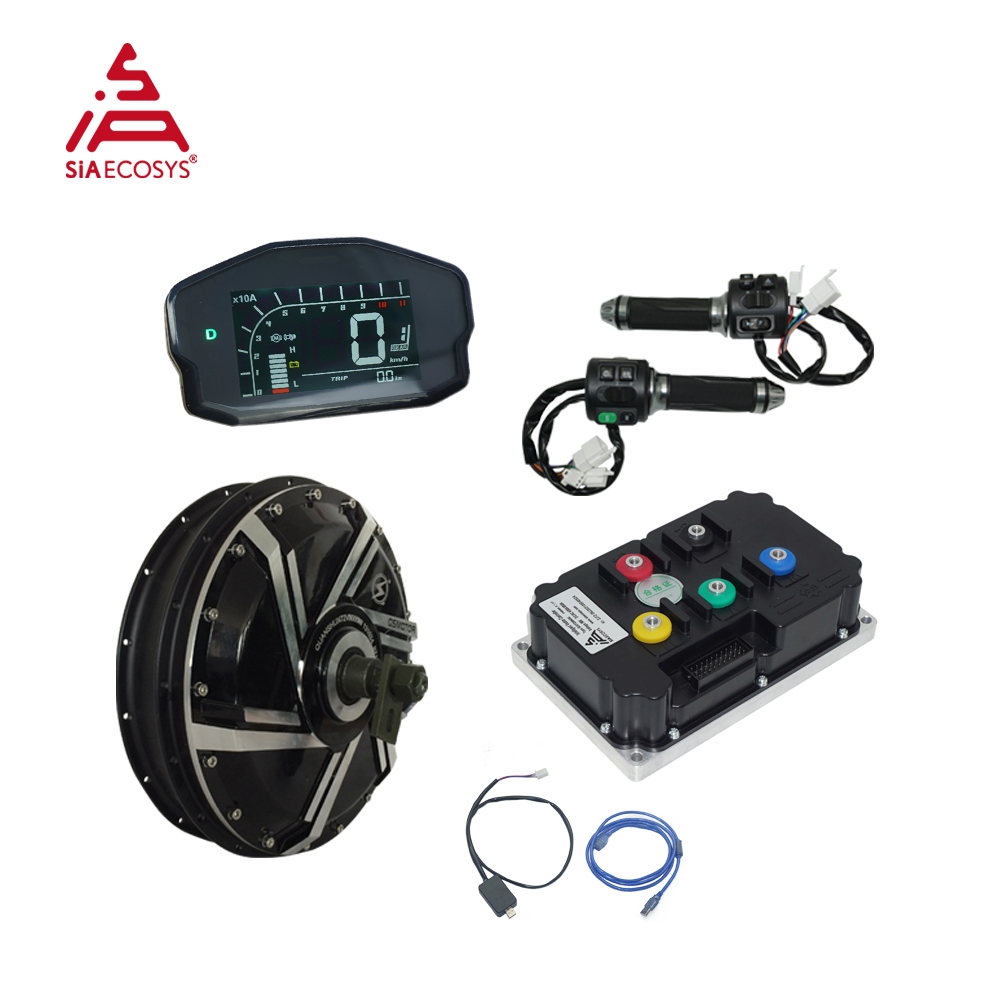

One set including below kit

1). 1pcs X QSMOTOR 273 8000W V3 E-motorcycle spoke hub motor

2). 1pcs X ND72580 controller with USB cable

3). 1pcs X DKD Speedometer

4). 1pcs X Z6 Throttle with Combination Switch

 Product Description

1. QSMOTOR 273 8000W V3 E-Motorcycle spoke hub motor

Dimension Drawing:

QS 273 200mm drop-outs e-motorcycle spoke hub motor

Performance Curve

For reference only

Drawing:

Funcation cable

USB Cable

Software Interface

3. DKD LCD Display

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.

4. Z6 Throttle with combination switches

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Inner diameter of throttle: 22mm

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

 Application for QSMOTOR 273 8000W V3 E-Motorcycle Hub Motor
