Sale!

QS Motor 8000W QS180 Mid Drive Motor Tricycle Kit With Fardriver Controller ND721200

Original price was: $1,460.90.Current price is: $1,402.46.

Official Price:$1460.9/pcs
N.W.:29.0kgs
G.W.:29.6kgs
Dimension:32cm*32cm*37cm
Production Period:10~12 working days


QS Motor 8000W QS180 Mid Drive Motor Tricycle Kit With Fardriver Controller ND721200

E.g. E-tricycle weight, about 900kg+1*80kg

A. Speed: max 72V60kph

Gear ratio: 1:8

Climbing slope: 15° @ 20kph @ 980kg @ 120s

B. Speed: max 72V90kph

Gear ratio:1:4

Climbing slope: 8° @ 10kph @ 980kg @ 10s

Tyre: 195/50-12(0.5317)

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

QS Motor 8000W QS180 Mid Drive Motor Tricycle Kit With Fardriver Controller ND721200
QS Motor 8000W QS180 Mid Drive Motor Tricycle Kit With Fardriver Controller ND721200

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893



 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

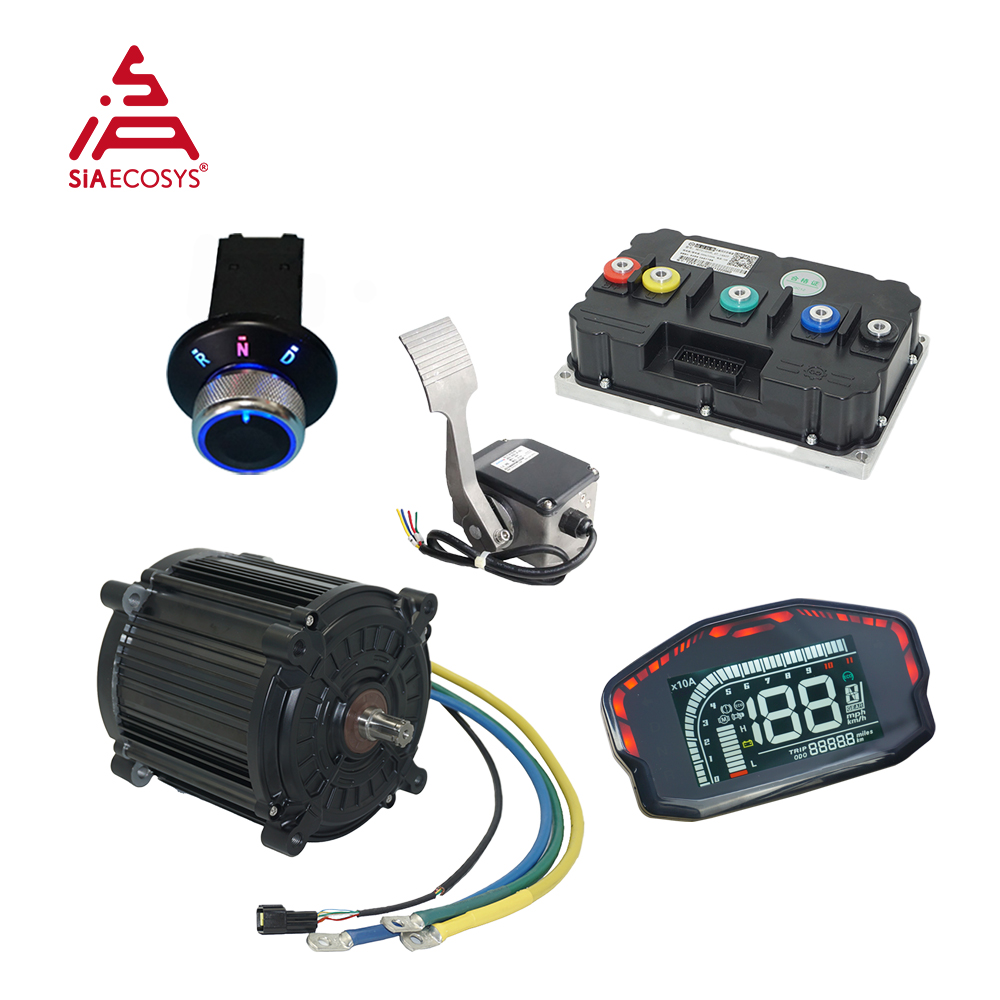

One set including below kit

1pcs X QS 180 8000W Encoder Mid drive motor

1pcs X ND721200 Encoder motor controller

1pcs X DKD LCD Speedometer (Adjustable)

1pcs X Pedal throttle

1pcs X DNR Device

 Product Description

1. QS 180 8000W Encoder Mid Drive Motor(Encoder version)

Dimension Drawing:

Test report:

Test Map

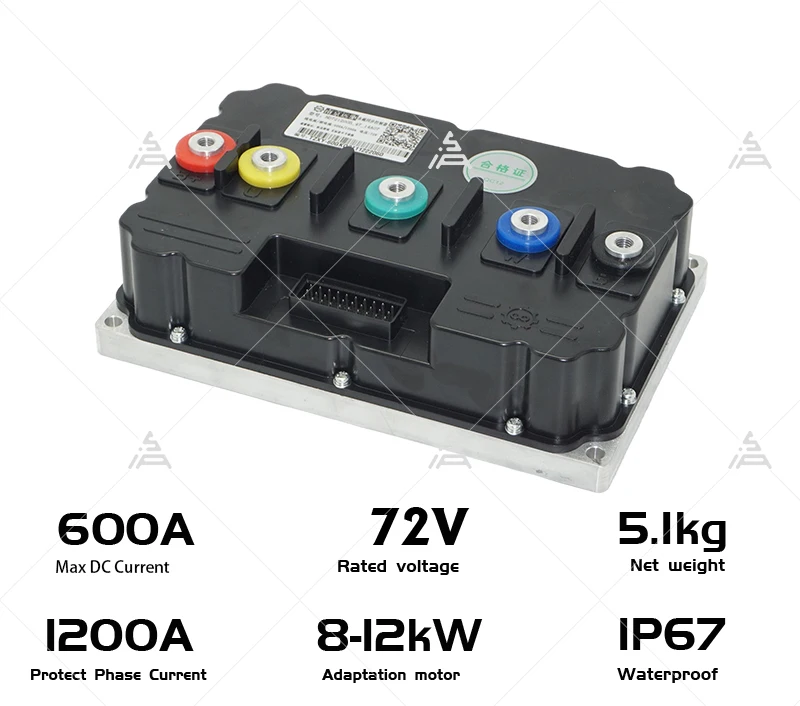

2. ND721200 Sine wave motor controller(Encoder Version)

Dimension drawing:

Bluetooth adapter



3. DKD LCD Display

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.



4. Pedal Throttle

Throttle Pedal Hall type : JKH model (match with our motor & controller)

Input voltage: 5V

Output voltage: 0-5V 5-0V

Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.



5. DNR Device

Include D N R three gears, for electric tricycle



EV Your Life!

Additional information

Weight 29.61 kg
Dimensions 32 × 32 × 37 cm
