QS 10 kw Hub Motor Wiring Diagram 12inch V4 Motor Kits with Liquid Cooled Controller

$9,999.00

Official Price:$9999.00/pcs
N.W.:37.0kgs
G.W.:37.5kgs
Dimension:43cm*43cm*43cm
Production Period:10~12 working days


QS 10 kw Hub Motor Wiring Diagram QS260 12*3.5inch 10000W V4 E-Scooter Motor High Speed 125kph Kits with EM550 Liquid Cooled Controller

For QS 10 kw Hub Motor Wiring Diagram 260 E-Scooter hub motor, it could be used for electric scooter, high power electric scooter.

e.g. Electric high power scooter

E-scooter weight: approx 150kg+80kg

Tire: 130/70-12, 120/70-12

Speed: 72V 125km/h

Battery: 72V80Ah lithium battery

Range: 55-180kph

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

QS 10 kw Hub Motor Wiring Diagram 12inch V4 Motor Kits with Liquid Cooled Controller
QS 10 kw Hub Motor Wiring Diagram 12inch V4 Motor Kits with Liquid Cooled Controller

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat/What’s APP: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

One set including below kit

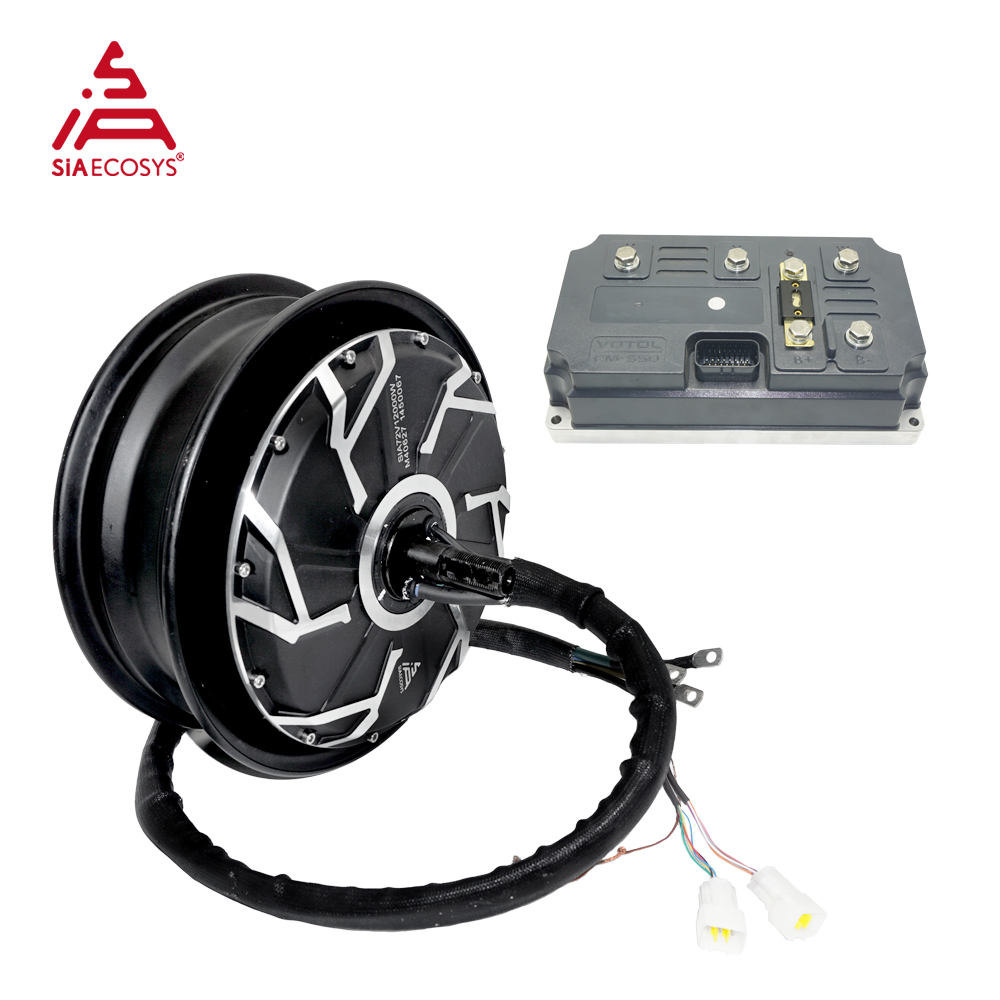

1x 260 10000W 60H V4 E-motorcycle Hub Motor

1x EM550 Liquid Cooled Controller

 Product Description

1. QSMOTOR 12×3.5inch 10000W V4 Electric Scooter Hub Motor

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Double axle with 12inch moped rim (integrated)

Rim Size:12×3.5inch(as default), matched tire:130/70-12

Magnet Height: 60mm, 16 pole pairs

Stator: Aluminum Core

Rated Power: 10000W

Speed: 55KPH-125KPH, it’s customized, genearlly we will design as 72V110KPH.

Work voltage range: 48V-96V, will be 72V as default.

Max Torque approx: ≥300.0N.m

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency: approx 89%

Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

Dual Halls with waterproof connectos(One for spare, in case of damage)

Working Temp: 70-120℃, peak150℃

32mm² Phase Wire

Waterproof Grade: IP65

Color: Black (As default)

Dimension Drawing:

qs 10 kw hub motor drawing
qs 10 kw hub motor drawing
QS 10 kw Hub Motor Wiring Diagram
qs 10 kw hub motor wiring diagram

Test Report

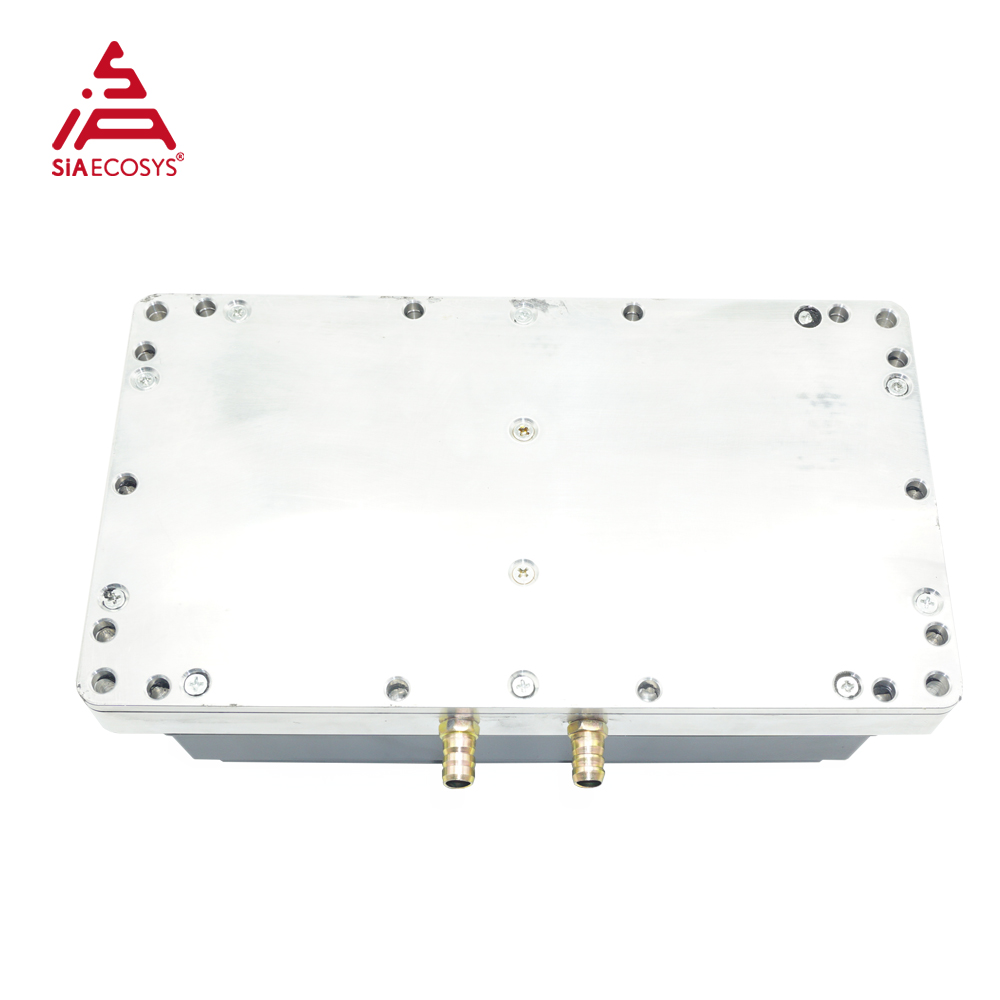

2. EM550 Liquid Cooled Controller

Controller Software Interface(PC)

EV Your Life!

Additional information

Weight 37.5 kg
Dimensions 43 × 43 × 43 cm
