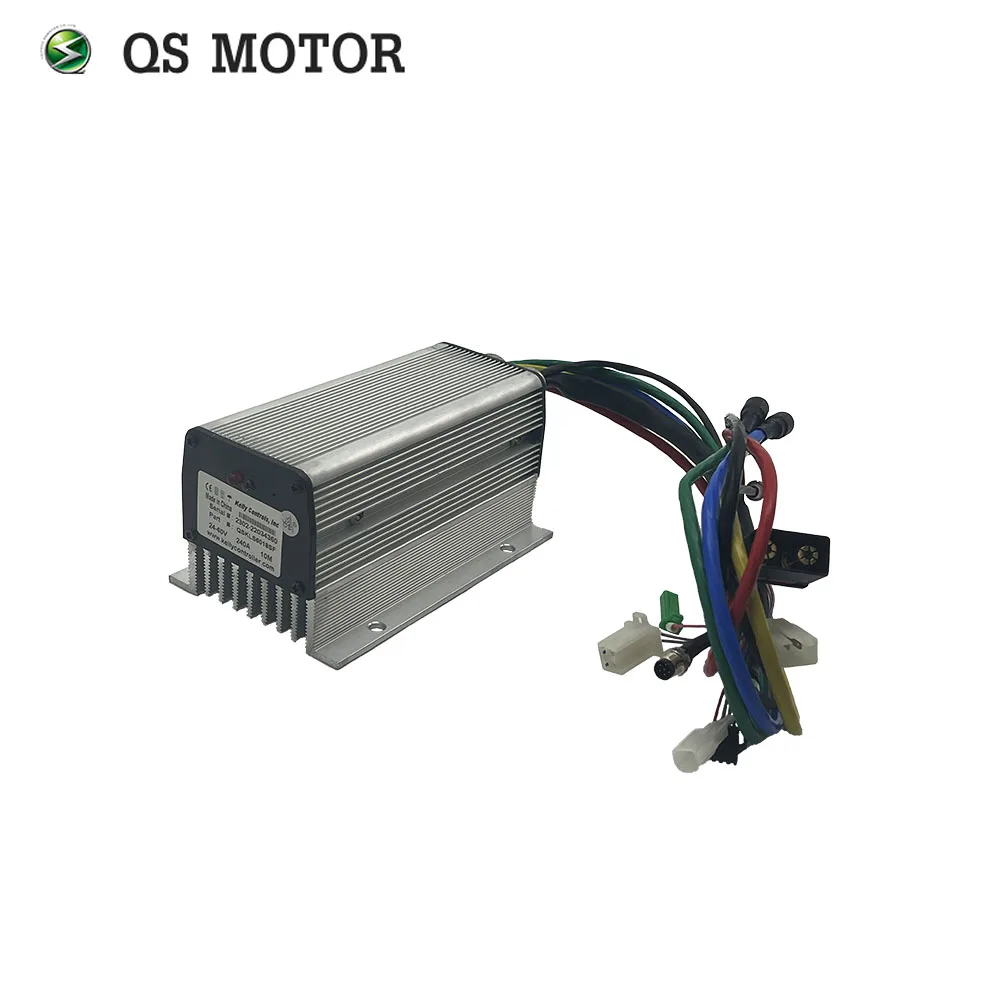

Kelly Controller KLS6018SF Programmable Sine Wave Controller

It’s special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 1500W.

P.s. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don’t pay first, then we could adjust price correctly.

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  What’s app: +86 18758618893

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)



 Key Features

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Soft start can be adjusted

4). Support Programmable by bluetooth

 Generally Spec

1.sine wave controller, programmable, with regen function

2. Battery Current: 100A

3. Max Phase Current: 240A

4. Voltage Rated: 60V

5. Thermic Probe:KTY83/122

6. controller sizeL: 148mm*94mm*53mm

7.weight:1.6kg

8. waterproof IP54

9.default not including bluetooth, CAN BUS not support

10.Function : anti theft, three speed, e brake

 Controller Drawing & Wire Definition

 Kelly Controller Interface

 Application
