Howmuch Horse Power A 8000W BLDC QS273 2wd 96V 115kph Brushless Electric Car Motor Conversion Kits

For 8000W motor kits, it could be used for electric car, which could be 96V 125KPH.
e.g. Light Retro Electric Car,
E-car Weight, approx 815kg+285kg
Tire: 185/65 R14
Speed: peak 125km/h @96V by 2wd when fully charged
Climbing Slope: 14.5°@900kg by 2wd
Battery: 96V200Ah lithium

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

One set including below kit

 Product Description

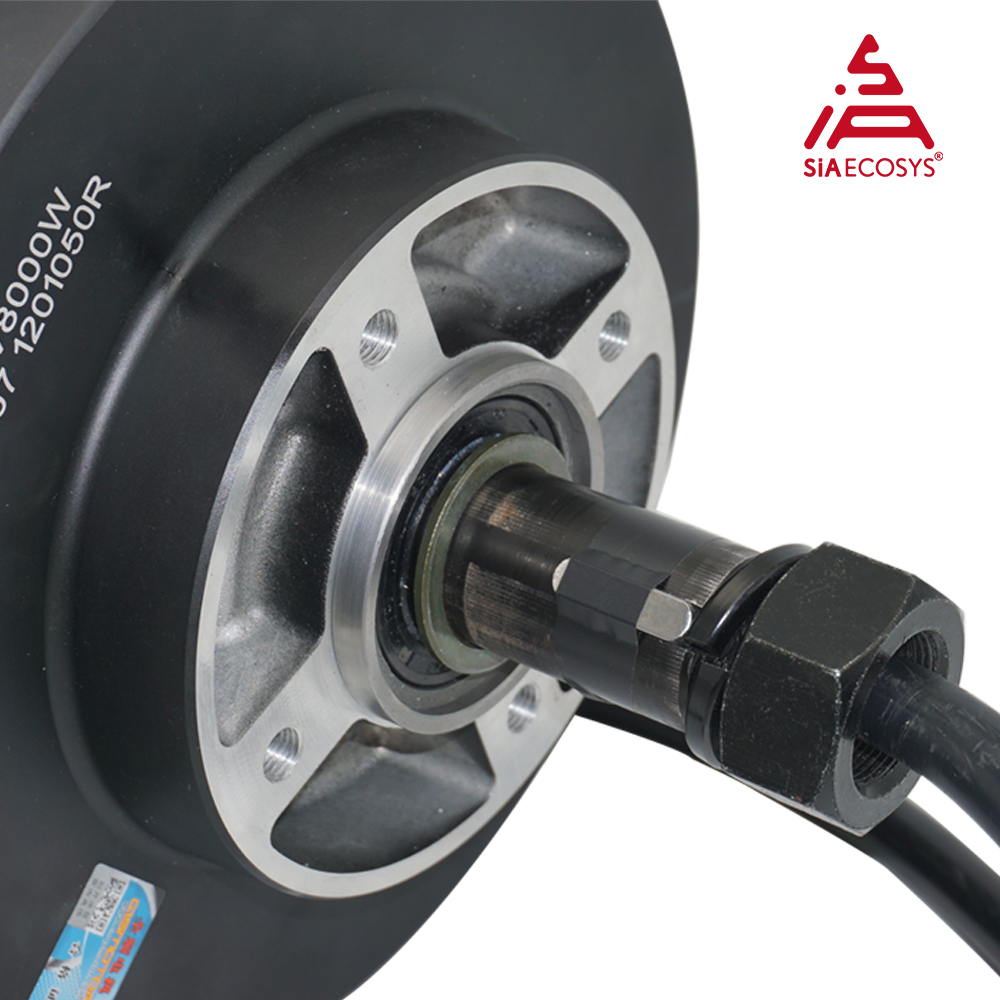

1. QSMOTOR 273 8000W V4 E-Car hub motor

Dimension Drawing:

Performance Curve

Dimension drawing:

3. 0-5V Electric Car Throttle Pedal

Hall type: JKH mode

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0.8V-4.2V

Default: Three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

4. XE-8 Speedometer

Model Number: X8-E

Application: Electric Car, EV

Rated Voltage:48V-96V

Work voltage: 0-120V

Programmable items: voltage, trip, time, background light

Show Time, driving distance, speed, voltage, electric quantity

Test Speed Type: Hall Sensor

Net weight: 0.57kg

Size: 205mm*103mm*67mm

Packing size: 220mm*160mm*100mm

PS：We don’t provide female and male waterproof connectors, pins for as below picture as default.
It will cost extra USD3.0/set for unit speedometer.

5. DNR Gear

6. Disc Brake Plate

We offer brake disc to fit with motor, u could use original brake calipers.

PCD: 4*114.3mm

CB: 76mm

10mm thickness

7. DC DC Converter 96V
