Fardriver Controller ND72680 Integrated Water Cooling Controller



Far Driver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  What’s app: +86 18758618893

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)



One set including below items

1. 1 pcs X ND72680 Integrated Water Cooling Sine Wave Controller

2. 1 pcs X Bluetooth Adapter

3. 2 pcs X Water cooling Pagoda-shape Connector (can match 12mm diameter hose)

 Key Features

1). All the raw materials are imported, using high-performance Moss tube,full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and IOS

7). With flux weakening function.(The product does not contain magnetism)

Product Description

ND72680 is sine wave controller with waterproofing grade IP67, suit for 4-6kw motors.

For ND72680, the peak voltage is 88V

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.

Spec

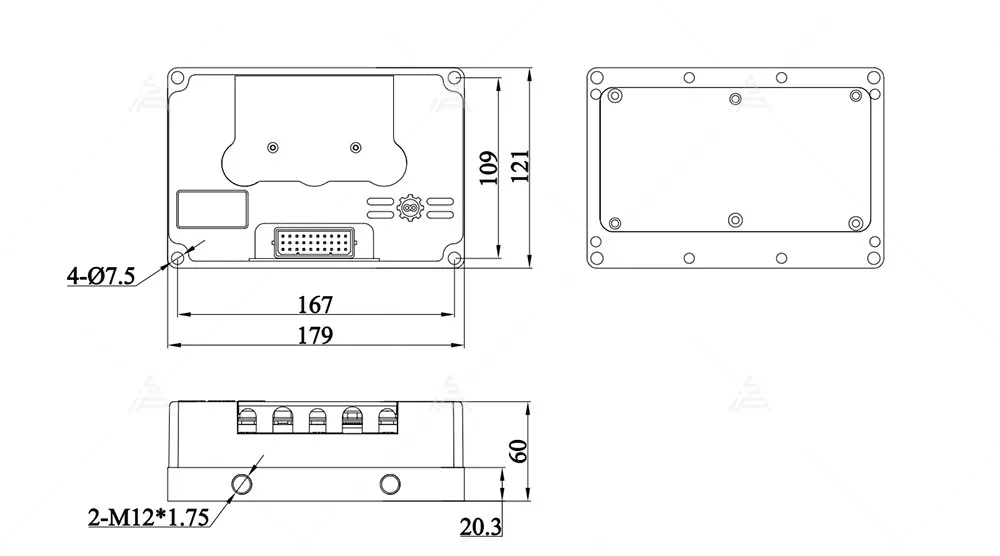

Drawing

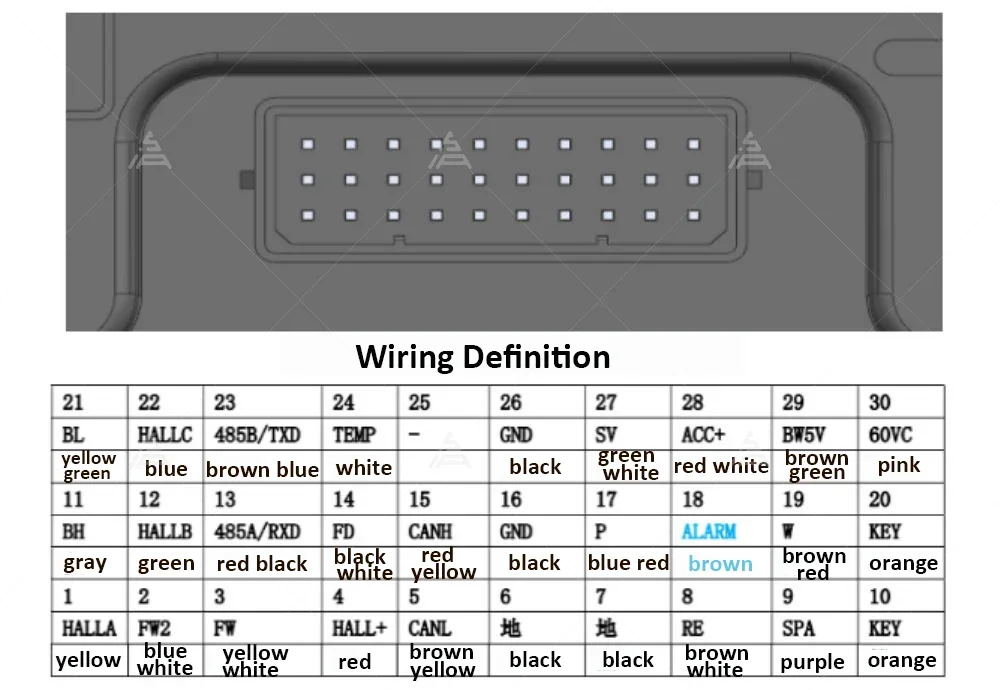

Wiring Definition

Adapter Cable

Application
