Electric Motorcycle Kit QS138 90H with Fardriver 72680

Original price was: $747.10.Current price is: $724.69.

Official Price:$747.1/pcs
N.W.:21.0kgs
G.W.:21.5kgs
Dimension:34cm*34cm*33cm
Production Period:10~12 working days


Electric Motorcycle Kit QS138 90H V3 4KW 7200rpm with 1:2.35 gear box Mid Drive Motor Kits with Fardriver ND72680 Controller 350A 680A Line Communication

For 138 4000W V3 motor powertrain kits, it could be used for electric motorcycle, which could be 72V120KPH.

e.g. E-Motorcycle

E-motorcycle weight, approx 180kg+1*70kg

Speed: peak 120km/h

Gear ratio: 1:2.46

Climbing slope: 20°@30kph@250kg

Tire: 100/70-19

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

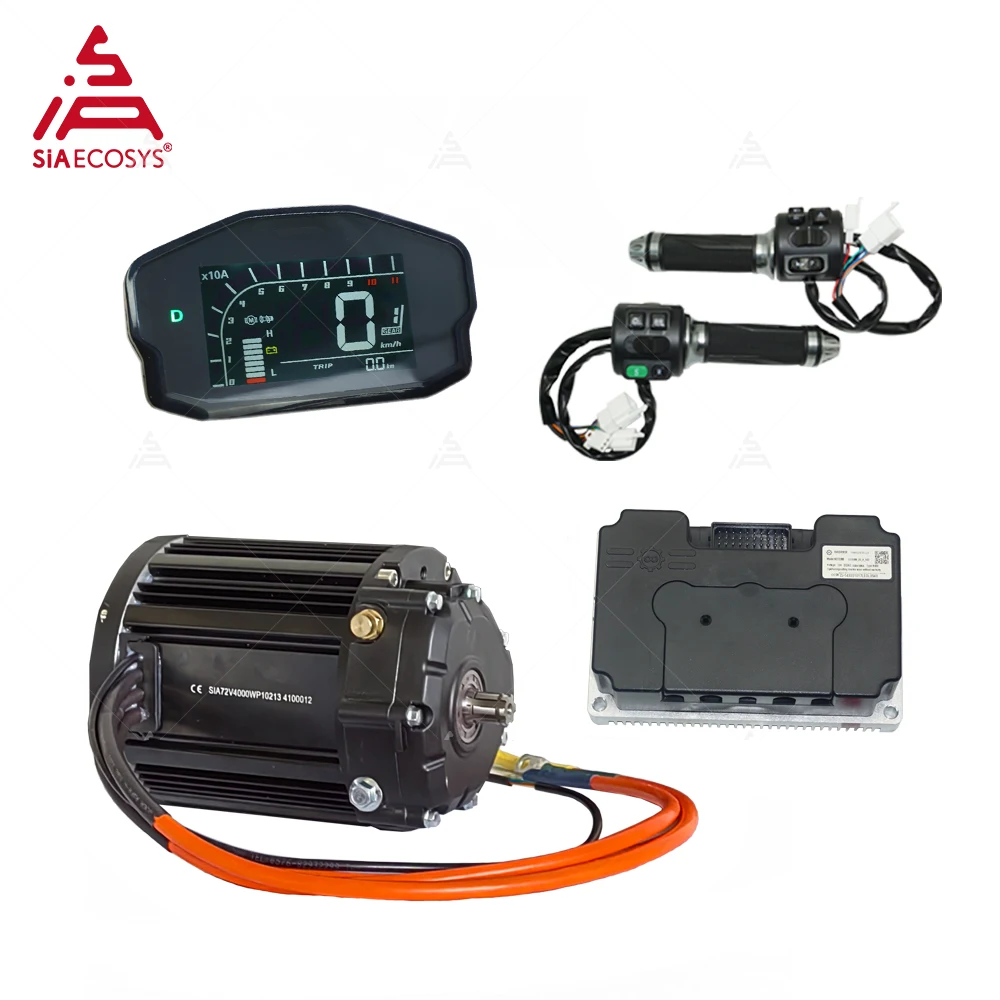

One set including below kit

1. 1pcs X QS138 4000W V3 1:2.35 gear ratio Mid Drive Motor with 428 15T sprocket

2. 1pcs X ND72680 Controller

3. 1pcs X USB Cable(PC)

4. 1pcs X DKD LCD Speedometer

5. 1pcs X Z6 Twist Throttle

Electric Motorcycle Kit QS138 90H with Fardriver 72680
Electric Motorcycle Kit QS138 90H with Fardriver 72680

 Product Description

1. QS 138 4KW V3 mid drive motor



Dimension Drawing:

2. ND72680 Controller

Dimension Drawing:

Harness Definition

USB Cable & Software Interface

3. DKD LCD Display

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.

4. Z6 Twist Throttle

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

 Application for QSMOTOR 138 4KW V3 Mid drive motor

EV Your Life!

Additional information

Weight 21 kg
Dimensions 34 × 34 × 33 cm
