DC Electric Motor Kit QS138 QSJ138D-90 Conversion Kit With EM260SGTP Controller for E-Motorcycle
E-motorcycle weight, approx 180kg+1*70kg
Top Speed: 120km/h
Gear ratio: 1:2.46
Climbing slope: 20°@30kph@250kg
Tire: 100/70-19
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app/WeChat: +86 18758618893
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%

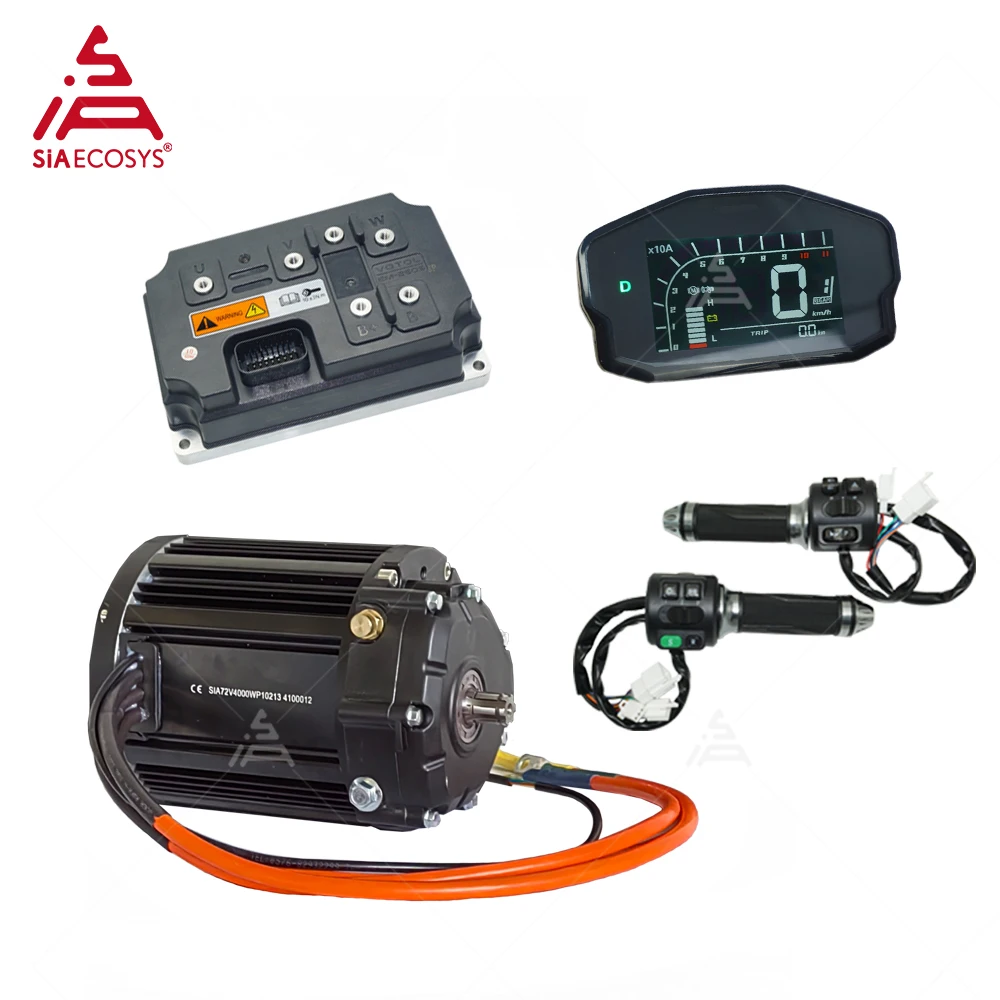

One set including below components:
1pcs X QS138 4000W V3 1:2.35 gear ratio Mid Drive Motorwith 15T sprocket
1pcs X EM260SGTP Controller
1pcs X USB Programmable cable
1pcs X DKD LCD Speedometer
1pcs X Z6 Twist Throttle with combination switch
Product Description
1. QSMOTOR 138 4000W V3 mid drive motor with internal gear box
Dimension Drawing:
Test Report:
2. EM260SGTP sine wave motor controller with standard CAN-BUS

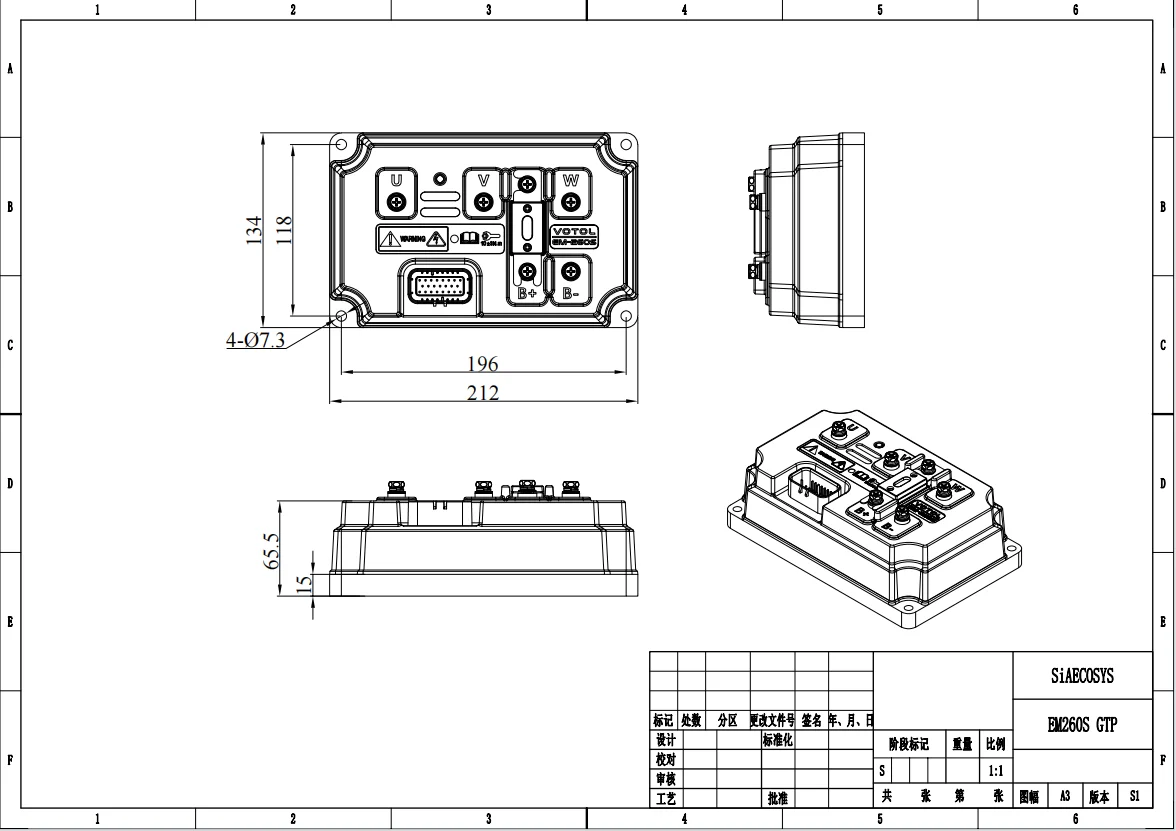

Dimension Drawing:
Cable Details:
For the detail of wiring manual, please leave message in web.
Debugging Cable:
Software Interface(PC):
Programmable Software & User manual (Before you received the controller)
We can provide controller manual & software & remote tech support after you place the order(before you got the controllers).

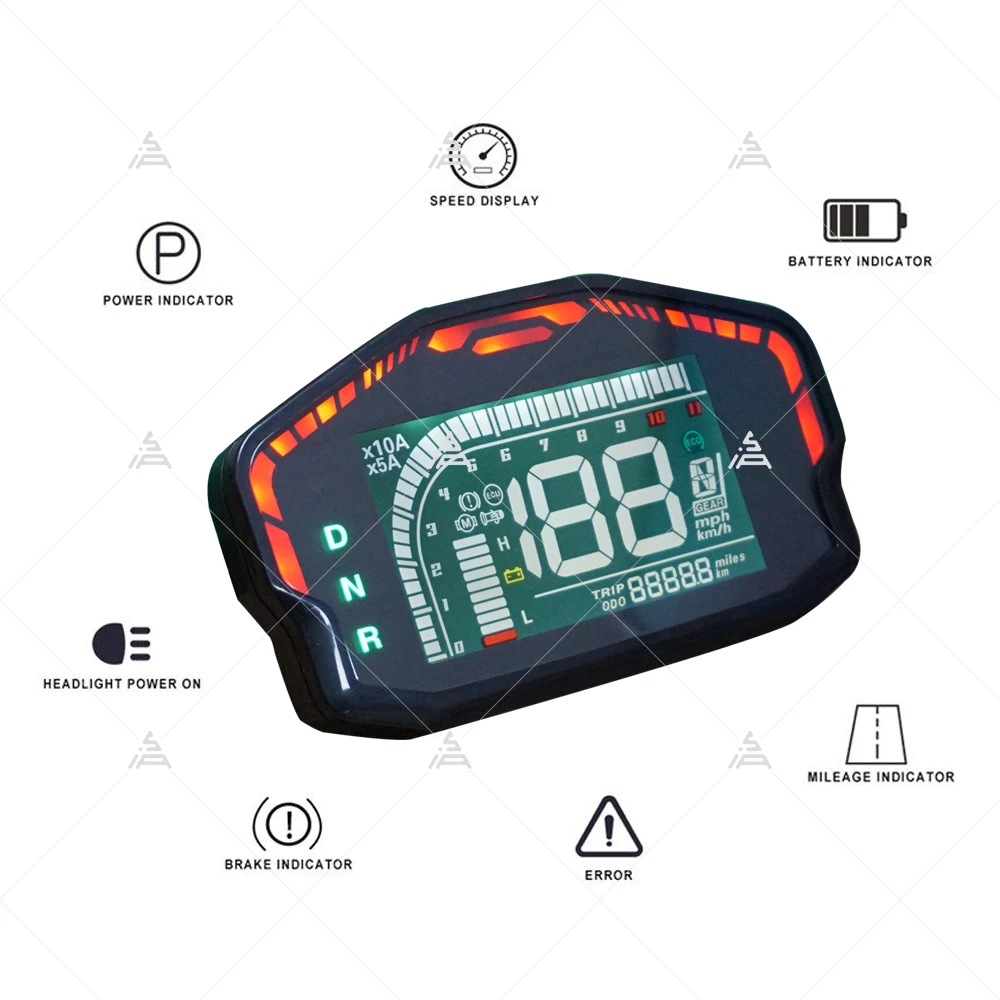

3. DKD LCD speedometer, can-bus(Optional, LIN as default)
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn’t have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can’t get can-bus battery.
Dimension Drawing:
4. Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with controller well.
