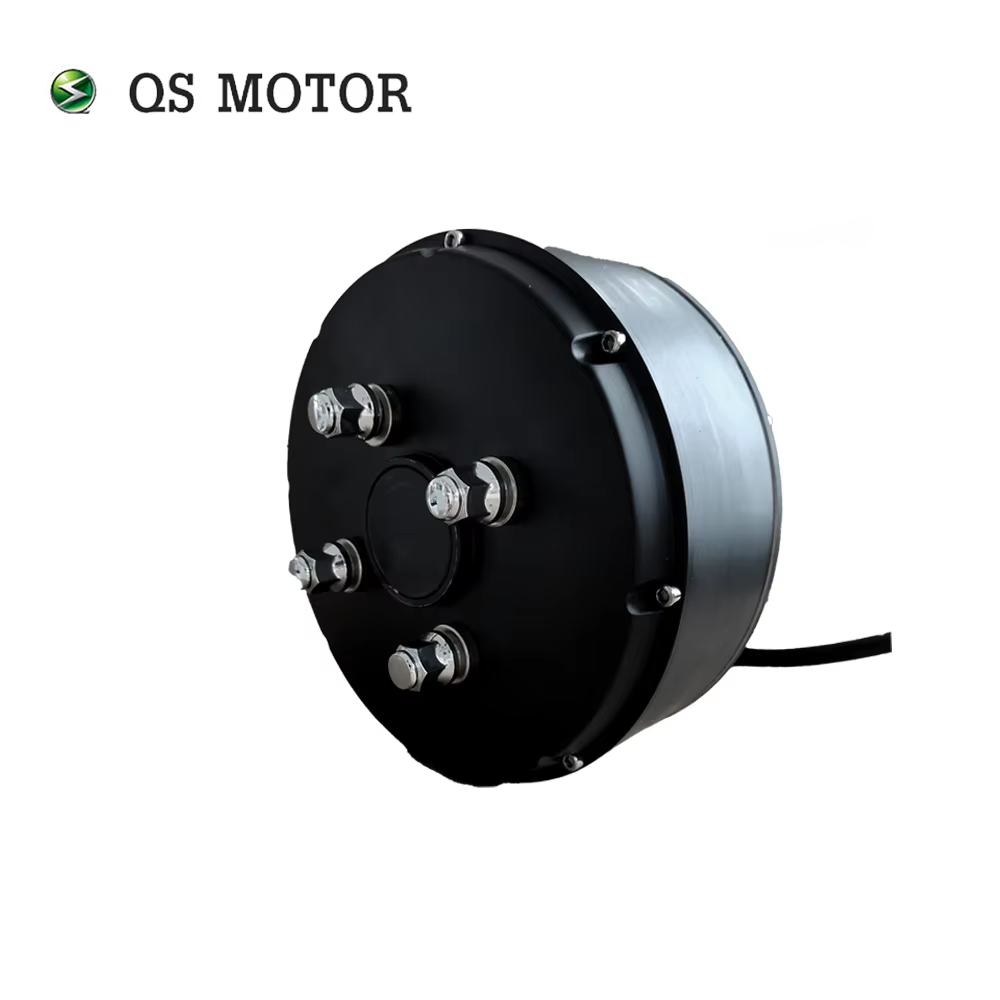

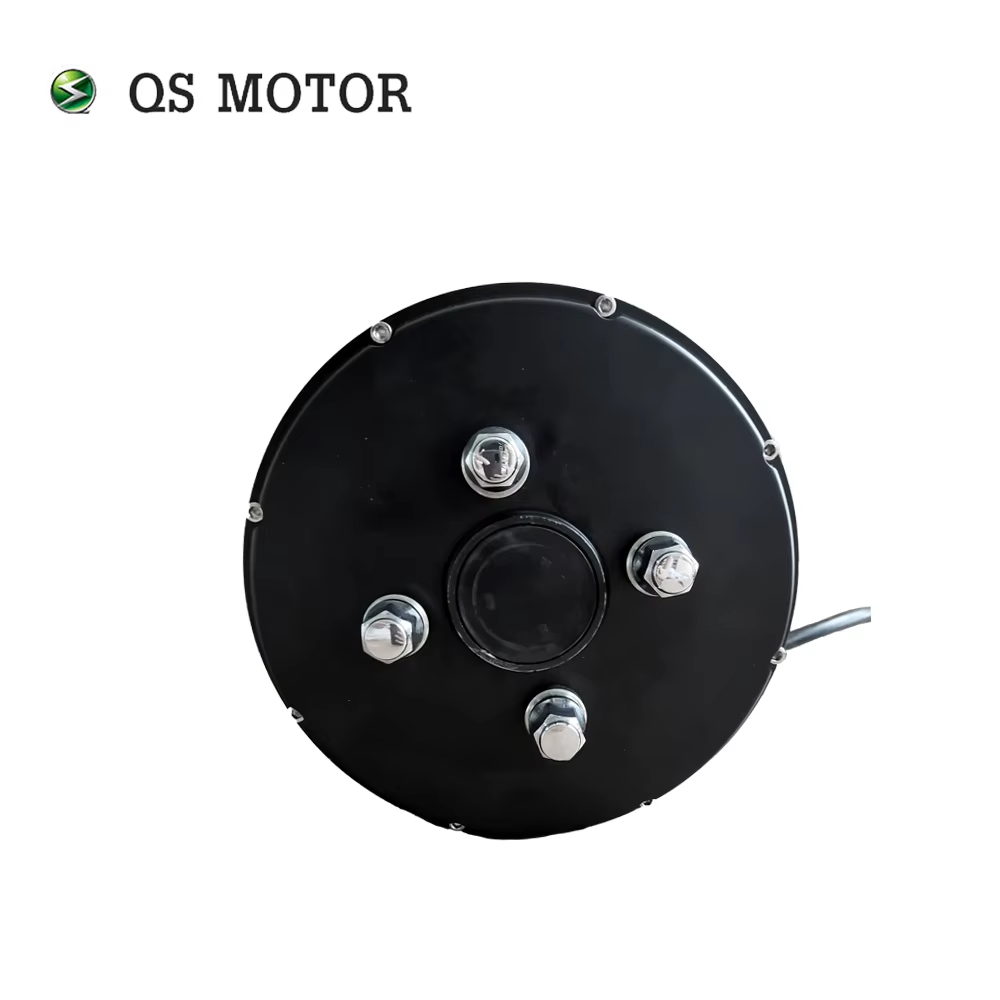

4000 Watt 72V 80KPH QS273 Hub Motor for Electric Light Car
It’s QS electric In-Wheel Car Hub Motor for Conversion Kits, which can be used in convert gasoline to electric car.
Especially suit for light weight car (around 400-800kg), if driven by 2pcsX4000W Hub Motor V2 (2wd), it could be 72V 80km/h, 2*190N.m peak torque. if driven by 2pcsX8000W Hub Motor V2 (4wd), it could be 72V 90km/h, 4*190N.m peak torque.
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
Key Features
1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1. Genearlly Spec:
- Motor Type: BLDC Hub Motor with Permanent Magnet
- Motor design: Single axle out without
- PCD for rim installation: 4 x100mm, 5×114.3mm etc.(can be customized)
- CB: >60mm (can be customized)
- Magnet Height: 40mm
- No. of Pole Pairs: 16 pair
- Rated Power: 4000W
- Peak Power: 8000W
- Rated Voltage: 72V( 60V-144V Can be optional)
- Speed: 80km/h (40-80km/h can be customized)
- Max No-load RPM: 890RPM
- Max Torque: 200N.m
- Max Efficiency:88%
- Continious current:62A
- Max current:90A (Peak 120A in short time)
- Brake type: Disc brake
- Winding Core material: Aluminium
- Cross Section of Phase wire: 16 mm2
- Hall sensor phasing angle: 120 degree
- Temperature Sensor: Optional
- Max. Working Temperature: 70 degree, Peak 120 degree
- Waterproof Grade: IP54
- Color: Black
- N.W./ G..W. : 23kgs /24kg
- Package Size: 44*43*34CM
For the max continuous rating power, the data should be tested in lab, which means no further temp rise at the power (e.g. 100 degree inside of motor at the power). Unluckily, all the continuous power rating is not done yet.
Due to our understanding and feedback of customer, for 205 3000W V3 motor, the max continuous power could be 6000W, peak power 12kW (even 18kW). For EV enthusiastic, they could input more power to enjoy the high performance, but the motor might suffer from over heating or even burnt. For EV Manufacture, we should notice the potential performance of motor, and keep some allowance for the whole e-scooter kits. include motor, controller, battery. to get them as stable as possible & decress the repair rate (consider all the usage environment). E.g. 3000W as continuous rating power.
Drawing
