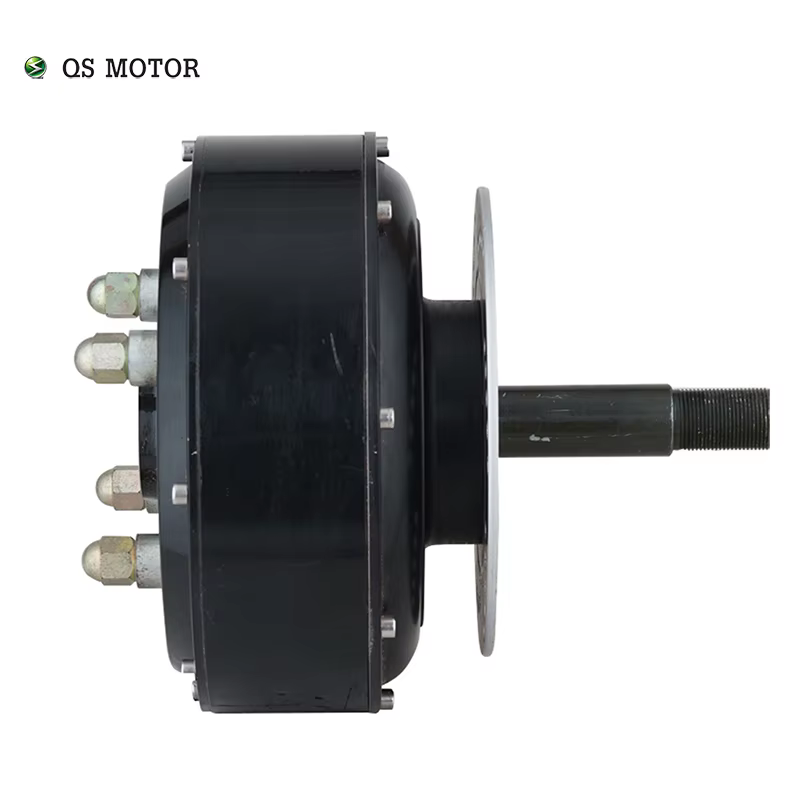

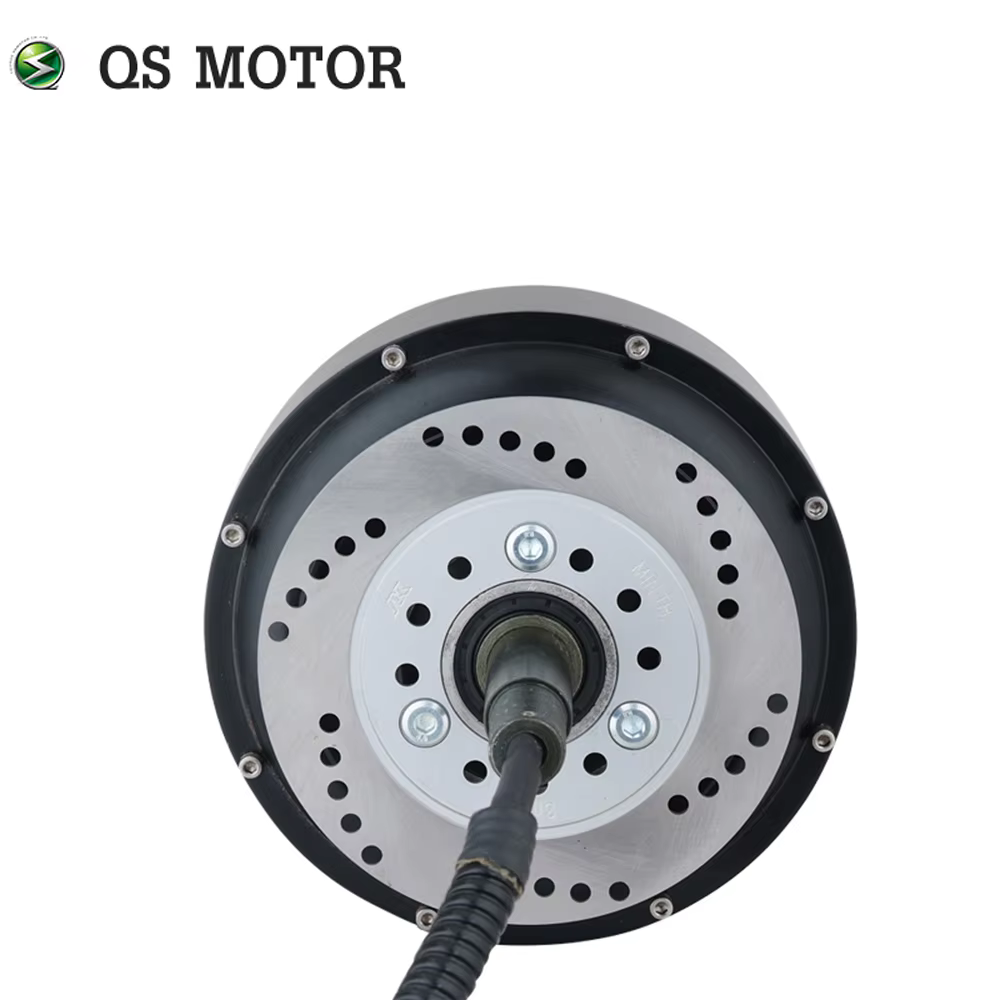

1500 Watt V3 72V QS205 Single Shaft Motor for Electric Car
For 205 E-Car wheel hub motor, it could be used for electric scooter, tricycle, mini/golf car.
205 motor means the diameter of iron ring of rotor is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,
205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, 205 E-car Hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
Key Features
1). Simplify to make a light electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1. Genearlly Spec:
- Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
- Brand: QS Motor, QSMOTOR
- Motor Design: Single axle without moped rim (Integrated)
- Matching Rim Size:12inch, 13inch & above wheel rim, CB=60mm or CB≥65mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)
- Magnet Height: 40mm, 16 pole pairs
- Stator: Aluminum Core
- Rated Power: 1500W
- Speed: 24KPH-70KPH, it’s customized, genearlly we will design as 72V60KPH.
- Work Voltage range: 48V-96V, will be 72V as default.
- Max Torque approx 148.3N.m
- KV: 9.6/10.8/11.6/12.5/13.5(optional)
- Thermic Probe: KTY83-122 (as default, optional)
- Max Efficiency approx 84%
- Working Temperature: 70-120℃ , peak 150 ℃
- Brake type:MopedDiscbrake (as default), PCD: 3*80mm, CB: 58MM
- Dual Halls with waterproof connectors(One for using, one for spare
- 12mm axle flats
- 6mm² Cross Section of Phase Wire(not including insulation layer)
- Waterproof Grade: IP65
- Color: Black (As default)
- N.W/ G.W: 17.0kg/18.5kg
Drawing
Application
