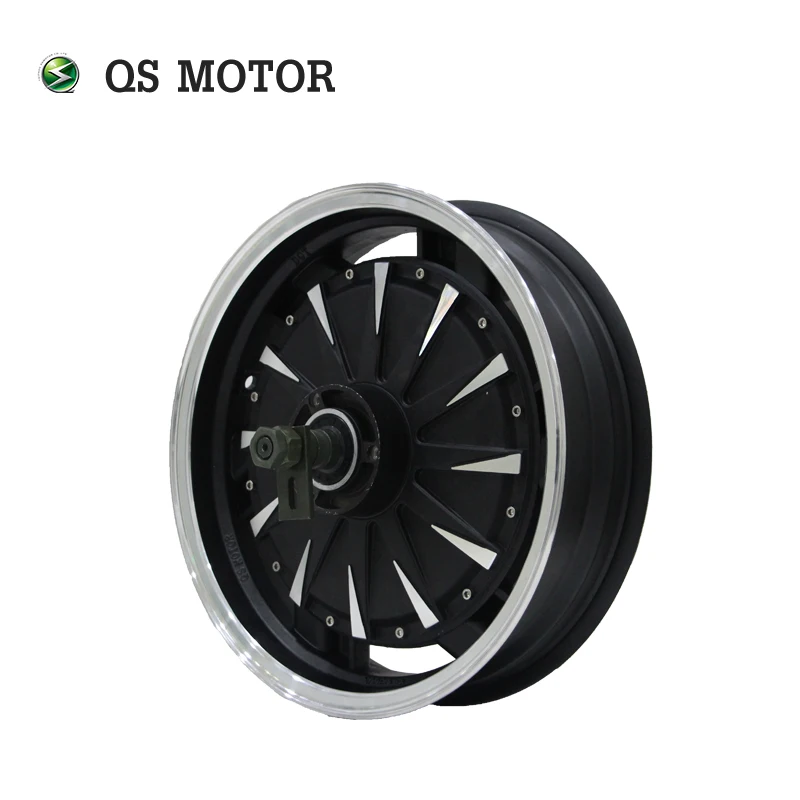

14 inch Electric Bicycle Hub Motor Wheel QS260 5000W Motor

$316.04

Official Price:$316.04/pcs
N.W.:18.5kgs
G.W.:19.0kgs
Dimension:43cm*43cm*42cm
Production Period:10~12 working days

14 inch Electric Bicycle Hub Motor Wheel 260 5000W 14*3.5inch V1.4 Motor for  Electric Scooter

For 14inch 260 E-Scooter wheel hub motor, it’s new cost-effective design.

It could be used for electric scooter, electric motorcycle.

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  What’s app: +86 18758618893

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

14 inch Electric Bicycle Hub Motor Wheel QS260 5000W Motor
14 inch Electric Bicycle Hub Motor Wheel QS260 5000W Motor

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

 Product Description

1. Genearlly Spec:

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
  • Brand: QS Motor, QSMOTOR
  • Motor Design: Double axle with 14×3.5inch moped rim (Integrated)
  • Rim Size:14×3.5inch(Optional 14×2.5inch), matched tire:130/70-14 etc
  • Magnet Height: 50mm, 24 pole pairs
  • Stator: Steel Core
  • Rated Power: 5000W
  • Working voltage range: 48V-96V
  • KV: 19.16/12.9/9.8/7.3 (optional)
  • Thermic Probe: KTY83-122 (as default, optional)
  • Max Efficiency approx 88%
  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm;
  • Drop-outs: 200mm
  • Dual Halls with waterproof connectos(One for spare, in case of damage)
  • Color: Black (As default)



Drawing

EV Your Life!

Additional information

Weight 19 kg
Dimensions 43 × 43 × 42 cm
