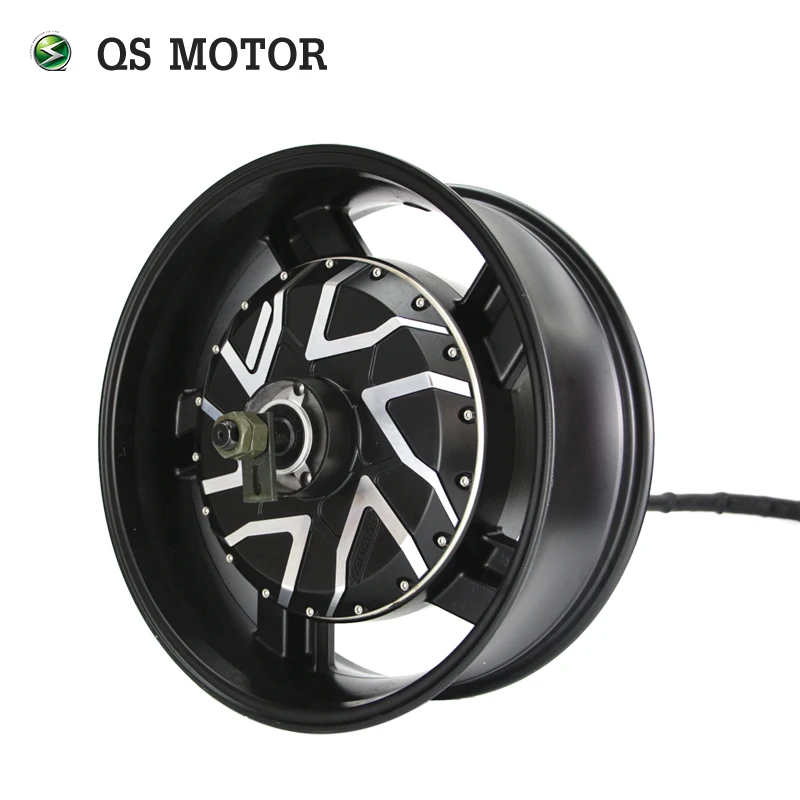

10000w 17inch In-wheel Hub Motor with Six Phase Wires QS273 10kW 17×6.0inch V4 140kph hub Motor for High Power Electric Motorcycle

For 17inch 10000W motor power train kits, it could be used for electricmotorcycle, which could be 140KPH.

e.g. Electric Motorcycle

E-motorcycle weight, approx 182kg+80kg

Speed: Peak 140km/h

Climbing slope: 15 degree@262kg

Tire: 190/50-17

In the electrical system, when it comes to the regular phase wire, its cross – sectional area is 25 square millimeters and there are three phase wires. In another case, for an area of 40 square meters, we have two sets of 20 square meter configurations, which means there are a total of six phase wires in this situation. It should be noted that the shafts among them are not the same.

Regarding the specific model of 17×6.0 273, it is possible to have it custom – ordered. For the QS273 model, when the power is 10 kilowatt with 60mm magnet height, it could be 10000w 17inch in-wheel hub motor with six phase wires. And when the power is 12 kilowatts with 70mm magnet height, it could be 12000W 17inch in-wheel hub motor with six phase wire. These details are crucial for the proper design and operation of the electrical equipment within the relevant system.

PS. There will be extra cost.

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

 Product Description

1. Genearlly Spec:
It could be 10kw or 12kw.



2. Motor Drawing:



 Please Noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

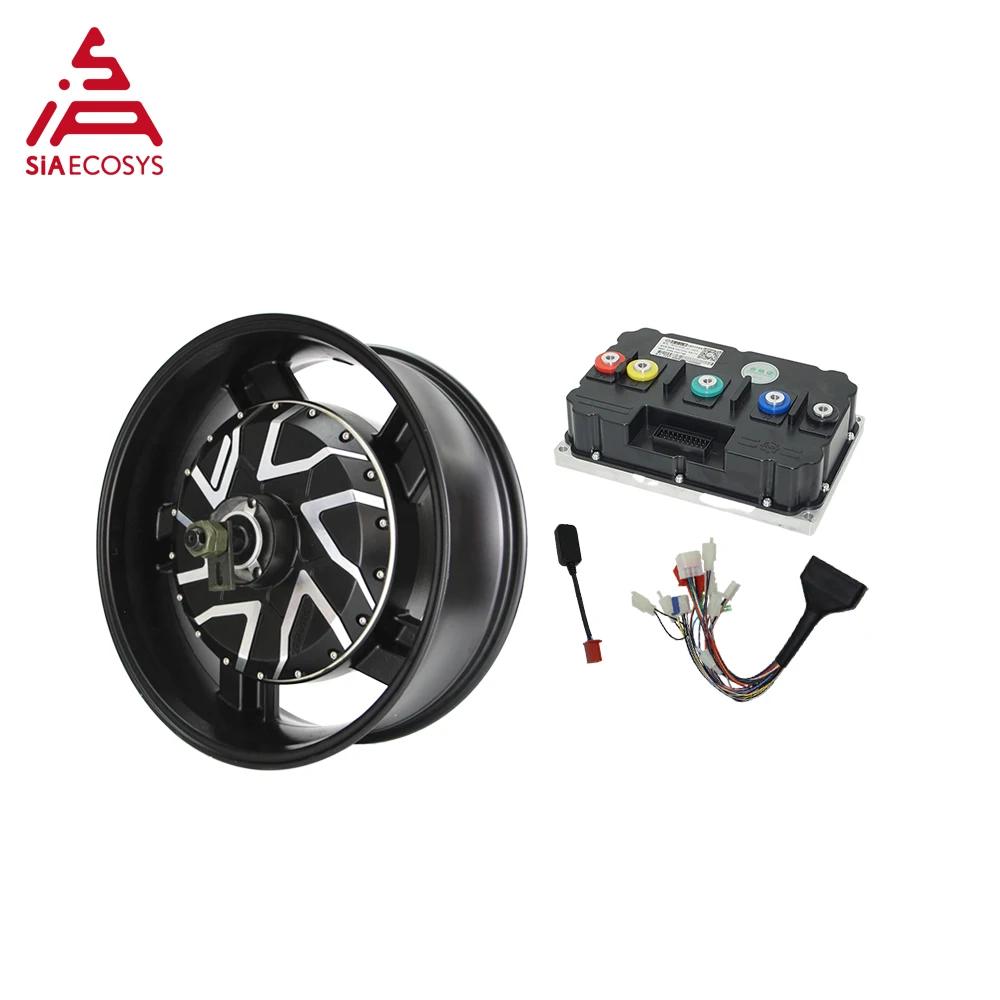

 Conversion Kits

We’re able to supply controller, display, dc-dc converter, disc brake system, twist throttle…etc.

You can click below picture for hyperlink in Aliexpress.

Application
