SiAECOSYS QSMOTOR 12*3.5inch 260 10KW V4 E-Scooter Motor High Speed 125kph Kits with EM550 Liquid Cooled Controller

For 260 E-Scooter hub motor, it could be used for electric scooter, high power electric scooter.

e.g. Electric high power scooter

E-scooter weight: approx 150kg+80kg

Tire: 130/70-12, 120/70-12

Speed: 72V 125km/h

Battery: 72V80Ah lithium battery

Range: 55-180kph

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat/What’s APP: +86 18758618893

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

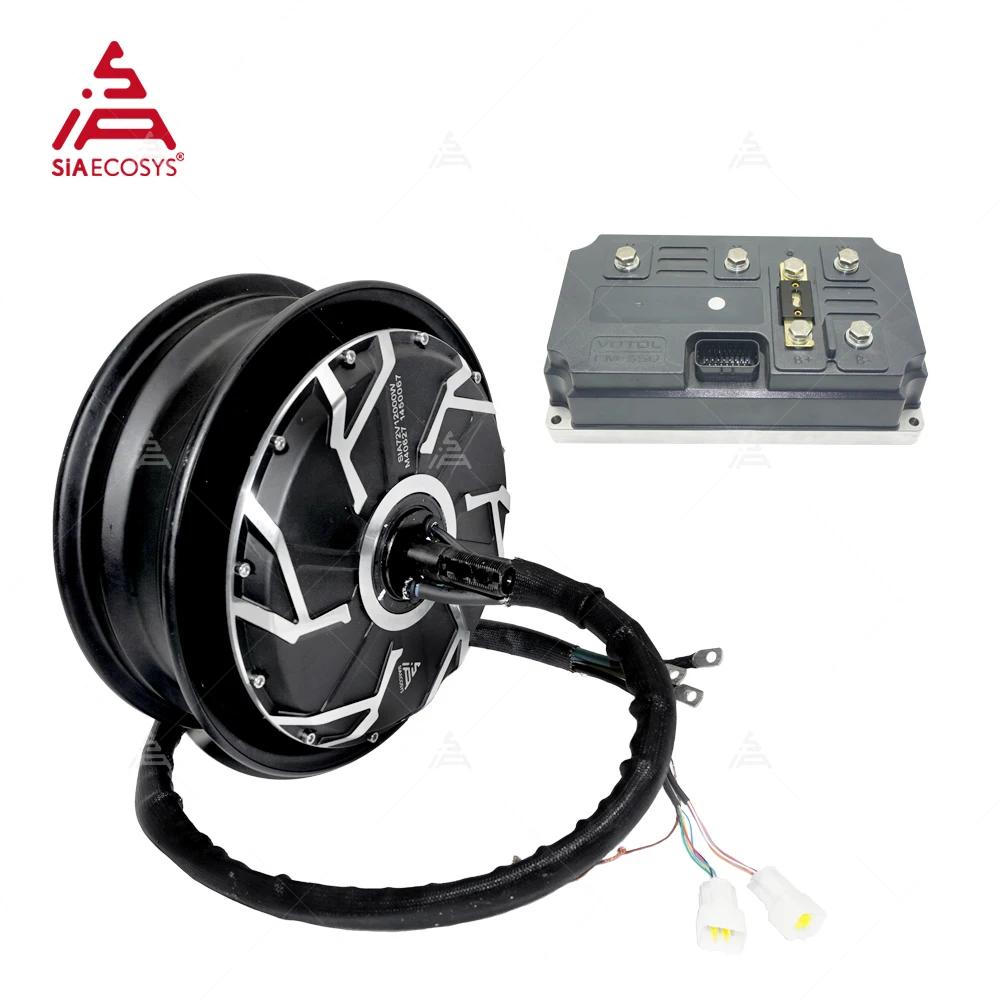

One set including below kit

1x 260 10000W 60H V4 E-motorcycle Hub Motor

1x EM550 Liquid Cooled Controller

 Product Description

1. QSMOTOR 12×3.5inch 10000W V4 Electric Scooter Hub Motor

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Double axle with 12inch moped rim (integrated)

Rim Size:12×3.5inch(as default), matched tire:130/70-12

Magnet Height: 60mm, 16 pole pairs

Stator: Aluminum Core

Rated Power: 10000W

Speed: 55KPH-125KPH, it’s customized, genearlly we will design as 72V110KPH.

Work voltage range: 48V-96V, will be 72V as default.

Max Torque approx: ≥300.0N.m

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency: approx 89%

Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

Dual Halls with waterproof connectos(One for spare, in case of damage)

Working Temp: 70-120℃, peak150℃

32mm² Phase Wire

Waterproof Grade: IP65

Color: Black (As default)

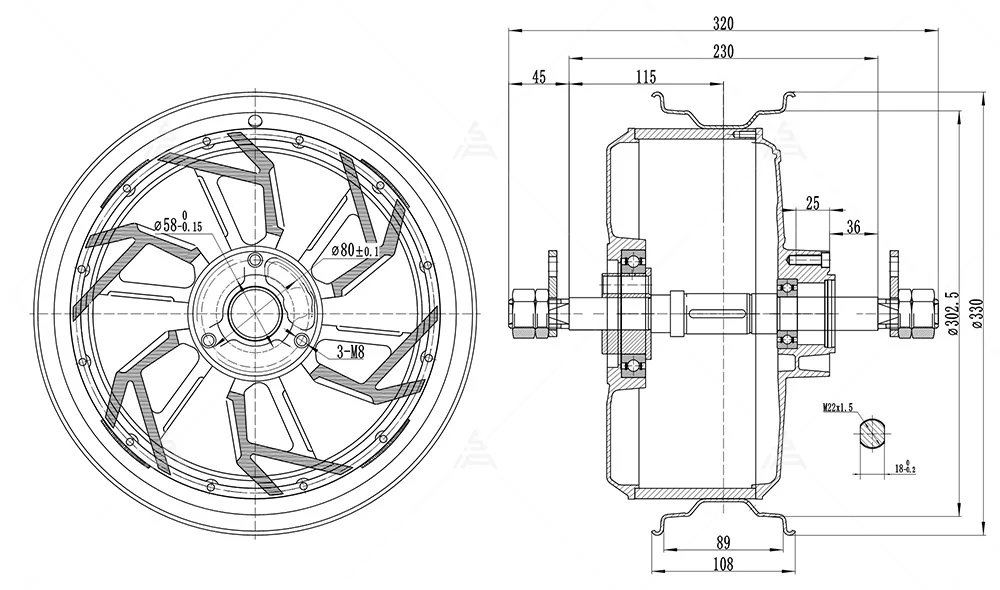

Dimension Drawing:

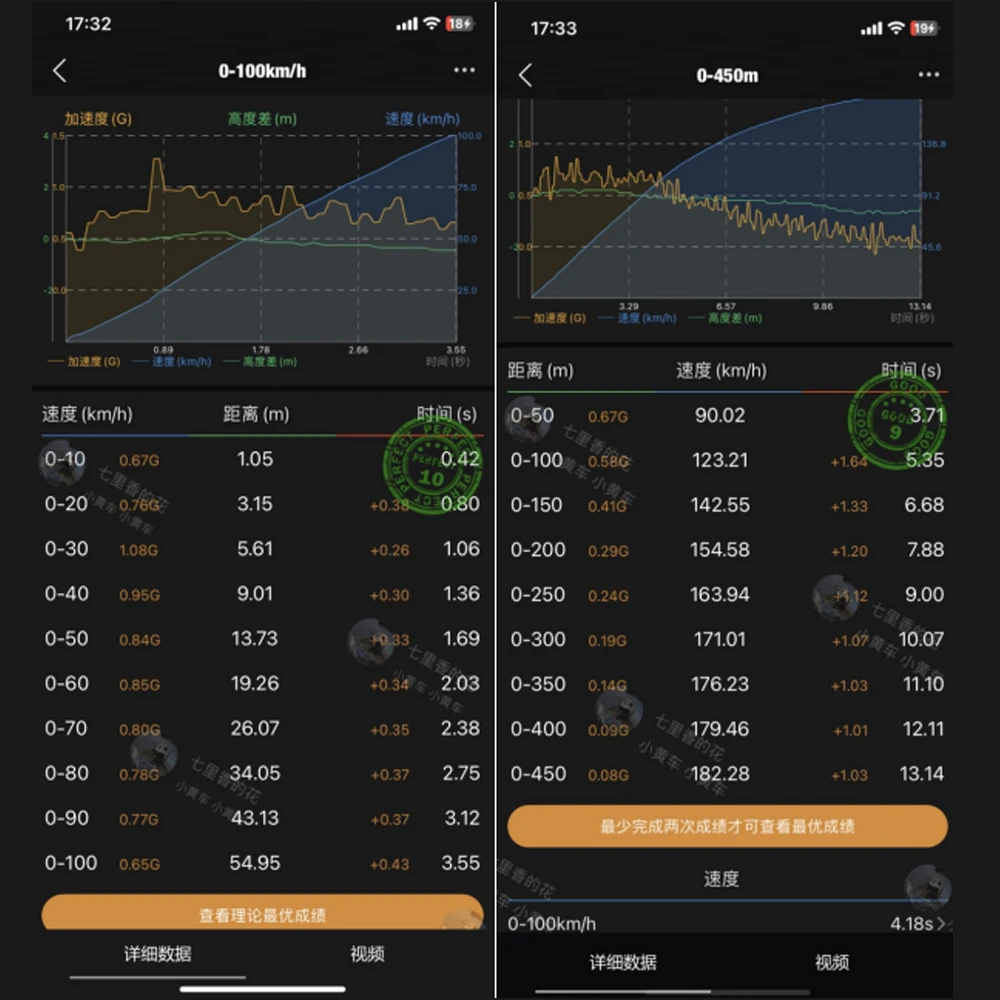

Test Report

Controller Software Interface(PC)
