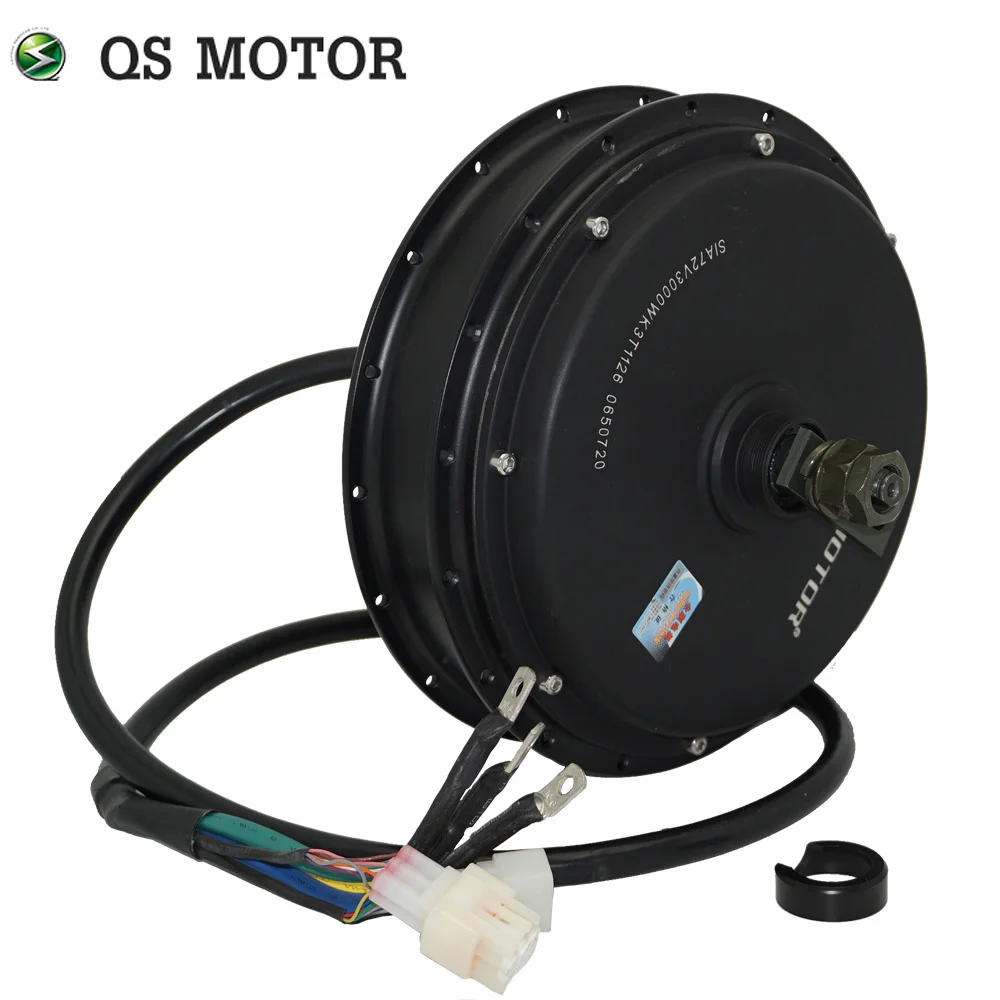

QS205 Hub Motor QS Motor 205 3000W 50H V3 V3TI Spoke 72V Electric Bike Motor for Electric Bicycle

For QS205 Hub Motor 3000w 205 50H V3TI electric motor, it’s new design and especially upgrades for e-bike.Available in a variety of sizes, such as 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

  If you have interested in this product, you can contact with our sales directly.

  Sales Contact: damon@siaecosys.com

  Skype: Damon Wong(QSMOTOR)

  We Chat/What’s APP: +86 18758618893

Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

 Product Description

1. Genearlly Spec:

PS. V3Ti short for V3 thread integrated, which mean phase wire exit from thread side of motor axle, we plan to replace V3 motor gradually.

2. Dimension Drawing:

Refer to V3 drawing firstly.

For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.

Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7

Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer

We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.

 Difference between V3/V3I/V3TI

1. Phase wire exit from thread side, which is easier to mount on bike and it looks better.

2. Phase wire change to integrated one instead of standard loose one, which improved from IP54 to IP65.

3. Add brake spacer as default, which is thinner to avoid scratch phase wire by brake disc.

 Application For QS 205 E-Bike Spoke Hub Motor

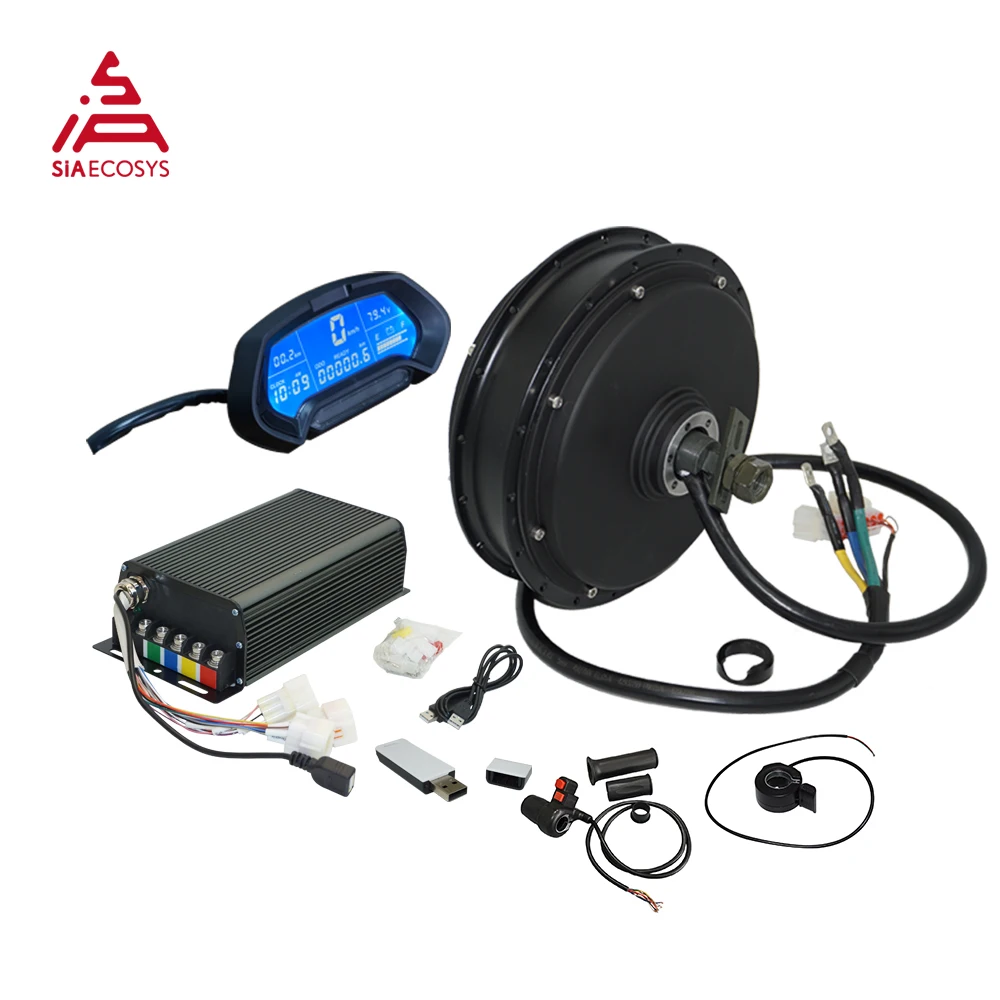

Electric Motor Kits
