In order to conform to the registration policy of some demostic area, and standard of exporting to some country, QS Motor develop freewheel type 260 series hub motors, which fit with 12inch, 13inch and 14inch wheel.
12inch Motor SPEC
1. Model: 800W-2000W (3000W avaiable with over 200mm dropouts)
2. Magnet Height: 24mm-35mm
3. Votalge: 36-96V
4. SpeedL 35-60KPH
5. Version: V1
6. Thread: M42X1
7. Dropouts: 200mm
8. Wheel width: 12X2.15inch, 12X2.5inch, 12X3.5inch

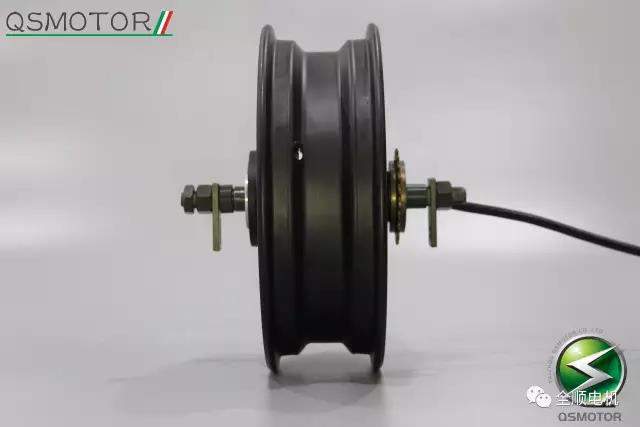

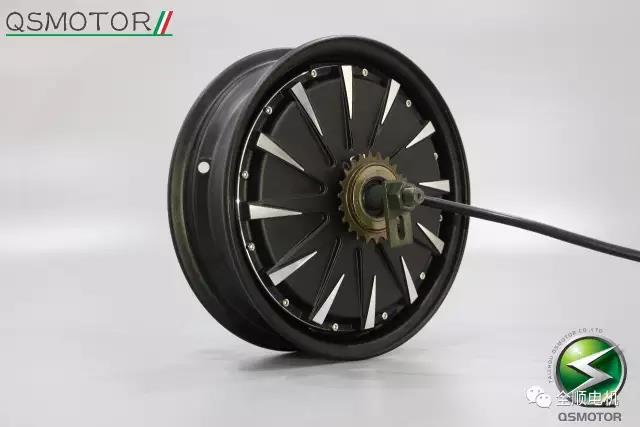

Mounted with freewheel

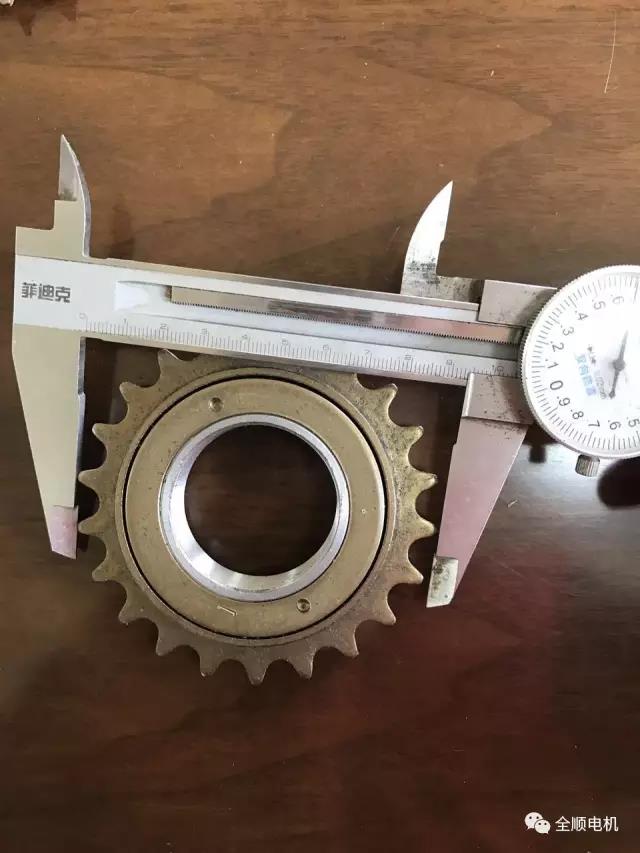

Freewheel
The diamater is approx 93mm.
Thread: M42X1 left-hand thread
TIPS: We don't offer the freewheel as default, if you couldn't find, we could help you to purchase it.
13inch Motor SPEC
1. Model: 1500W and 2000W (3000W avaiable with over 200mm dropouts)
2. Magnet Height: 24mm-35mm
3. Votalge: 36-96V
4. SpeedL 35-60KPH
5. Version: V1
6. Thread: M42X1
7. Dropouts: 200mm
8. Wheel width: 13X2.15inch, 13X2.5inch, 13X3.5inch
14inch 260 Motor SPEC
1. Model: 1500W and 2000W (3000W avaiable with over 200mm dropouts)
2. Magnet Height: 24mm-35mm
3. Votalge: 36-96V
4. SpeedL 35-60KPH
5. Version: V1
6. Thread: M42X1
7. Dropouts: 200mm
8. Wheel width: 14X2.15inch, 14X2.5inch, 14X3.5inch
