QS Wheel 10inch-20inch Electric Bicycle Wheel Rim

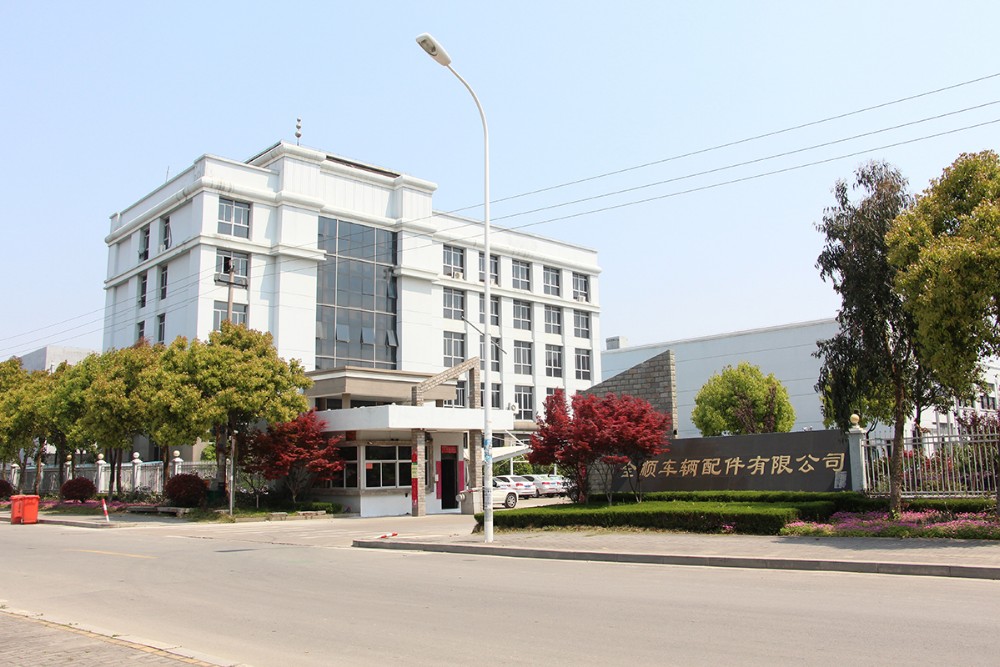

Taizhou Quanshun Vehicle Accessories Co., Ltd. is located in Luqiao district, Taizhou city, Zhejiang province, east well-developed China. We're a leading manufacture for aluminum alloy wheel rims of E-scooter In China. After 14 years of endeavor in the field of aluminum alloy wheel rims industry, Quanshun has established strong brand recognition in the aluminum wheel markets. Now, Taizhou Quanshun is a supplier of Bosch (Germany).
Quanshun Focuses on quality control and quality improvement:
1. The quality management is a direct responsibility of the general manager; Quanshun has set up the quality inspection department and the inspection and testing center to ensure the authority and the uniqueness of quality control.
2. The testing machineries keep the wheel rim's quality steady. Quanshun has a series of testing equipments: spectroanalysis intrument, hardness tester, impact testing machine etc, which guarantee the superior quality of the process from aluminum material to end products.
3. T6 heat treating line improves the quality of aluminum wheel rim to a great extent comparing with other E-scooter wheel rim manufacturers.
4. 6S management improves factory environment, staff quality and production safety.
Quanshun's vision
Meet the Challenge and Never Compromise
Customer Supreme, Quality First, Continuous Innovation.
There are Electric Balanced Scooter Wheel Rim (6inch to 6.5inch), Electric Harley Motorcycler Wheel Rim(6inch to 14inch), Electric Bicycle Wheel Rim (12inch to 20inch), Electric Motorcycle Wheel Rim (10-12inch), Customized Wheel Rim (open new mold avaiable).
Electric Bicycle Wheel, 10inch to 20inch (bicycle wheel)
For Electric bibycle wheel, the size it base on the diameter with tire.
E.g. 20X2.125inch wheel, it could fit with 20X2.125inch wheel. The diameter of wheel mounted with tire is 20inch.
Difference between Bicycle & Moped Standard Wheel
Bicycle Wheel, the size base on the diameter with tire.

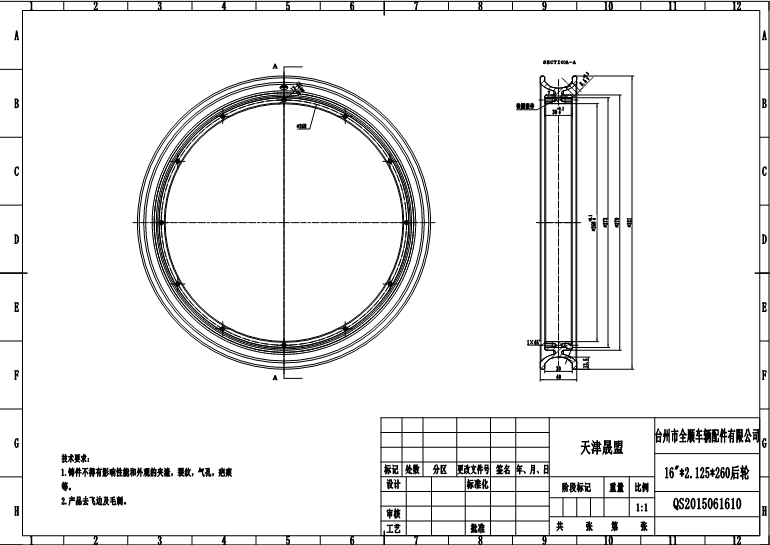

E.g. 20X2.125inch wheel, the diameter of wheel is 421mm(refer to attached drawing).
it could fit with 20X2.125inch bicycle wheel,The diameter of wheel mounted with tire is 20inch.
Moped Wheel, the size base on the diameter of wheel (not mounted with tire).
E.g. 10X2.15inch wheel, the diameter of wheel is 253.2mm (to be mounted with tire).
it could fit with 10X3.0inch moped tire.
Product & Price List
| Electric Bicycle Wheel |
| Size |
F/R |
Model & Brake |
Price |
| Sample |
50 |
100 |
1000 |
| 10X2.5 |
R |
105 35H & 36H |
$9.6 |
$8.5 |
$8.0 |
$5.6 |
| 10X2.125 |
R |
112 |
$9.6 |
$8.5 |
$8.0 |
$5.6 |
| 12X2.5 |
F |
GT Tubeless |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 12X2.5 |
R |
GT Tubeless |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 12X3.0 |
R |
GT Tubeless |
$12.7 |
$11.3 |
$10.6 |
$7.4 |
| 12X1.75 |
F |
Wuxing |
$9.6 |
$8.5 |
$8.0 |
$5.6 |
| 12X1.75 |
R |
Wuxing |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X1.75 |
F |
Bicycle |
$11.8 |
$10.5 |
$9.8 |
$6.9 |
| 14X1.75 |
R |
Bicycle |
$11.8 |
$10.5 |
$9.8 |
$6.9 |
| 14X1.75 |
F |
Fengshen |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X1.75 |
R |
Fengshen |
$11.1 |
$9.9 |
$9.3 |
$6.5 |
| 14X2.125 |
F |
Shijin |
$0.0 |
$0.0 |
$0.0 |
$0.0 |
| 14X2.125 |
F |
Bawang |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X2.125 |
F&R |
Bosch |
$0.0 |
$0.0 |
$0.0 |
$0.0 |
| 14X2.125 |
F |
Baoma V2 |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X2.125 |
/ |
Dual Wheel |
$0.0 |
$0.0 |
$0.0 |
$0.0 |
| 14X2.125 |
F |
Huanyin |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X2.125 |
F |
Kayan |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X2.125 |
F |
Jinghua |
$10.2 |
$9.1 |
$8.5 |
$5.9 |
| 14X2.125 |
R |
205 |
$10.8 |
$9.6 |
$9.0 |
$6.3 |
| 14X2.5 |
F |
Baoma V2 |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 14X2.5 |
F |
Baoma |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 14X2.5 |
R |
Baoma |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 14X2.5 |
F |
Kayan |
/ |
/ |
/ |
/ |
| 14X2.75 |
R |
205 Tubeless |
/ |
/ |
/ |
/ |
| 16X1.75 |
F |
Bicycle |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |
R |
Bicycle |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |
F |
16 Spoke |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |
R |
16 Spoke |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |
F |
Fengshen |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |
R |
Fengshen |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |

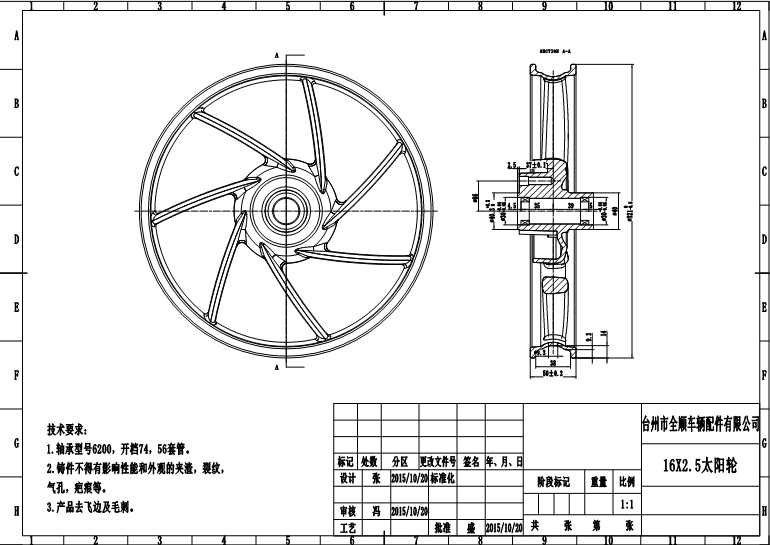

F |
Taiyanghua |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X1.75 |
R |
Taiyanghua |
$12.4 |
$11.0 |
$10.4 |
$7.2 |
| 16X2.125 |
F |
10 Spoke |
/ |
/ |
/ |
/ |
| 16X2.125 |
F |
Baoma |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Baoma |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Bawang |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Bawang |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Tricycle Liutiao |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Tricycle Liutiao |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Jinghua |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Jinghua |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Jiama V1 |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Jiama V1 |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Bosch |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Bosch 205 35 & 40 |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Yanguang |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Yanguang |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Baoma V2 |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
F |
Huanying |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Huanying |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
R |
260 25H & 28H |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.5 |
R |
260 |
$12.7 |
$11.3 |
$10.6 |
$7.4 |

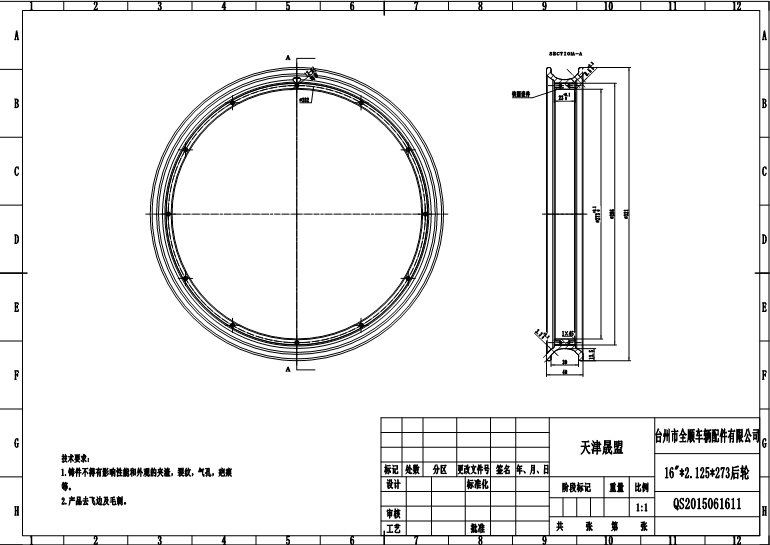

| 16X2.125 |
R |
273 |
$0.0 |
$0.0 |
$0.0 |
$0.0 |
| 16X2.5 |
R |
273 |
$0.0 |
$0.0 |
$0.0 |
$0.0 |
| 16X2.125 |
F |
Fuxing |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Fuxing |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
Meihua |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
Meihua |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
F |
16 Spoke |
$11.5 |
$10.2 |
$9.6 |
$6.7 |
| 16X2.125 |
R |
16 Spoke |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
R |
Kayan 204 |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.125 |
R |
Niujiao Tubeless |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 16X2.5 |
F |
Shunfeng |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 16X2.5 |
F&R |
Bosch |
$28.0 |
$24.9 |
$23.4 |
$16.3 |
| 16X2.5 |
F&R |
Shibazhua Disc |
$28.0 |
$24.9 |
$23.4 |
$16.3 |
| 16X2.5 |
F |
Jinghua |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 16X2.5 |
R |
Jinghua |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 16X2.5 |
F |
Shibazhua Drum |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 16X2.5 |
F |
Shunfeng 110 Drum |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 16X2.5 |
R |
Shunfeng |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 16X2.5 |
F |
Kayan Drum Tube & Tubeless |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 16X2.5 |
R |
Kayan |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 16X2.5 |
F |
Aima 110 Drum |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 16X2.5 |
R |
Aima Tubelss |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 16X2.5 |
R |
Aima Tube |
$12.7 |
$11.3 |
$10.6 |
$7.4 |
| 16X2.5 |
F |
Kayan Tubelss |
$14.0 |
$12.5 |
$11.7 |
$8.2 |
| 16X2.5 |
F |
Kayan Tube |
$12.1 |
$10.8 |
$10.1 |
$7.1 |
| 18X2.125 |
F |
Baoma |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 18X2.125 |
R |
Baoma |
$13.7 |
$12.2 |
$11.4 |
$8.0 |
| 18X2.125 |
F |
Huanying |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 18X2.125 |
R |
Huanying |
$13.7 |
$12.2 |
$11.4 |
$8.0 |
| 18X2.125 |
F |
Zhuifeng |
$13.1 |
$11.6 |
$10.9 |
$7.6 |
| 18X2.125 |
R |
Zhuifeng |
$13.7 |
$12.2 |
$11.4 |
$8.0 |

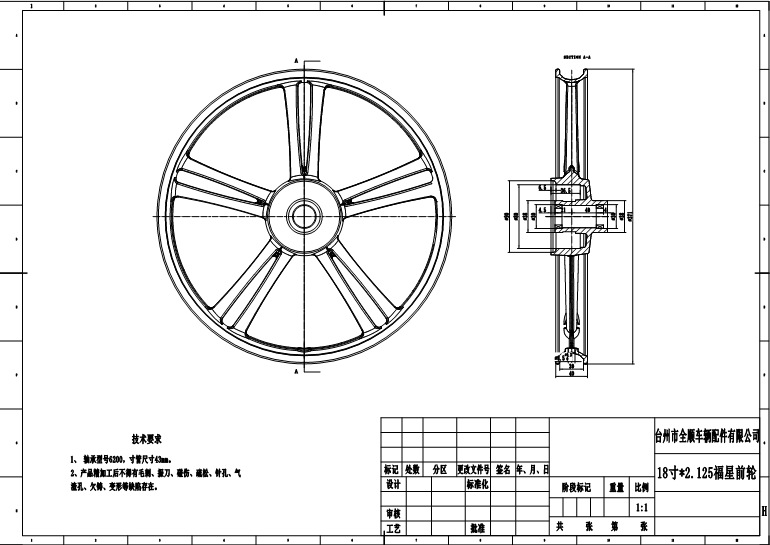

| 18X2.125 |
F |
Fuxing |
$13.4 |
$11.9 |
$11.1 |
$7.8 |
| 18X2.125 |
R |
Fuxing |
$14.0 |
$12.5 |
$11.7 |
$8.2 |
| 18X2.5 |
F |
Zaizhongwang |
$13.7 |
$12.2 |
$11.4 |
$8.0 |
| 18X2.5 |
R |
Zaizhongwang |
$14.3 |
$12.7 |
$11.9 |
$8.4 |
| 20x2.125 |
F |
Zhuifeng |
$18.2 |
$16.2 |
$15.8 |
$11.0 |
| 20x2.125 |
R |
Zhuifeng |
$18.8 |
$16.8 |
$16.3 |
$11.4 |
| 20x2.125 |
F |
Heitaiyang |
/ |
/ |
/ |
/ |
| 20x2.125 |
R |
Heitaiyang |
/ |
/ |
/ |
/ |
| 20x2.125 |
F |
Hengtai |
/ |
/ |
/ |
/ |
| 20x2.125 |
R |
Hengtai |
/ |
/ |
/ |
/ |
|
PS. Above price base on the wheel in store, if any modification (e.g. color), the cost will increase much.
The quotation is base on demostic standard, not include T6 heat treatment.
If need T6 heat treatment, there will be extra USD 1.0 per wheel (for less than 500pcs).
For finished wheels in store, it's not avaiable with T6 heat treatment.
What’s the meaning of model name?
QS12B-175DU01F
▪ QS-Brand QS
▪ 12B-Bicycle wheel size 12inch
▪ 175-wheel width 1.75inch
▪ DS-disc / DU-drum
▪ 01-design No.
▪ F-front / R-rear
QS Wheel Specification

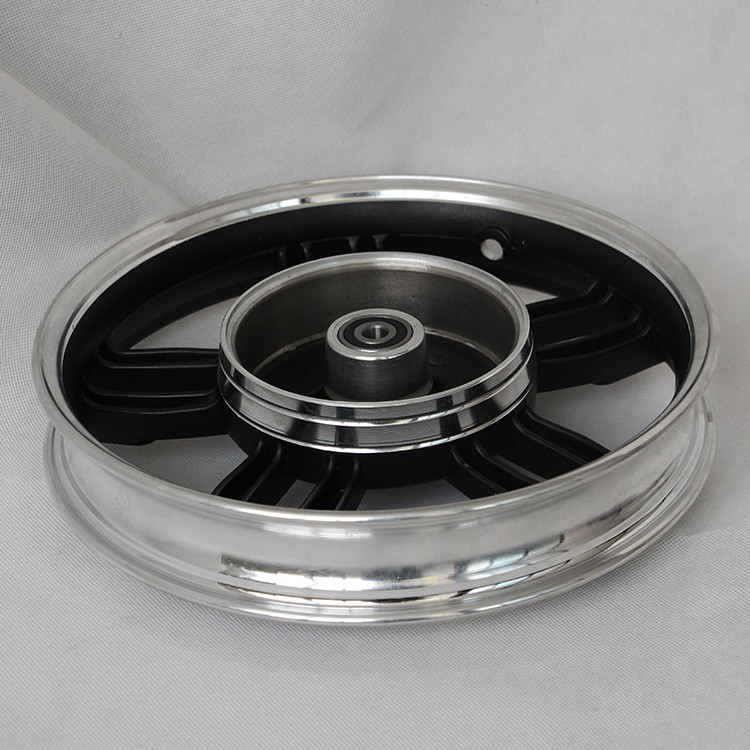

QS Wheel 10inch Electric Bicycle Rear wheel Rim
There are 10X2.125inch & 10X2.5inch.
10X2.125inch

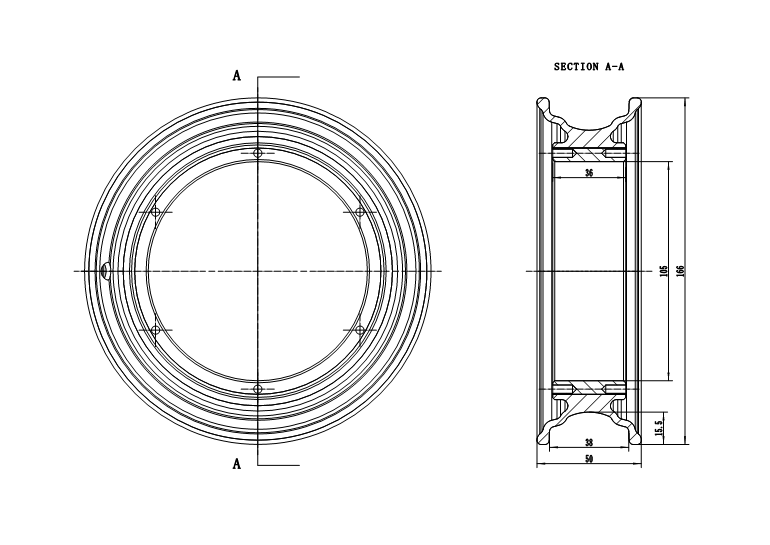

1. 10X2.125inch 112X35H Wheel
10X2.5inch
1. 10X2.5inch, 105X35H/36H Wheel

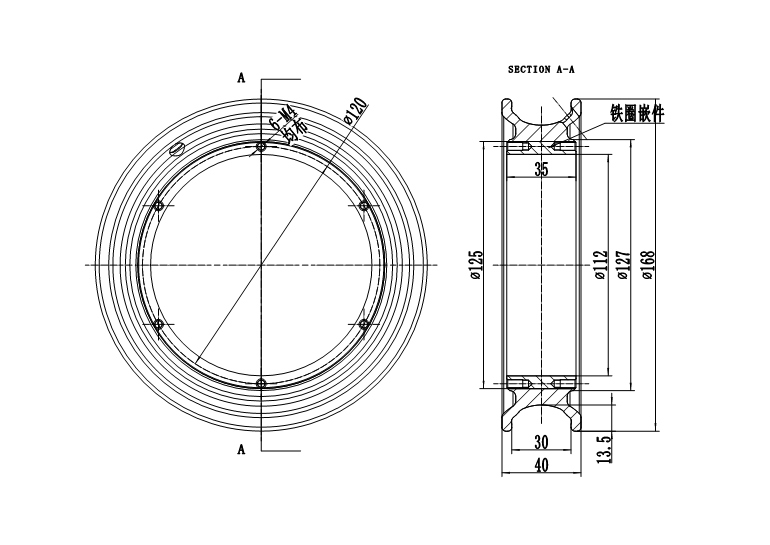

10X2.125inch
1. 10X2.125inch 112X35H Wheel
112 is the diameter of hoop, 35H mean the width of hoop.
10X2.5inch
1. 10X2.5inch, 105X35H/36H Wheel (generally it's 36H)
105 is the diameter of hoop, 35H mean the width of hoop.
QS Wheel 12inch Electric Bicycle Front & Rear wheel Rim
There are 12X1.75inch & 12X2.5inch.
12X1.75inch

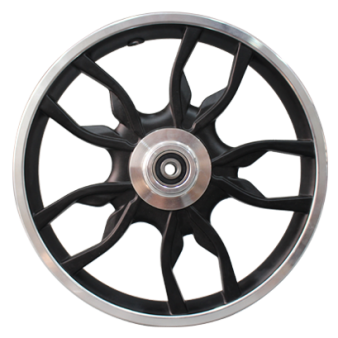

1. 12X1.75inch Wuxing Front & Rear Wheel
12X2.5inch
1. 12X2.5inch GT Front & Rear Wheel
12X1.75inch
1. 12X1.75inch Wuxing Front & Rear Wheel
QS12B-175DU01F QS12B-17501R
| QS12B-175DU01F |
| Brand |
QS |
| Wheel size |
12x1.75inch |
| Diameter |
218mm |
| Width |
35mm |
| Matching Tire |
Tube Tire, 12X1.75inch |
| Brake |
Drum |
| Brake Hub |
80mm |
| Design No. |
01 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
| QS12B-17501R |
| Brand |
QS |
| Wheel size |
12x1.75inch |
| Diameter |
218mm |
| Width |
35mm |
| Iron Hoop Width |
35/38 |
| Inner Diameter |
154 mm |
| Matching Tire |
Tube Tire, 12X1.75inch |
| Design No. |
01 |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Rear Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
12X2.5inch
1. 12X2.5inch GT Front & Rear Wheel
12X2.5inch GT Front Wheel, Drum Brake 80mm.
12X2.5inchX154X35H & 12X3.0inchX154X40H rear wheel (TUBELESS)
QS Wheel 14inch Electric Bicycle Front & Rear wheel Rim
There are 14X1.75inch, 14X2.125inch, 14X2.5inch & 14X2.75inch.
14X1.75inch
1. 14X1.75inch Bicycle Front & Rear Wheel Rim
2. 14X1.75inch Fengshen Front & Rear Wheel Rim
14X2.125inch
1.14X2.125inch Shijin Front Wheel (not available)
2.14X2.125inch Bawang Front Wheel

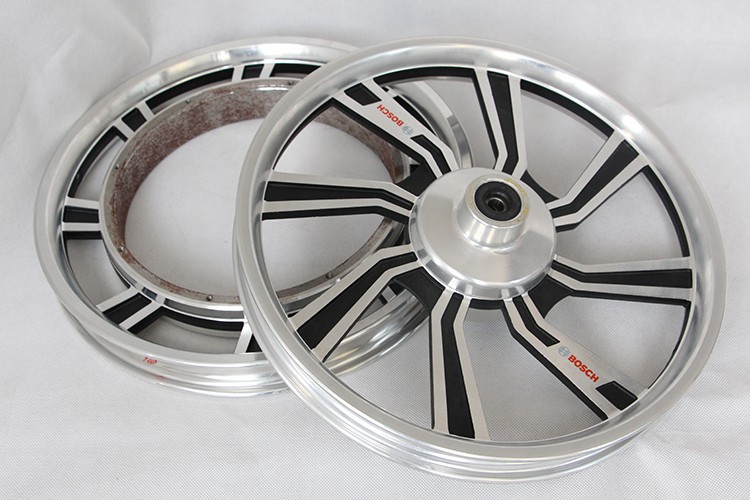

3.14X2.125inch Bosch Front & Rear Wheel (customized, not avaiable)
4.14X2.125inch Baoma V2 Front Wheel
5.14X2.125inch Dual Wheel (not avaiable).
6.14X2.125inch Huanyin Front Wheel.
7.14X2.125inch Kayan Front Wheel
8.14X2.125inch Jinghua Front Wheel
9.14X2.125inch Rear Wheel
14X2.5inch
1.14X2.5inch Baoma V2 Front Wheel
2.14X2.5inch Baoma Front Wheel
3.14X2.5inch Kayan Front Wheel
14X2.75inch Wheel
1.14X2.75inch Rear Wheel (Tubeless)
14X1.75inch

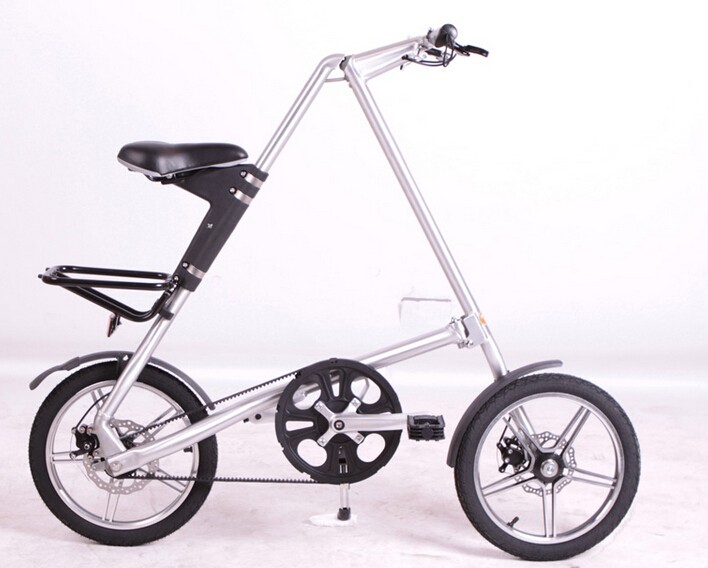

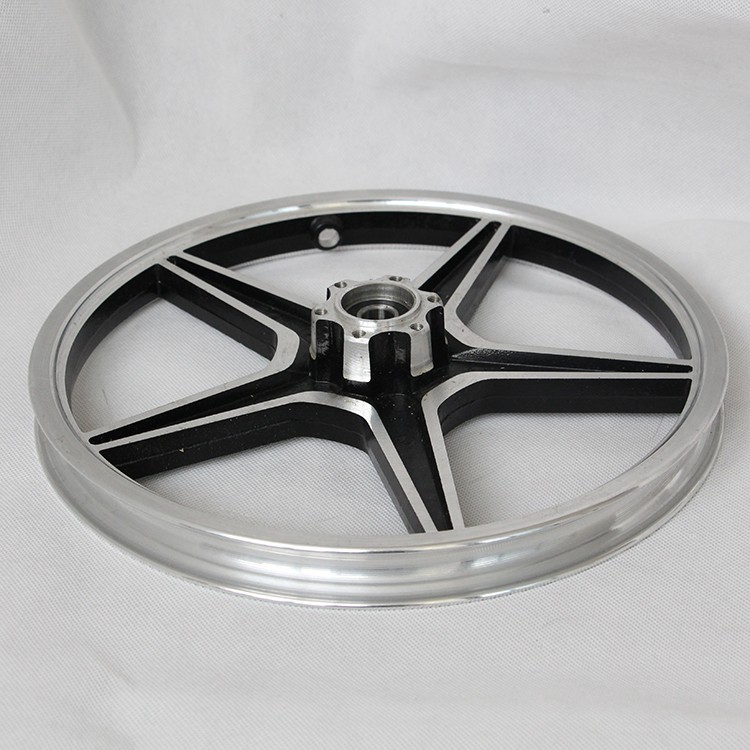

1. 14X1.75inch Bicycle Front & Rear Wheel Rim
QS14B-175DS01F QS14B-175DS01R
| QS14B-175DS01F |
| Brand |
QS |
| Wheel size |
14x1.75inch |
| Diameter |
268mm |
| Width |
26mm |
| Matching Tire |
Tube Tire, 14X175inch |
| Brake |
Disc |
| Brake Hub |
PCD6*44mm, M5 |
| Design No. |
01 |
| Bearing Model |
6001 |
| Axle Diameter |
12mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
| QS14B-175DS01R |
| Brand |
QS |
| Wheel size |
14x1.75inch |
| Diameter |
268mm |
| Width |
26mm |
| Matching Tire |
Tube Tire, 14X175inch |
| Brake |
Disc |
| Brake Hub |
PCD6*44mm, M5 |
| Design No. |
01 |
| Bearing Model |
6001 |
| Axle Diameter |
12mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Rear Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|

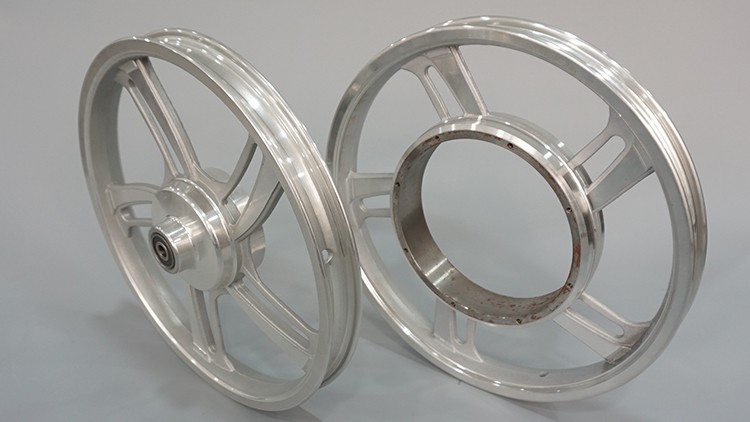

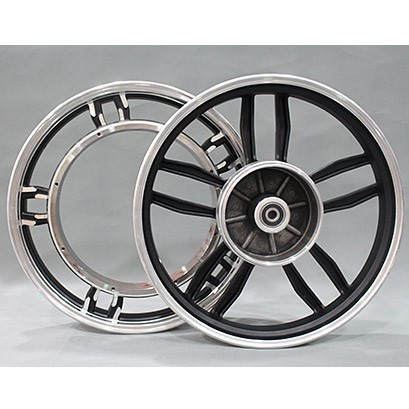

2. 14X1.75inch Fengshen Front & Rear Wheel Rim
QS14B-175DU02F QS14B-17502R
| QS14B-175DU02F |
| Brand |
QS |
| Wheel size |
14x1.75inch |
| Diameter |
270.5mm |
| Width |
35mm |
| Matching Tire |
Tube Tire, 14X1.75inch |
| Brake |
Drum |
| Brake Hub |
80mm |
| Design No. |
02 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
| QS14B-17502R |
| Brand |
QS |
| Wheel size |
14x1.75inch |
| Diameter |
270.5mm |
| Width |
35mm |
| Iron Hoop Width |
35 |
| Inner Diameter |
154 mm |
| Matching Tire |
Tube Tire, 14X1.75inch |
| Design No. |
02 |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Rear Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
14X2.125 Wheel
1.14X2.125inch Shijin Front Wheel (not available)
Drum Brake 80mm
QS14B-2125DU03F
| QS14B-2125DU03F |
| Brand |
QS |
| Wheel size |
14x2.125inch |
| Diameter |
270.5mm |
| Width |
40mm |
| Matching Tire |
Tube Tire, 14X2.125inch |
| Brake |
Drum |
| Brake Hub |
Ø80mm |
| Design No. |
03 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
2.14X2.125inch Bawang Front Wheel
Drum Brake 80mm
QS14B-2125DU04F
| QS14B-2125DU04F |
| Brand |
QS |
| Wheel size |
14x2.125inch |
| Diameter |
270.5mm |
| Width |
40mm |
| Matching Tire |
Tube Tire, 14X2.125inch |
| Brake |
Drum |
| Brake Hub |
Ø80mm |
| Design No. |
04 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|

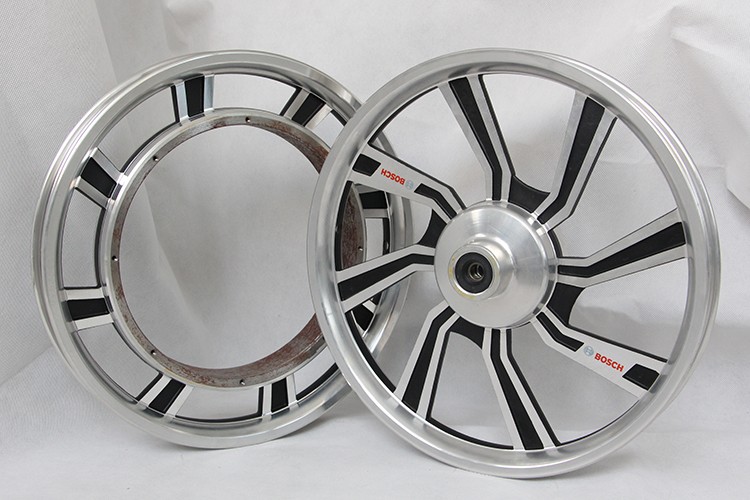

3.14X2.125inch Bosch Front & Rear Wheel (customized, not avaiable)
14X2.125inch Bosch Front Wheel, Drum Brake 80mm
14X2.125inch Bosch Rear Wheel, 205X30H & 205X40H.
QS14B-2125DU05F
| QS14B-2125DU05F |
| Brand |
QS |
| Wheel size |
14x2.125inch |
| Diameter |
270.5mm |
| Width |
40mm |
| Matching Tire |
Tube Tire, 14X2.125inch |
| Brake |
Drum |
| Brake Hub |
Ø80 mm |
| Design No. |
05 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
4.14X2.125inch Baoma V2 Front Wheel
Drum Brake 80mm
QS14B-2125DU06F
| QS14B-2125DU06F |
| Brand |
QS |
| Wheel size |
14x2.125inch |
| Diameter |
270.5mm |
| Width |
40mm |
| Matching Tire |
Tube Tire, 14X2.125inch |
| Brake |
Drum |
| Brake Hub |
Ø80 mm |
| Design No. |
06 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Unavailable |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
5.14X2.125inch Dual Wheel (not avaiable).
205X28H
6.14X2.125inch Huanyin Front Wheel.
Drum Brake 80mm
7.14X2.125inch Kayan Front Wheel
8.14X2.125inch Jinghua Front Wheel
9.14X2.125inch Rear Wheel
14X2.5inch
1.14X2.5inch Baoma V2 Front Wheel
2.14X2.5inch Baoma Front Wheel
QS14B-25DU07F
| QS14B-25DU07F |
| Brand |
QS |
| Wheel size |
14x2.5inch |
| Diameter |
270.5mm |
| Width |
49mm |
| Matching Tire |
Tube Tire, 14X2.5inch |
| Brake |
Drum |
| Brake Hub |
Ø80 mm |
| Design No. |
07 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
3.14X2.5inch Kayan Front Wheel
14X2.75inch Wheel

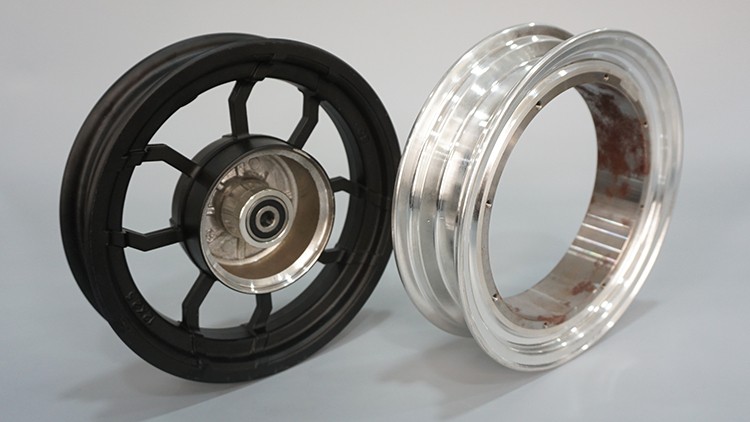

1.14X2.75inch Rear Wheel (Tubeless)
205X40H
16inch Wheel
There are 16X1.75inch, 16X2.125inch & 16X2.5inch.
16X1.75inch Wheel
1.16X1.75inch Bicycle Front & Rear Wheel
2.16X1.75inch 16 Spoke Front & Rear Wheel
3.16X1.75inch Fengshen Front & Rear Wheel
4.16X1.75inch Taiyanghua Front & Rear Wheel
16X2.125
1.16X2.125inch 10 Spoke Front Wheel (not avaialbe)
2.16X2.125inch Baoma Front & Rear Wheel
3.16X2.125inch Bawang Front & Rear Wheel
4.16X2.125inch Tricycle Liutiao Front & Rear Wheel
5. 16X2.125inch Jinghua Front & Rear Wheel
6. 16X2.125inch Jiama V1 Front & Rear Wheel
7. 16X2.125inch Bosch Front & Rear Wheel (Customized, not available)
8. 16X2.125inch Yanguang Front & Rear Wheel
9. 16X2.125inch Baoma V2 Front Wheel
10. 16X2.125inch Huanying Front & Rear Wheel
11. 16X2.125inch Fuxing Front & Rear Wheel
12. 16X2.125inch Meihua Front & Rear Wheel
13. 16X2.125inch 16 Spoke Front Wheel
14. 16X2.125inch Kayan Front Wheel (not avaialbe)
15. 16X2.125inch Niujiao Front & Rear Wheel (Tubeless)

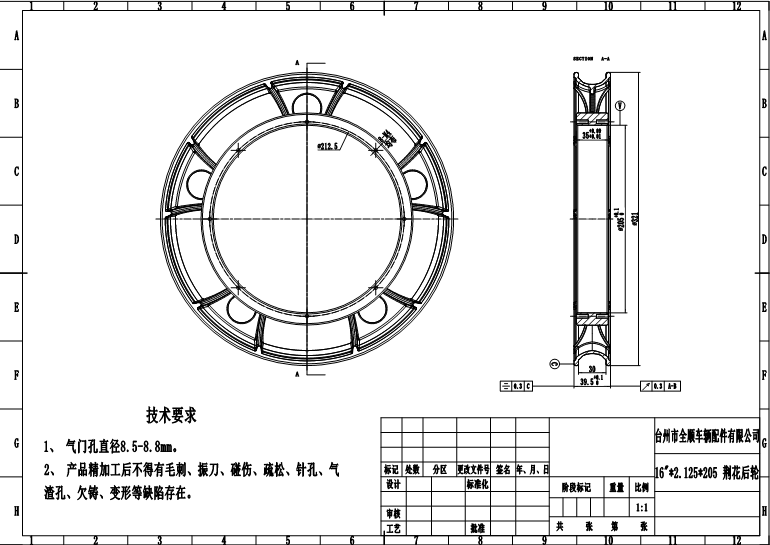

16. 16X2.125inch 260 Rear Wheel
17. 16X2.125inch 273 Rear Wheel
16X2.5
1.16X2.5inch Shunfeng Front Wheel
2. 16X2.5inch Bosch Front & Rear Wheel (customized, not available)
3.16X2.5inch Shibazhua Front Wheel
4. 16X2.5inch Jinghua Front & Rear Wheel
5. 16X2.5inch Taiyang Front & Rear Wheel
6.16X2.5inch Shibazhua Front Wheel
7. 16X2.5inch Shunfeng Front & Rear Wheel
8. 16X2.5inch Kayan Front & Rear Wheel
9. 16X2.5inch Aima Front & Rear Wheel
10.16X2.5inch Kayan Front Wheel (tube & tubeless wheel)

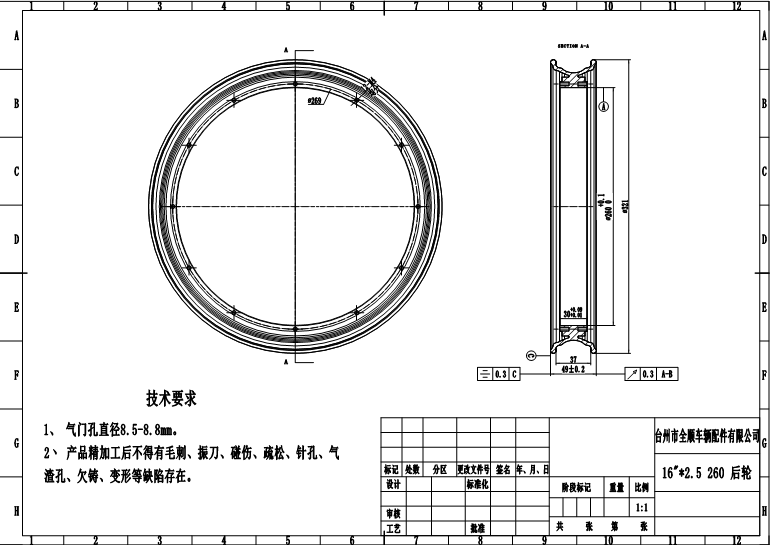

11.16X2.5inch 260X30H Rear Wheel
12.16X2.5inch 273X23H Rear Wheel
16X1.75inch Wheel

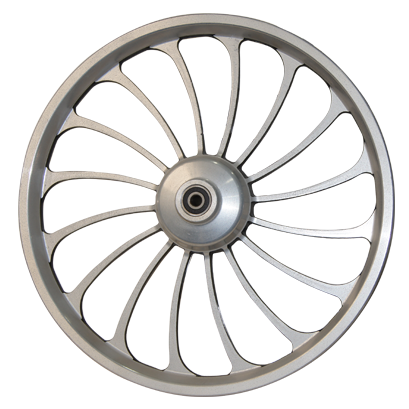

1.16X1.75inch Bicycle Front & Rear Wheel

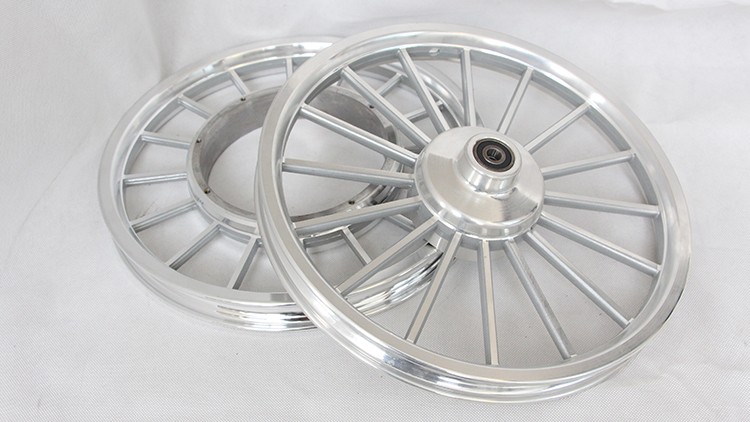

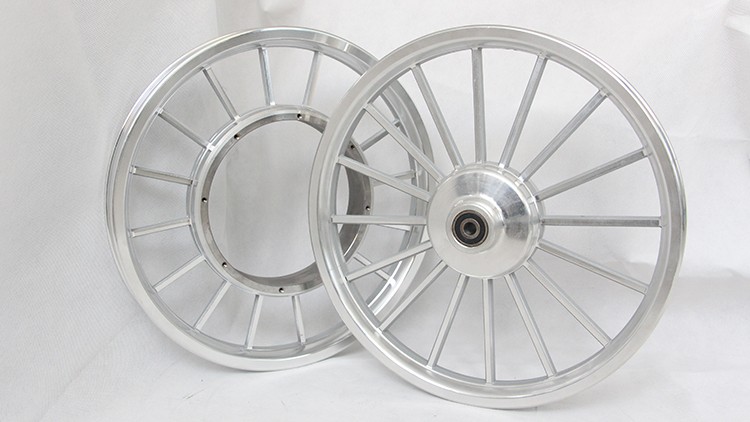

2.16X1.75inch 16 Spoke Front & Rear Wheel
16X1.75inch 16 Spoke Front Wheel, Drum Brake 80mm
16X1.75inch 16 Spoke Rear Wheel, 154X35H & 165X40H

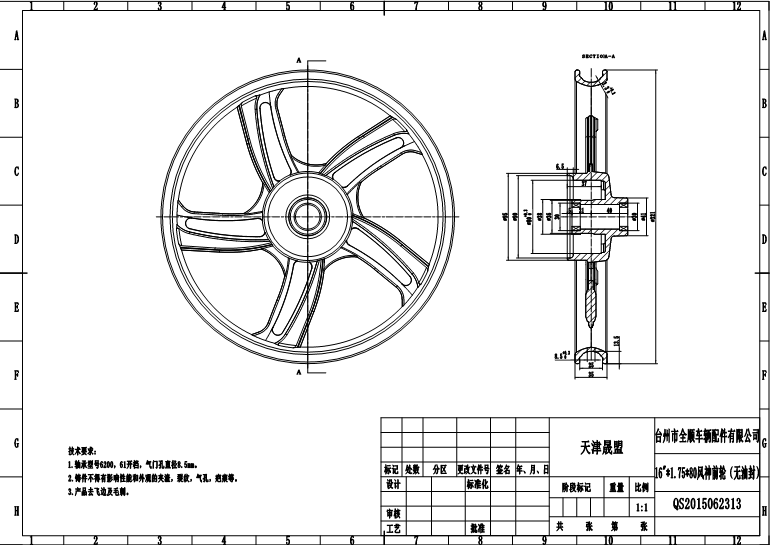

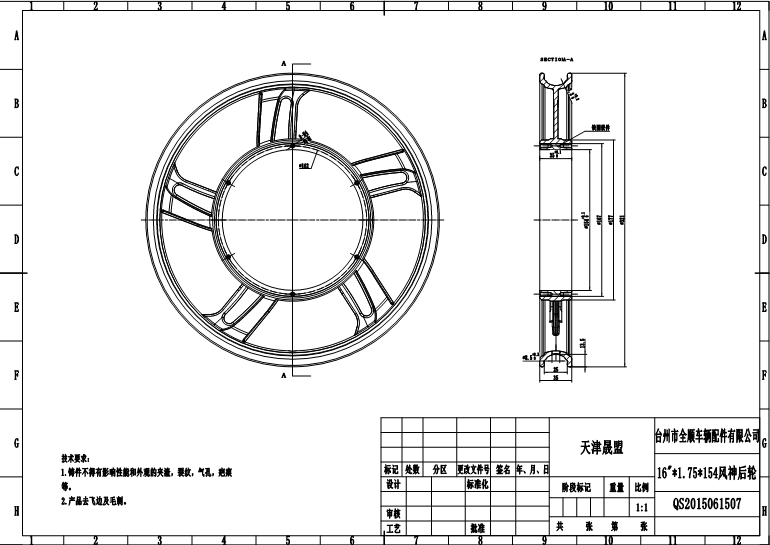

3.16X1.75inch Fengshen Front & Rear Wheel
16X1.75inch Fengshen Front & Rear Wheel, Drum Brake 80mm
16X1.75inch Fengshen Front & Rear Wheel, 154X35H
4.16X1.75inch Taiyanghua Front & Rear Wheel
16X1.75inch Taiyanghua Front & Rear Wheel, Drum Brake 80mm
16X1.75inch Fengshen Front & Rear Wheel, 154X35H
16X2.125
1.16X2.125inch 10 Spoke Front Wheel (not avaialbe)
Drum Brake 80mm

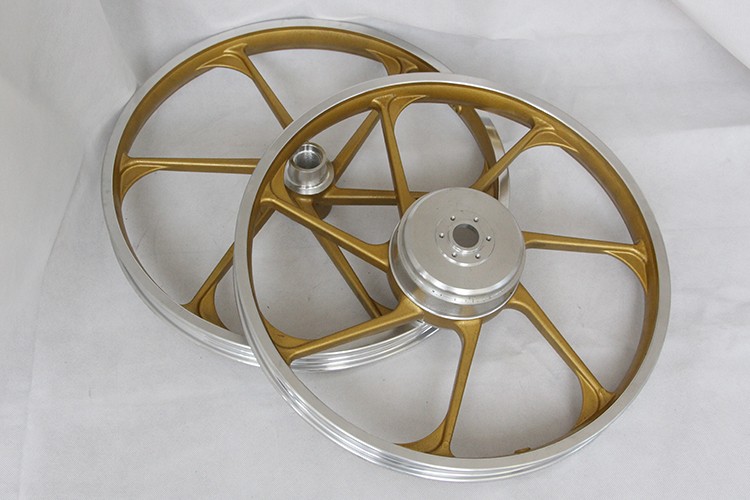

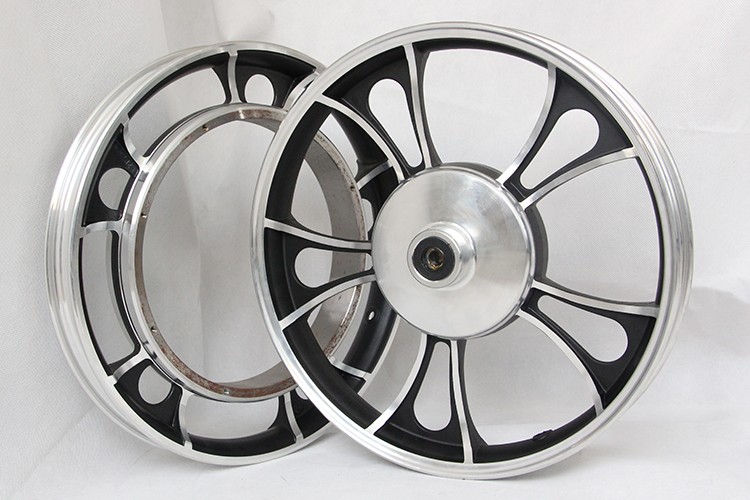

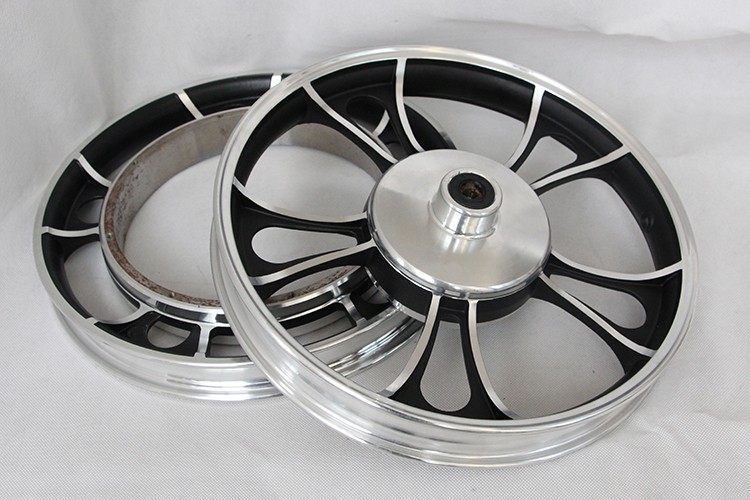

2.16X2.125inch Baoma Front & Rear Wheel
16X2.125inch Baoma Front Wheel, drumb brake 80mm
16X2.125inch Baoma Rear Wheel, 205X35H
3.16X2.125inch Bawang Front & Rear Wheel
16X2.125inch Baoma Front Wheel, drumb brake 80mm
16X2.125inch Baoma Rear Wheel, 205X35H
4.16X2.125inch Tricycle Liutiao Front & Rear Wheel
16X2.125inch Tricycle Liutiao Front Wheel , no brake
16X2.125inch Tricycle Liutiao Rear Wheel , no brake
5. 16X2.125inch Jinghua Front & Rear Wheel
16X2.125inch Jinghua Front Wheel, drumb brake 80mm
16X2.125inch Jinghua Rear Wheel, 205X35H
6. 16X2.125inch Jiama V1 Front & Rear Wheel
16X2.125inch Jiama V1 Front Wheel , drumb brake 80mm
16X2.125inch Jiama V1 Rear Wheel , 205X35H
7. 16X2.125inch Bosch Front & Rear Wheel (Customized, not available)
16X2.125inch Bosch Front Wheel, drumb brake 80mm
16X2.125inch Bosch Rear Wheel , 205X30H & 205X35H
8. 16X2.125inch Yanguang Front & Rear Wheel
16X2.125inch Yanguang Front Wheel, drumb brake 80mm
16X2.125inch Yangguang Rear Wheel , 205X30H & 205X35H
9. 16X2.125inch Baoma V2 Front Wheel
16X2.125inch Baoma V2 Front Wheel, drumb brake 80mm
10. 16X2.125inch Huanying Front & Rear Wheel
16X2.125inch Huanying Front Wheel, drumb brake 80mm
16X2.125inch Huanying Rear Wheel , 205X35H

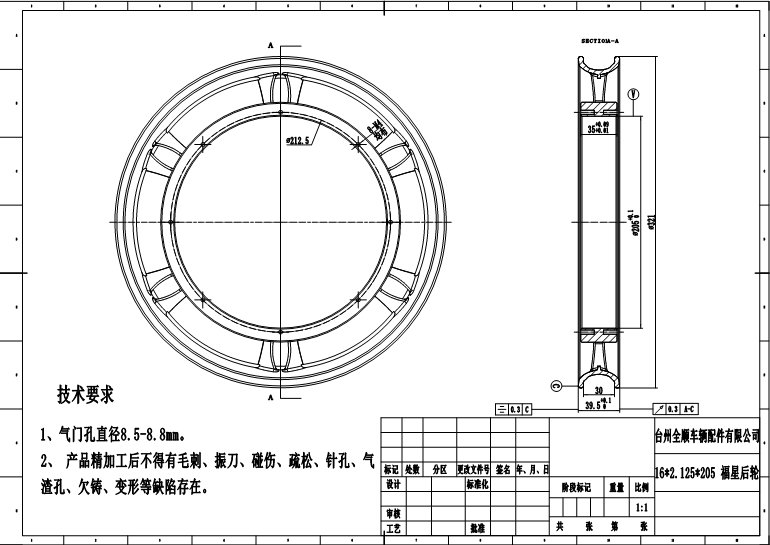

11. 16X2.125inch Fuxing Front & Rear Wheel
16X2.125inch Fuxing Front Wheel, drumb brake 80mm
16X2.125inch Fuxing Rear Wheel , 205X35H
12. 16X2.125inch Meihua Front & Rear Wheel
16X2.125inch Meihua Front Wheel, drumb brake 80mm
16X2.125inch Meihua Rear Wheel , 205X35H

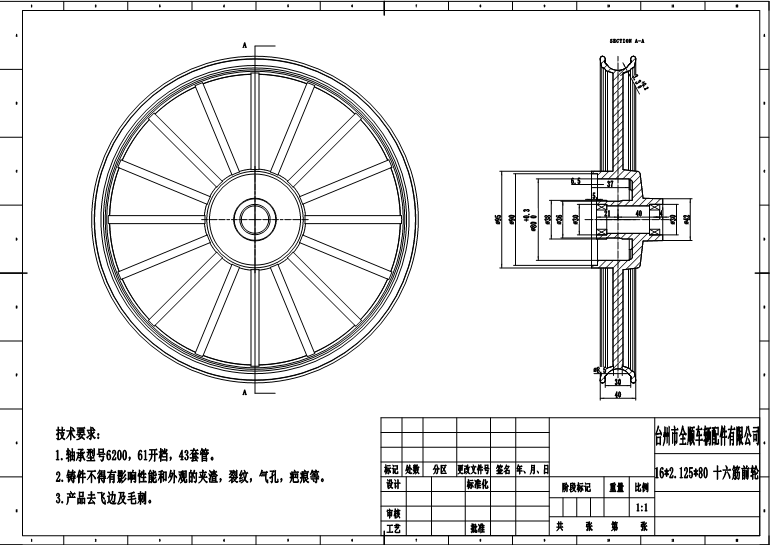

13. 16X2.125inch 16 Spoke Front Wheel
drumb brake 80mm
14. 16X2.125inch Kayan Front Wheel (not avaialbe)
204X35H

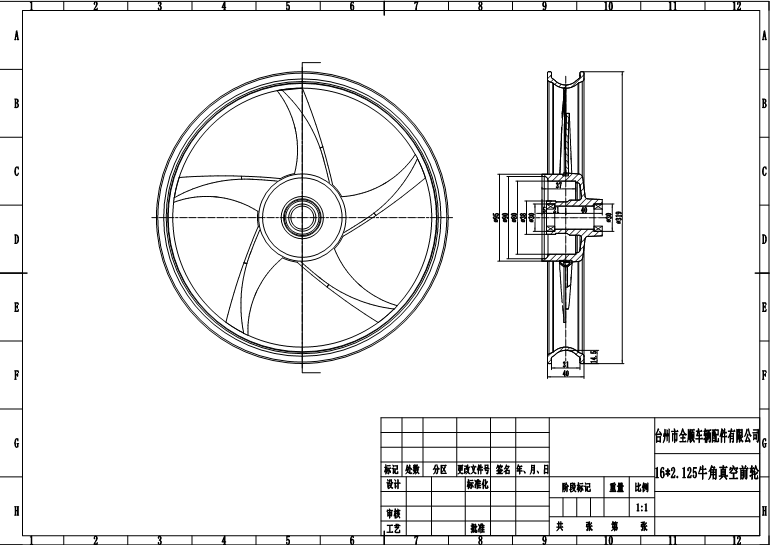

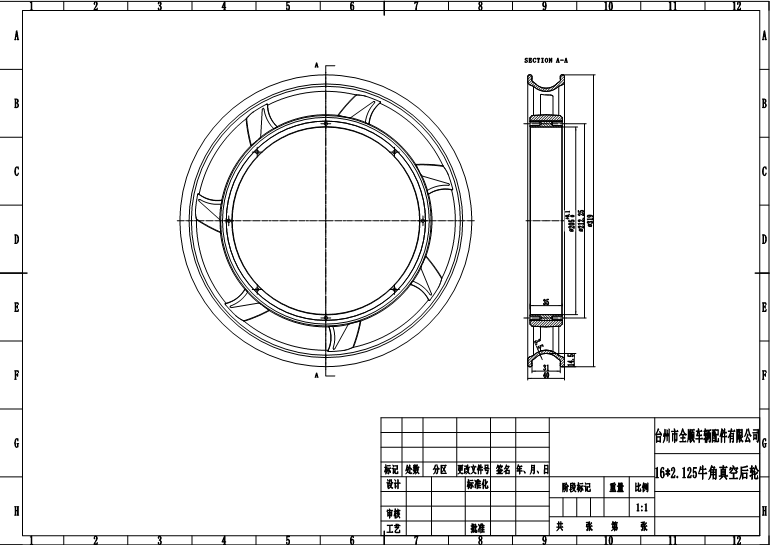

15. 16X2.125inch Niujiao Front & Rear Wheel (Tubeless)
16X2.125inch Niujiao Front Wheel, drumb brake 80mm
16X2.125inch Niujiao Rear Wheel , 205X35H
16. 16X2.125inch 260 Rear Wheel
260X30H
17. 16X2.125inch 273 Rear Wheel
273X23H
16X2.5inch
1.16X2.5inch Shunfeng Front Wheel
drumb brake 80mm
2. 16X2.5inch Bosch Front & Rear Wheel (customized, not available)
16X2.5inch Bosch Front Wheel, drumb brake 110mm
16X2.5inch Bosch Rear Wheel , 205X35H & 205X40H
3.16X2.5inch Shibazhua Front Wheel
CB 40mm. PCD3*66mm
4. 16X2.5inch Jinghua Front & Rear Wheel
16X2.5inch Jinghua Front Wheel, drumb brake 110mm
16X2.5inch Jinghua Rear Wheel , 205X35H & 205X40H

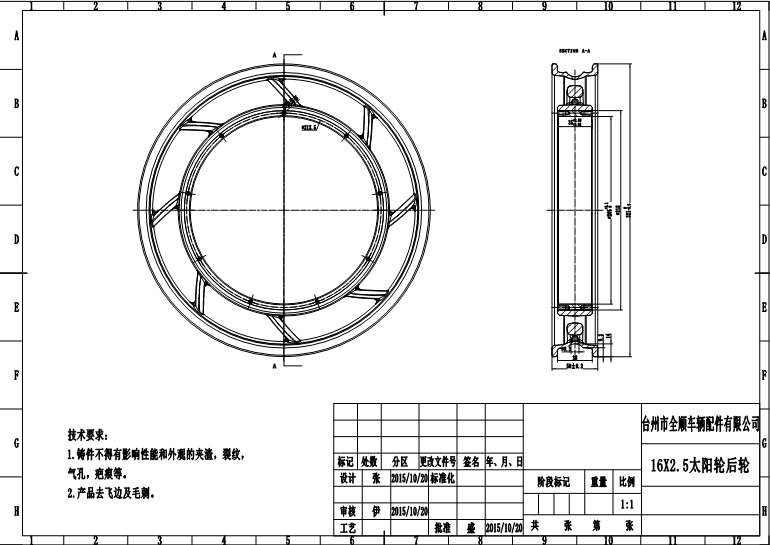

5. 16X2.5inch Taiyang Front & Rear Wheel

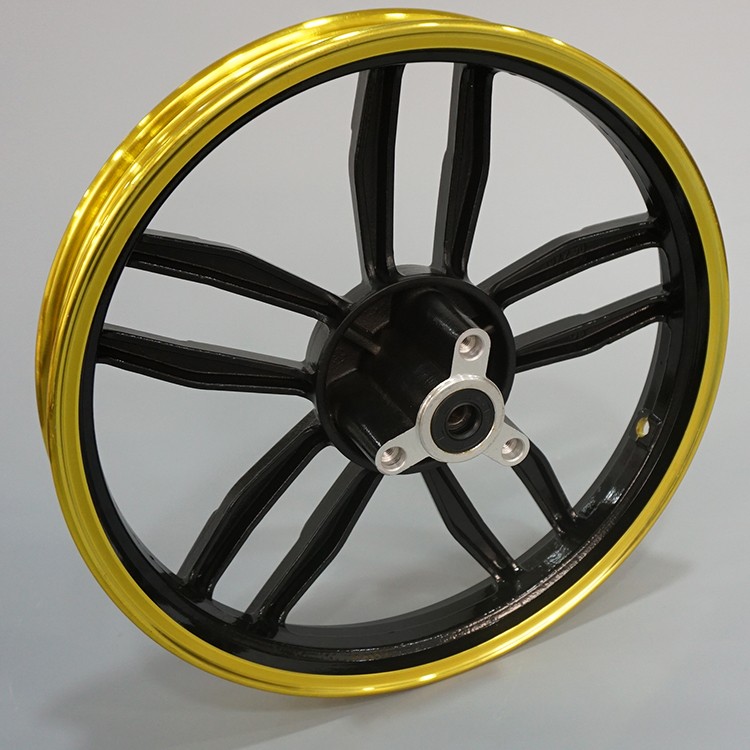

16X2.5inch Taiyang Front Wheel, disc brake CB40mm, PCD 3*66mm
16X2.5inch Taiyang Rear Wheel , 205X35H

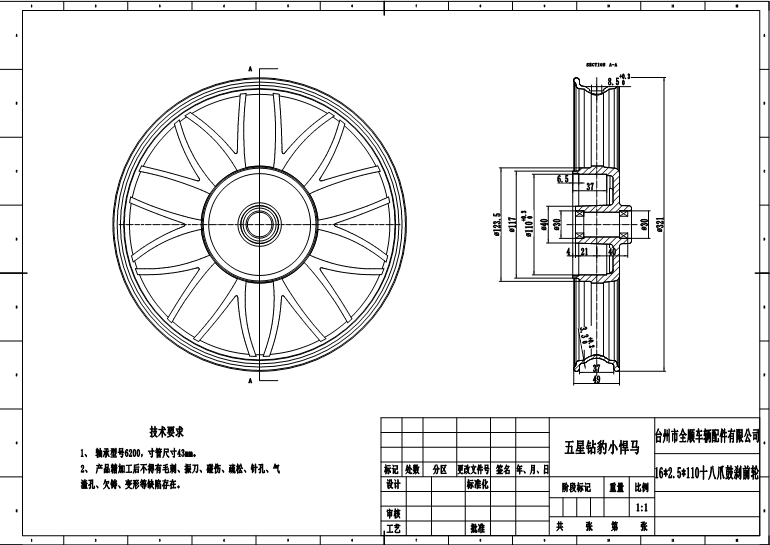

6.16X2.5inch Shibazhua Front Wheel
Drum Brake, 110mm
7. 16X2.5inch Shunfeng Front & Rear Wheel
16X2.5inch Shunfen Front Wheel, drum brake 110mm
16X2.5inch Shunfen Rear Wheel , 205X35H
8. 16X2.5inch Kayan Front & Rear Wheel
16X2.5inch Kayan Front Wheel, drum brake 110mm (there are tube wheel & tubeless wheel).
16X2.5inch Kayan Rear Wheel , 205X35H

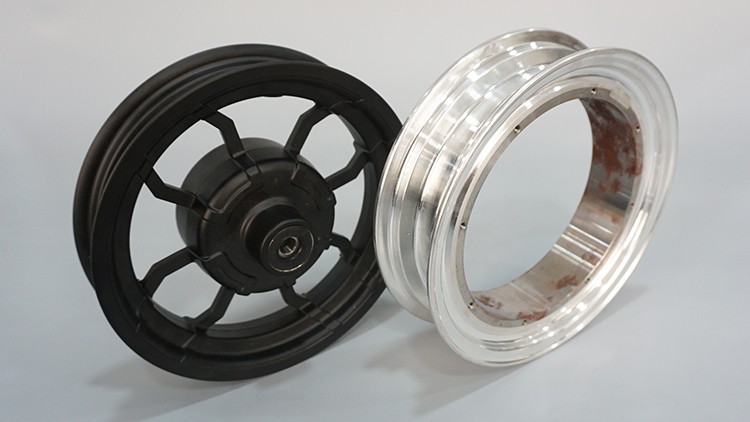

Tubeless Wheel (the low-pressure casting mould) Tubel Wheel (the high-pressure casting mould)
9. 16X2.5inch Aima Front & Rear Wheel
16X2.5inch Aima Front Wheel, drum brake 110mm
16X2.5inch Aima Rear Wheel , 205X35H (there are tube wheel & tubeless wheel).
10.16X2.5inch Kayan Front Wheel (tube & tubeless wheel)
Disc Brake CB40mm, PCD3*66mm
11.16X2.5inch 260X30H Rear Wheel
12.16X2.5inch 273X23H Rear Wheel
18inch Wheel
There are 18X2.125inch & 18X2.5inch.
18X2.125inch

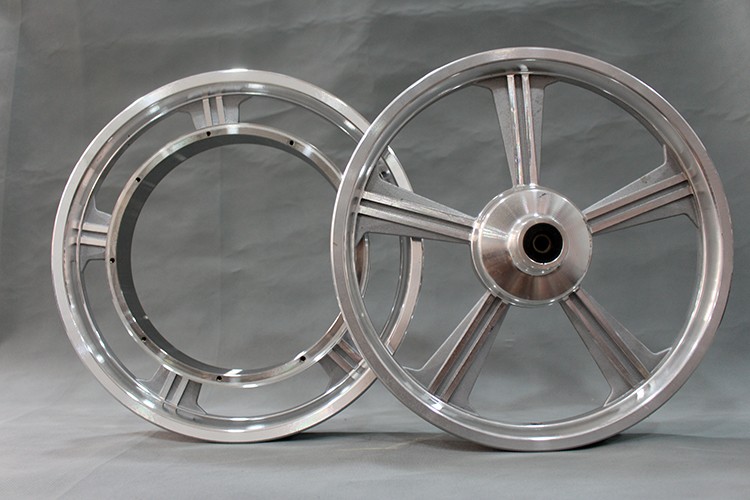

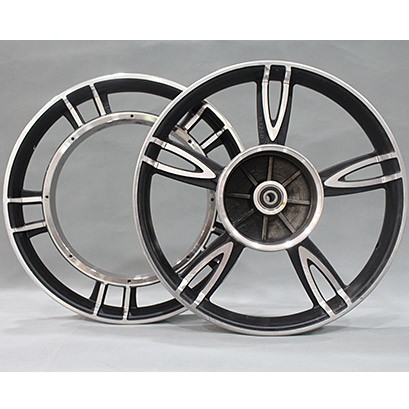

1. 18X2.125inch Baoma Front & Rear Wheel
2. 18X2.125inch Huanying Front & Rear Wheel
3. 18X2.125inch Zhuifeng Front & Rear Wheel
4. 18X2.125inch Fuxing Front & Rear Wheel
18X2.5inch
1. 18X2.5inch Zaizhongwang Front & Rear Wheel
18X2.125
1. 18X2.125inch Baoma Front & Rear Wheel
18X2.125inch Baoma Front Wheel, drum brake 80mm
18X2.125inch Baoma Rear Wheel , 205X35H.

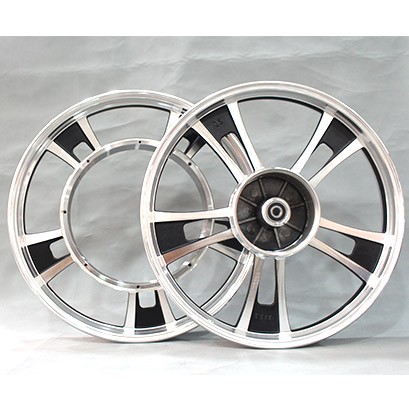

2. 18X2.125inch Huanying Front & Rear Wheel
18X2.125inch Baoma Front Wheel, drum brake 80mm
18X2.125inch Baoma Rear Wheel , 205X35H & 260X35H.

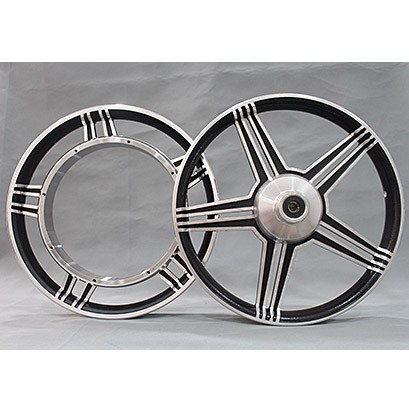

3. 18X2.125inch Zhuifeng Front & Rear Wheel
18X2.125inch Zhuifeng Front Wheel, drum brake 80mm & 110mm
18X2.125inch Zhuifeng Rear Wheel , 205X35H.

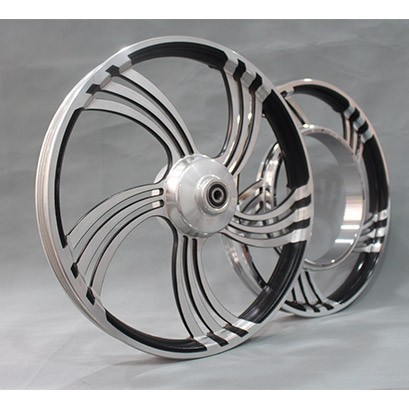

4. 18X2.125inch Fuxing Front & Rear Wheel
18X2.125inch Fuxing Front Wheel, drum brake 80mm
18X2.125inch Fuxing Rear Wheel , 205X35H.
18X2.5

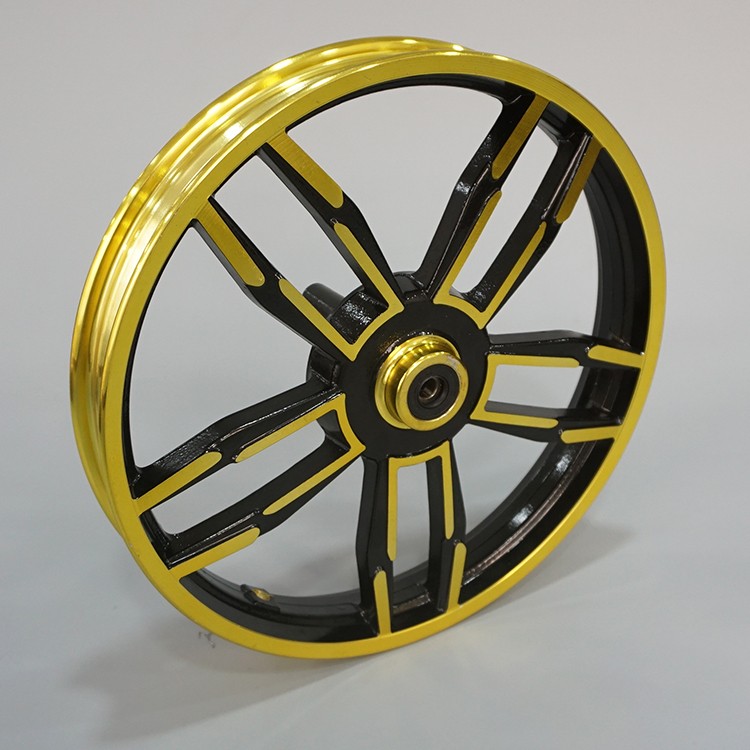

1. 18X2.5inch Zaizhongwang Front & Rear Wheel
18X2.5inch Zaizhongwang Front Wheel, drum brake 110mm
18X2.5inch Zaizhongwang Rear Wheel , 205X35H.
20inch Wheel
There is only 20X2.125inch.

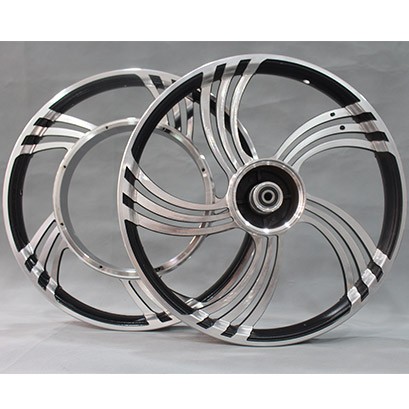

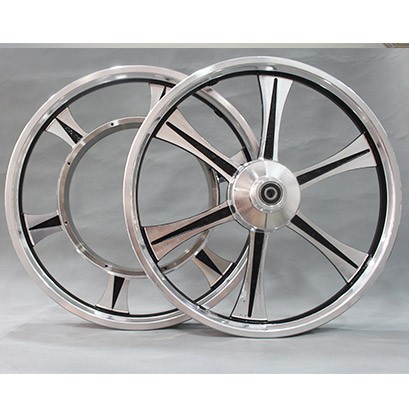

1. 20X2.125inch Zhuifeng Front & Rear Wheel
2. 20X2.125inch Heitaiyang Front & Rear Wheel
3. 20X2.125inch Hengtai Front & Rear Wheel (customized, not avaiable)
1. 20X2.125inch Zhuifeng Front & Rear Wheel
20X2.125inch Zhuifeng Front Wheel, drum brake 110mm
20X2.125inch Zhuifeng Rear Wheel , 205X35H.
QS20B-2125DU01F QS20B-212501R
| QS20B-2125DU01F |
| Brand |
QS |
| Wheel size |
20x2.125inch |
| Diameter |
421mm |
| Width |
45mm |
| Matching Tire |
Tube Tire, 20X2.125inch |
| Brake |
Drum |
| Brake Hub |
Ø110mm |
| Design No. |
01 |
| Bearing Model |
6200 |
| Axle Diameter |
10mm |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Front Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
| QS20B-212501R |
| Brand |
QS |
| Wheel size |
20x2.125inch |
| Diameter |
421mm |
| Width |
45mm |
| Iron Hoop Width |
35/52mm |
| Inner Diameter |
205 mm |
| Matching Tire |
Tube Tire, 20X2.125inch |
| Design No. |
01 |
| Material |
A356 Aluminum |
| T6 heat treatment |
Available |
| Application |
E-bike Rear Wheel |
| Certification |
ISO, CCC |
| Sevice |
OEM / ODM |
|
2. 20X2.125inch Heitaiyang Front & Rear Wheel
20X2.125inch Heitaiyang Front Wheel, drum brake 80mm
20X2.125inch Heitaiyang Rear Wheel , 205X35H.
3. 20X2.125inch Hengtai Front & Rear Wheel (customized, not avaiable)
20X2.125inch Hengtai Front Wheel, disc brake CB33mm, PCD6*44mm
20X2.125inch Hengtai Rear Wheel , disc brake CB33mm, PCD6*44mm
What’s the meaning of model name?
QS12B-175DU01F
▪ QS-Brand QS
▪ 12B-Bicycle wheel size 12inch
▪ 175-wheel width 1.75inch
▪ DS-disc / DU-drum
▪ 01-design No.
▪ F-front / R-rear
More QS Wheel Informaiton:

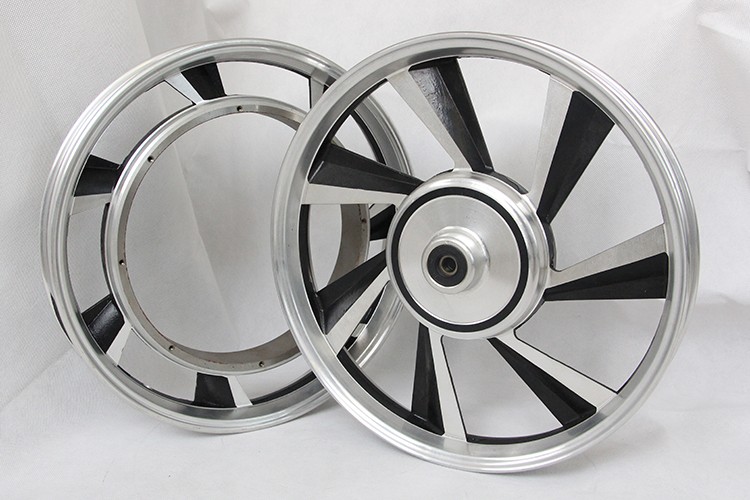

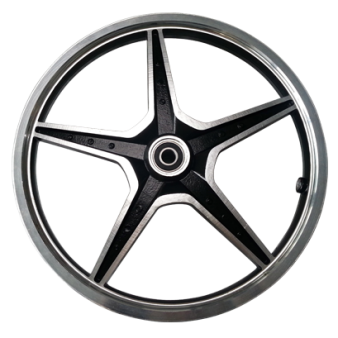

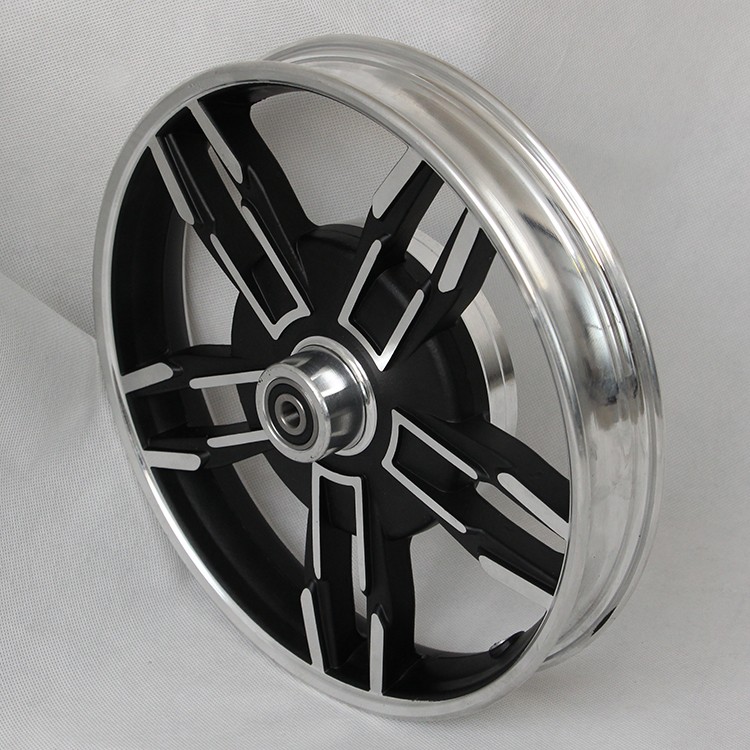

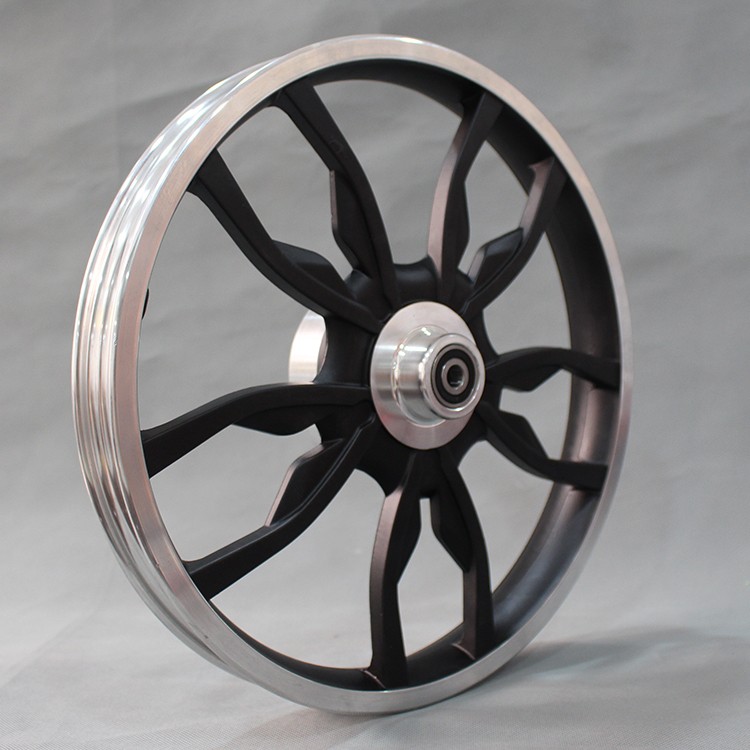

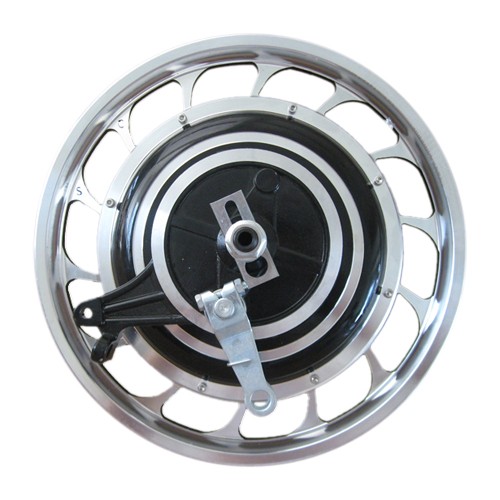

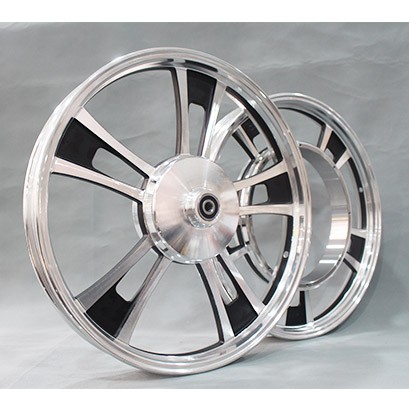

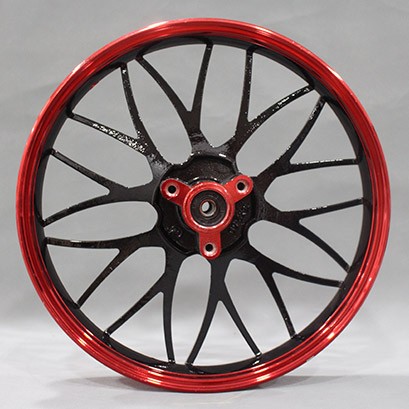

Optional Appearance

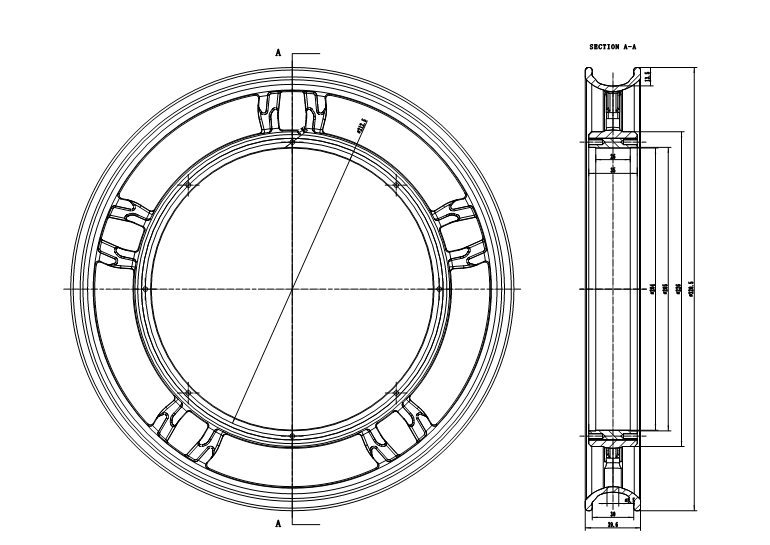

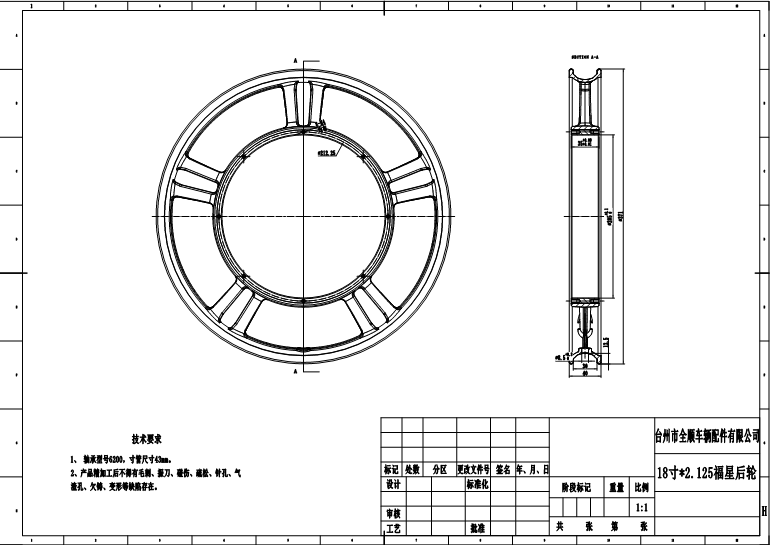

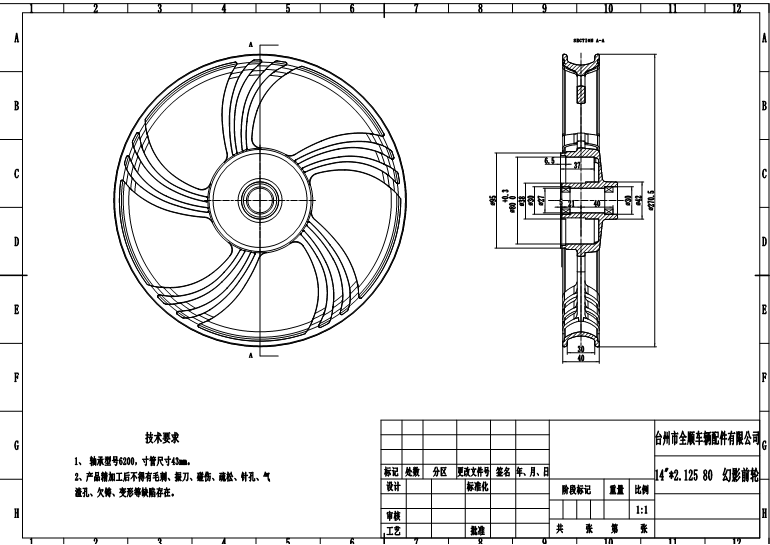

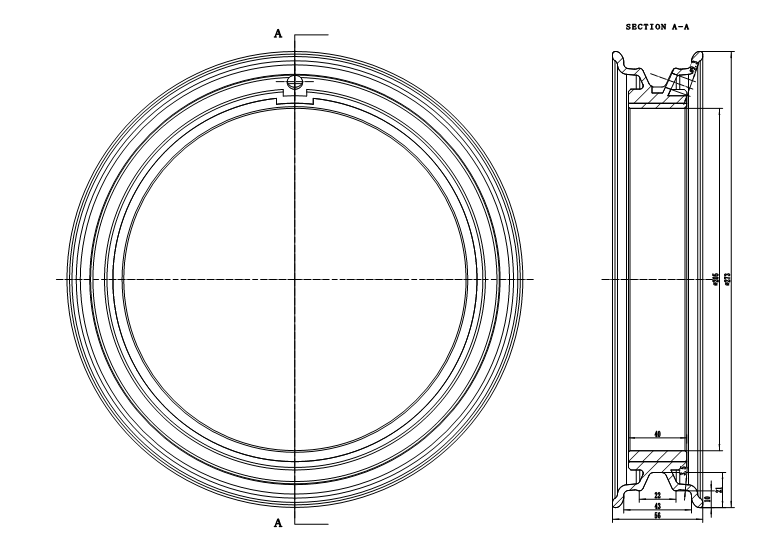

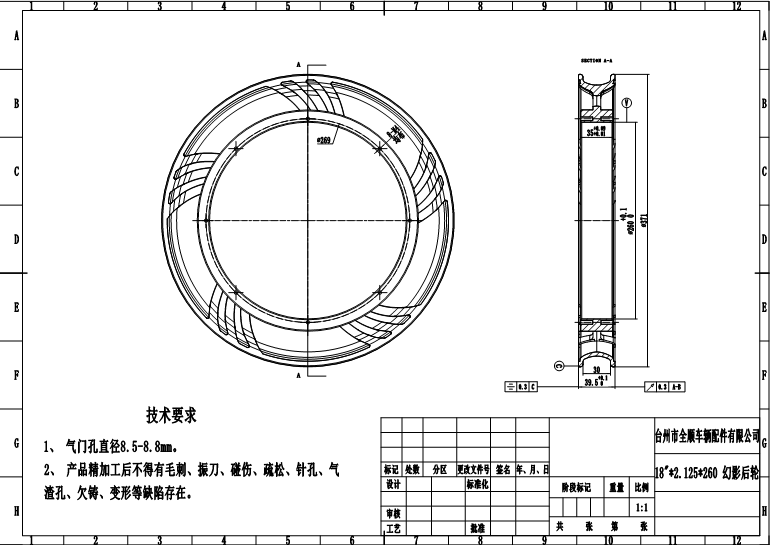

Motor Details, drawing(refer to attachment in PDF).
For more information, please feel free to contact with us.
How to choose suitable wheel
In order to recommend you a suitable wheel, could you pls. inform me below points?
- Wheel Size, and your tire model?
- Brake System, Disc Brake or Drum Brake?
- Which design of wheel do you prefer?
- Any wheel assembly dimension modification request after checking drawing (e.g. ET, bearing height)?
We'll send you more information later including price, thank you in advance.
For Drum Brake, the assembly dimension is iron ring depth & bearing height (customizable).
For Disc Brake, the assembly dimension is ET & Bearing Height (customizable).
ET: The distance between disc plate & wheel center.
PS. If there is no such wheel in store, we won't produce it for samples.
How to open new mold
For open new mold,
Could you please give us the drawing in 2D (dwg format) or 3D (STP format)?
So that we could check accordingly with our Engineer (maybe there should some modifications).
After cofirm the drawing, I could quote the cost and advise the delivery time.
How to make the order
·Before-sale, please advise which wheel do you prefer, after confirming wheel.
It could be paid online, e.g. QS Motor Shop on alibaba;
We suggest to make the deal offline, we will make PI accordingly (latest price & accurate delivery cost).
·In-sale, we will informe you once received the payment to start the order & ETD.
Before delivery, we will send some pictures for reference.
·After-sale, Once got the tracking number, will informed you immediately.
Manual and software will be sent accordingly, also we will email you after the package delivered.
Payment Term
Wire Transfer/TT, Money Gram,Western Union, Paypal 100% in advance(for sample)
Generally, we perefer T/T, Money Gram,Western Union 100% in advance (for sample).
Meanwhile, we could also accpet paypal. There will be extra cost for transaction fee: Total cost*4.4%+0.3
Withdraw fee: USD 35.0 (We could bear USD 35.0).
For Mass Production, we support 30% T/T in advance + 70% T/T the balance before shipment.
Produce Time
For standard wheel, e.g. e-bicycle wheel, e-motorcycle wheel, it takes 4-5 business days (6 business per week).
For customzide wheel/new mold, it takes 60 business days.
For mass production, it depends on the quantity.
Package
Standard export packing 1. polyfoam + carton box (for sample) 2. Or according to customer's requirements
Warranty period: 3 year for mass production (since the date of manufacture, not include sample).
QS Wheel Manufacture
Certification: ISO9001 Certificate.

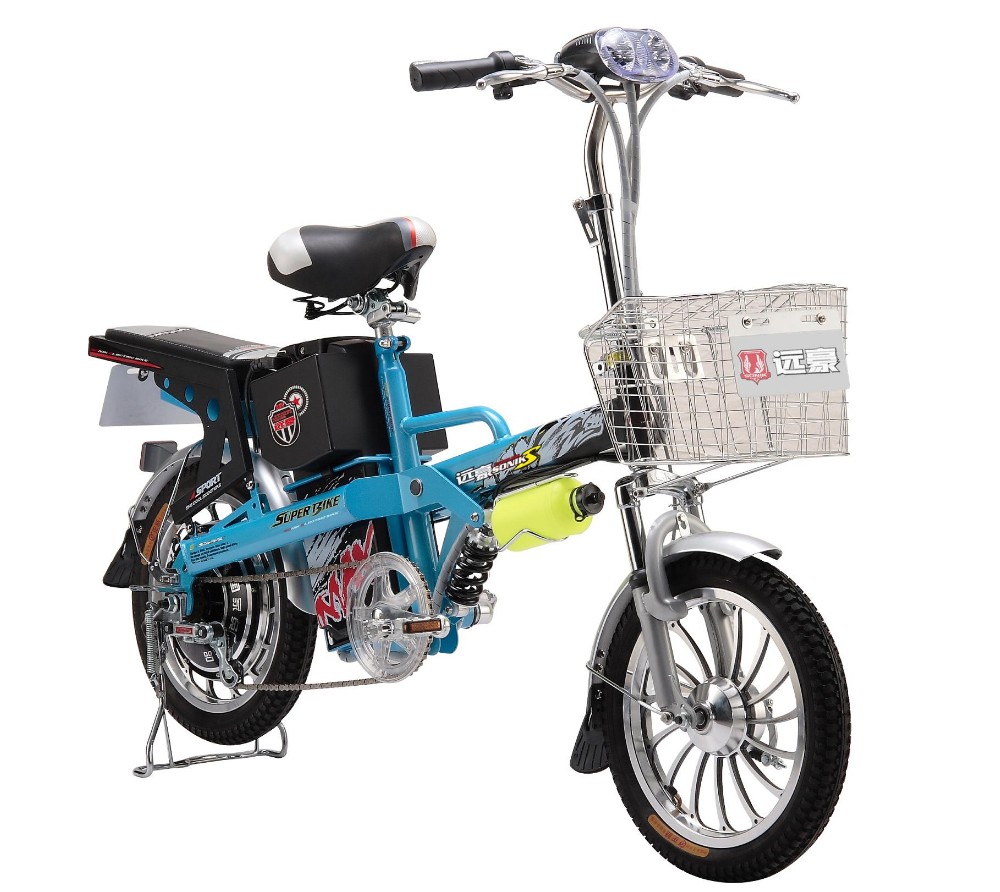

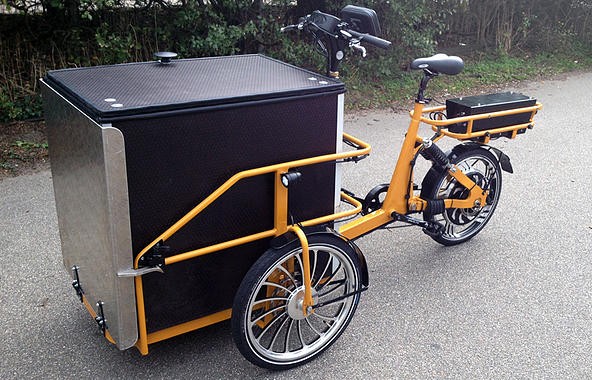

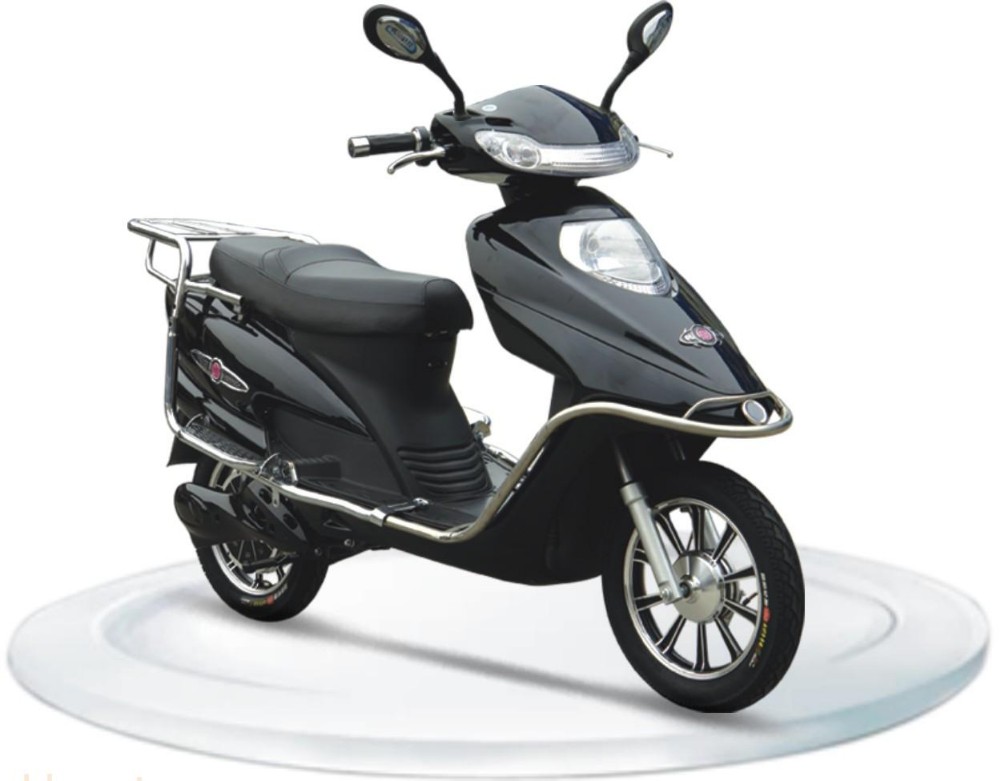

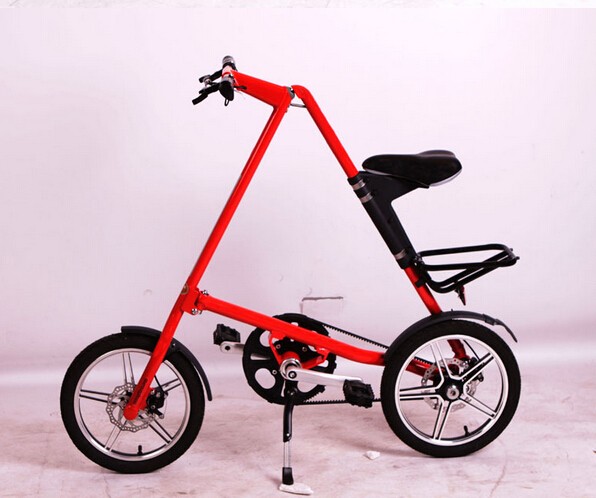

Application
No QS Motor, No Super EVs!
Product center
浙公网安备 33100402331272号
QS Motor-Vito Ho
QS Motor-Steven Shi
QS Motor-Cherry Zhou
QS Motor-Cyan Zhang
QS Motor-Damon Wang
