QS Wheel 10inch-12inch Electric Scooter Wheel Rim: Price:US $43.30/piece; N.W.:5.45kg; Production Period:4-5 Business Days; QS Motor Drawing1 QS Motor Performance Curve1


Description

QS Wheel 10inch-12inch Electric Scooter Wheel Rim

Taizhou Quanshun Vehicle Accessories Co., Ltd. is located in Luqiao district, Taizhou city, Zhejiang province, east well-developed China. We're a leading manufacture for aluminum alloy wheel rims of E-scooter In China. After 14 years of endeavor in the field of aluminum alloy wheel rims industry, Quanshun has established strong brand recognition in the aluminum wheel markets. Now, Taizhou Quanshun is a supplier of Bosch (Germany).

Quanshun Focuses on quality control and quality improvement:

1. The quality management is a direct responsibility of the general manager; Quanshun has set up the quality inspection department and the inspection and testing center to ensure the authority and the uniqueness of quality control.

2. The testing machineries keep the wheel rim's quality steady. Quanshun has a series of testing equipments: spectroanalysis intrument, hardness tester, impact testing machine etc, which guarantee the superior quality of the process from aluminum material to end products.

3. T6 heat treating line improves the quality of aluminum wheel rim to a great extent comparing with other E-scooter wheel rim manufacturers.

4. 6S management improves factory environment, staff quality and production safety.

Quanshun's vision

Meet the Challenge and Never Compromise

Customer Supreme, Quality First, Continuous Innovation.

There are Electric Balanced Scooter Wheel Rim (6inch to 6.5inch), Electric Harley Motorcycler Wheel Rim(6inch to 14inch), Electric Bicycle Wheel Rim (12inch to 20inch), Electric Motorcycle Wheel Rim (10-12inch), Customized Wheel Rim (open new mold avaiable).

QS Wheel Rim List

Electric Motorcycle Wheel Rim, 10inch to 12inch (moped wheel)

Difference between Bicycle & Moped Standard Wheel

Bicycle Wheel, the size base on the diameter with tire.

E.g. 20X2.125inch wheel, the diameter of wheel is 421mm(refer to attached drawing).

it could fit with 20X2.125inch bicycle wheel,The diameter of wheel mounted with tire is 20inch.

Moped Wheel, the size base on the diameter of wheel (not mounted with tire).

E.g. 10X2.15inch wheel, the diameter of wheel is 253.2mm (to be mounted with tire).

it could fit with 10X3.0inch moped tire.

Product & Price List

QS Wheel 10inch-12inch Electric Scooter Wheel Rim

Electric Motorcycle Wheel Rim
Size	F/R	Model & Brake	Price
Size	F/R	Model & Brake	Sample	50	100	1000
10X1.6	F	GT (Tubless) 95 Drum	$13.1	$11.6	$10.9	$7.6
10X1.6	F	Quanshun 9th 110 Drum	$14.6	$13.0	$12.2	$8.5
10X2.15	F	Kayan Drum	$14.6	$13.0	$12.2	$8.5
10X2.15	F	Kayan Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Shijign Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Shijing Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Shibajing Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Shiwujing Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Shizhua Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Shizhua Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 1st Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 1st Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 6th Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Wuxing Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Wuxing Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 5th Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Huojian Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Huojian Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 8th Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 2nd Drum	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 2nd Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 7th Disc	$15.0	$13.3	$12.5	$8.7
10X2.15	F	Quanshun 10th Disc	$15.3	$13.6	$12.7	$8.9
10X2.15	F	Quanshun 11th Disc	$15.3	$13.6	$12.7	$8.9
10X2.5	F	Wuxing Disc	/	/	/	/
10X2.5	R	Wuxing Drum	/	/	/	/
10X2.5	F	Sanye Front Disc	/	/	/	/
10X2.5	R	Sanye Front Drum	/	/	/	/
10X2.5	R	Wuye Drum	/	/	/	/
12X2.15	F	Bazhua Disc	$17.2	$15.3	$14.3	$10.0
12X2.15	F	Sanye Disc	$17.2	$15.3	$14.3	$10.0
12X2.15	F	Kayan Disc	$16.6	$14.7	$13.8	$9.7
12X2.15	F	133s Disc & Drum	$17.2	$15.3	$14.3	$10.0
12X2.15	R	133s	$17.2	$15.3	$14.3	$10.0

PS. Above price base on the wheel in store, if any modification (e.g. color), the cost will increase much.

The quotation is base on demostic standard, not include T6 heat treatment.

If need T6 heat treatment, there will be extra USD 1.0 per wheel (for less than 500pcs).

For finished wheels in store, it's not avaiable with T6 heat treatment.

What’s the meaning of model name?

QS12B-175DU01F

▪ QS-Brand QS

▪ 12B-Bicycle wheel size 12inch

▪ 175-wheel width 1.75inch

▪ DS-disc / DU-drum

▪ 01-design No.

▪ F-front / R-rear

QS Wheel Specification

QS Wheel 10inch Electric Scooter Wheel Rim

There are 10X1.6inch, 10X2.15inch & 10X2.5inch.

10X1.6inch

1. 10X1.6inch GT Front Wheel Rim

2. 10X1.6inch Quanshun 9th Front Wheel Rim

10X2.15inch

1. 10X2.15inch Kayan Front Wheel Rim

2. 10X2.15inch Shijing Front Wheel Rim

3. 10X2.15inch Shibajing Front Wheel Rim

4. 10X2.15inch Shiwujing Front Wheel Rim

5. 10X2.15inch Shiwujing Front Wheel Rim

6. 10X2.15inch Quanshun 1th Front Wheel Rim

7. 10X2.15inch Quanshun 6th Front Wheel Rim

8. 10X2.15inch Wuxing Front Wheel Rim

9. 10X2.15inch Quanshun 5th Front Wheel Rim

10. 10X2.15inch Huojian Front Wheel Rim

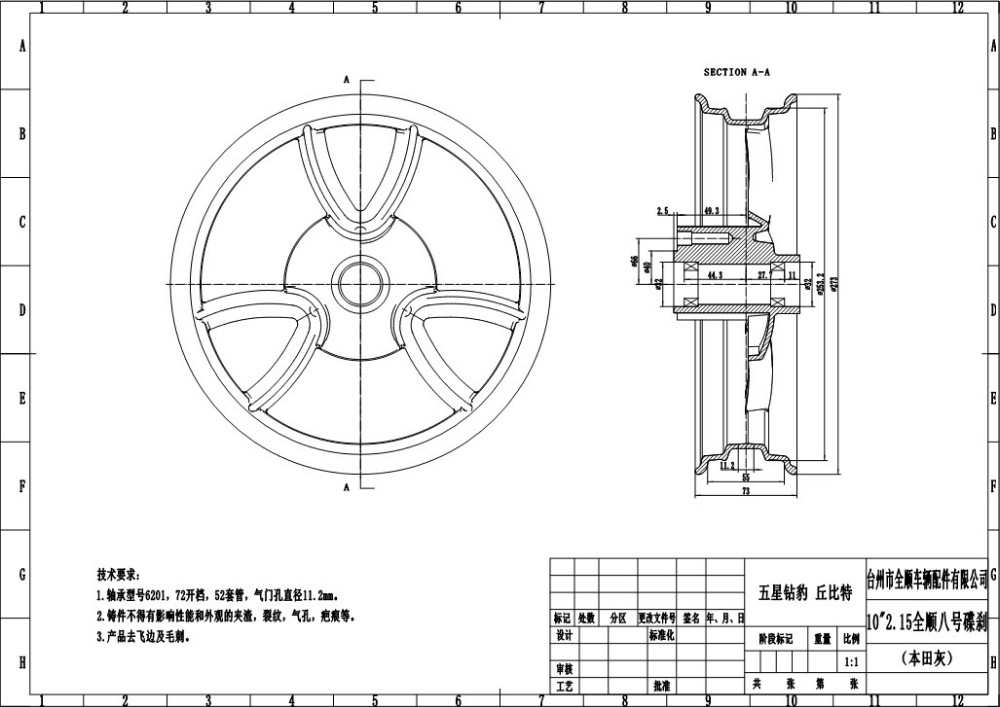

11. 10X2.15inch Quanshun 8th Front Wheel Rim

12. 10X2.15inch Quanshun 2nd Front Wheel Rim

13. 10X2.15inch Quanshun 7th Front Wheel Rim

14. 10X2.15inch Quanshun 10th Front Wheel Rim

15. 10X2.15inch Quanshun 11th Front Wheel Rim

10X2.5

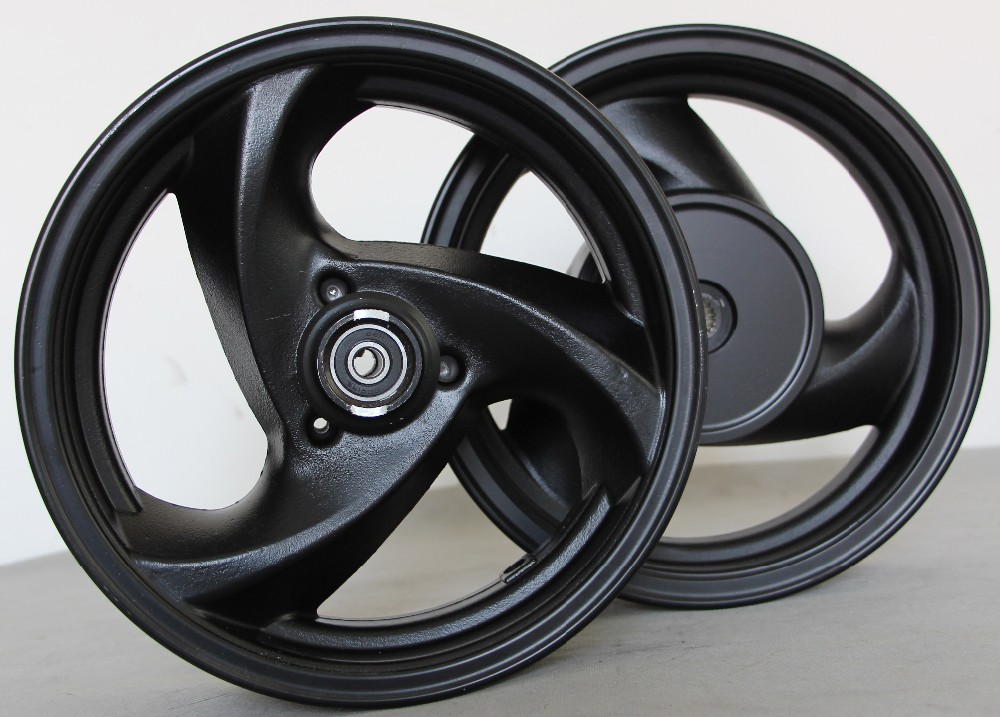

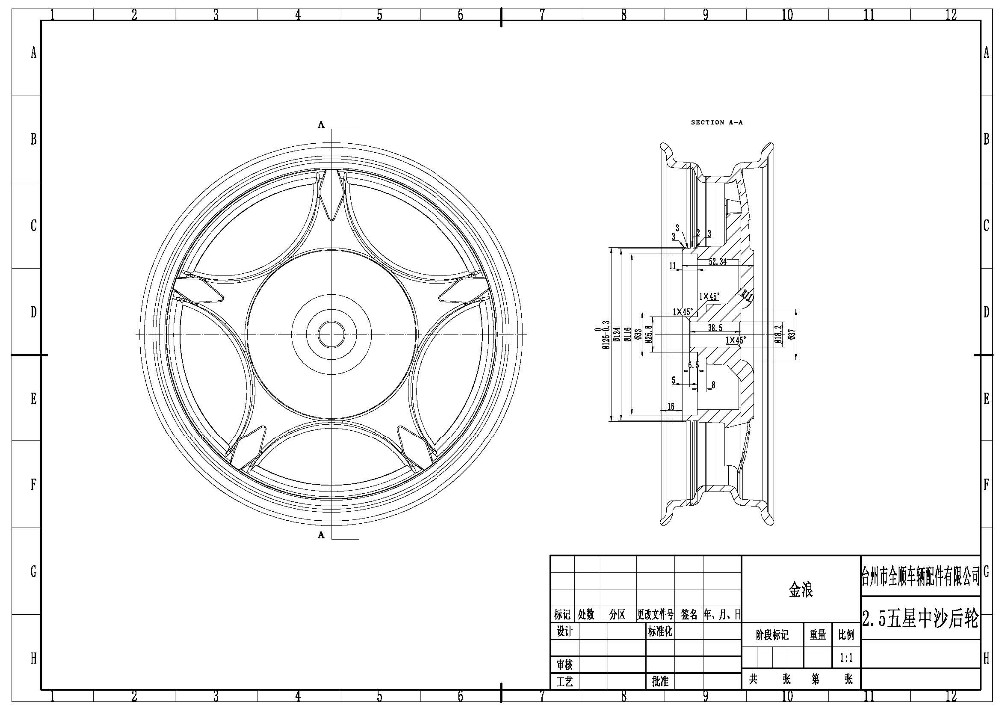

1. 10X2.5inch Wuxing Front & Rear Motorcycle Wheel Rim

2. 10X2.5inch Sanye Front & Rear Motorcycle Wheel Rim

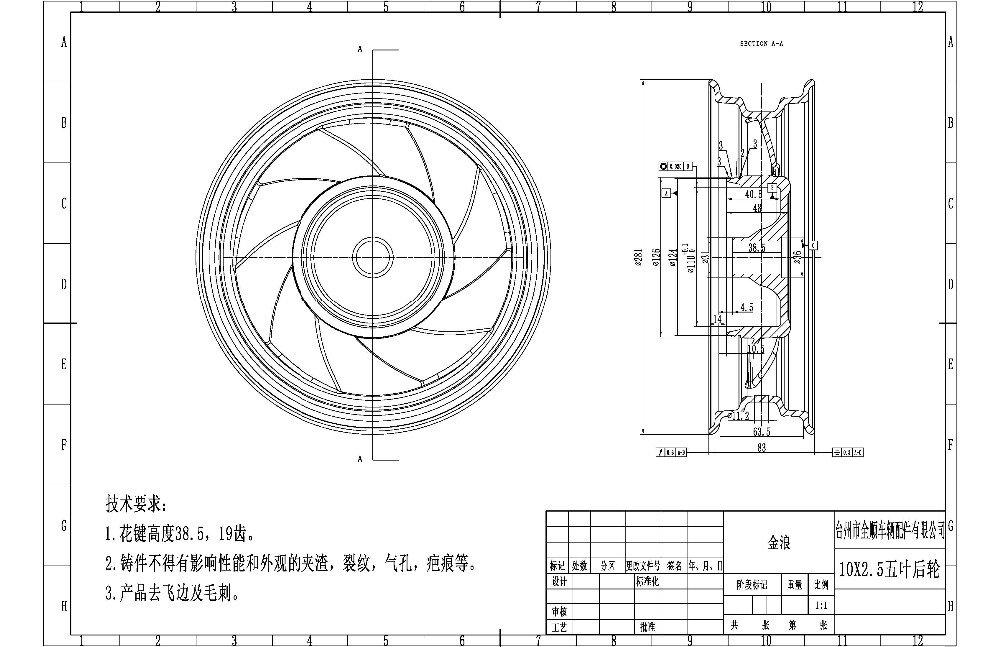

3. 10X2.5inch Wuye Rear Motorcycle Wheel Rim

12inch

12X2.15inch

1. 12X2.15inch Bazhua Front Wheel Rim

2. 12X2.15inch Sanye Front Wheel Rim

3. 12X2.15inch Kayan Front Wheel Rim

4. 12X2.15inch 133s Front & Rear Wheel Rim.

10X1.6inch

1. 10X1.6inch GT Front Wheel Rim

Drum Brake 95mm.

PS: 95mm is the diameter of drum brake.

2. 10X1.6inch Quanshun 9th Front Wheel Rim

Drum Brake 110mm.

10X2.15inch

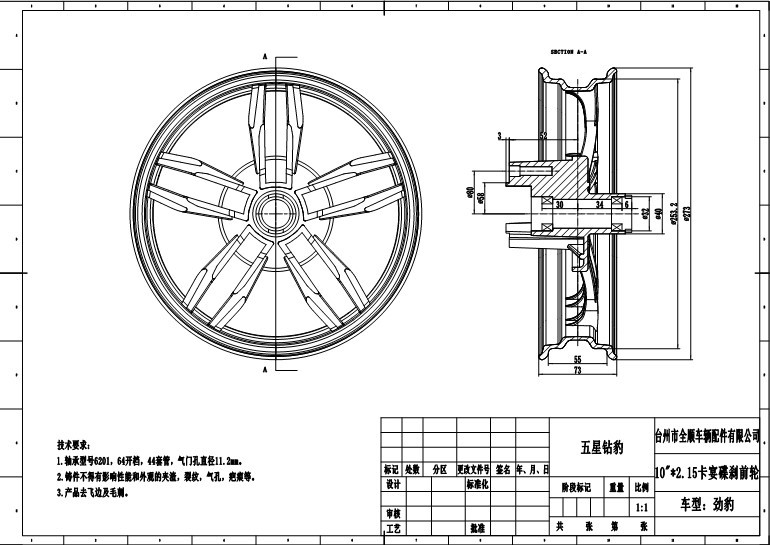

1. 10X2.15inch Kayan Front Wheel Rim

Drum Brake 110mm & Disc Brake PCD3*80mm, CB58mm.

2. 10X2.15inch Shijing Front Wheel Rim

Drum Brake 110mm & Disc Brake PCD3*80mm, CB58mm.

3. 10X2.15inch Shibajing Front Wheel Rim

Disc Brake PCD3*66mm, CB48mm.

4. 10X2.15inch Shiwujing Front Wheel Rim

Drum Brake 110mm

5. 10X2.15inch Shiwujing Front Wheel Rim

Drum Brake 110mm & Disc Brake PCD3*80mm, CB58mm

6. 10X2.15inch Quanshun 1th Front Wheel Rim

Drum Brake 110mm & Disc Brake PCD3*66mm, CB48mm

Disc Brake

Drum Brake

7. 10X2.15inch Quanshun 6th Front Wheel Rim

Disc Brake PCD3*66mm, CB48mm

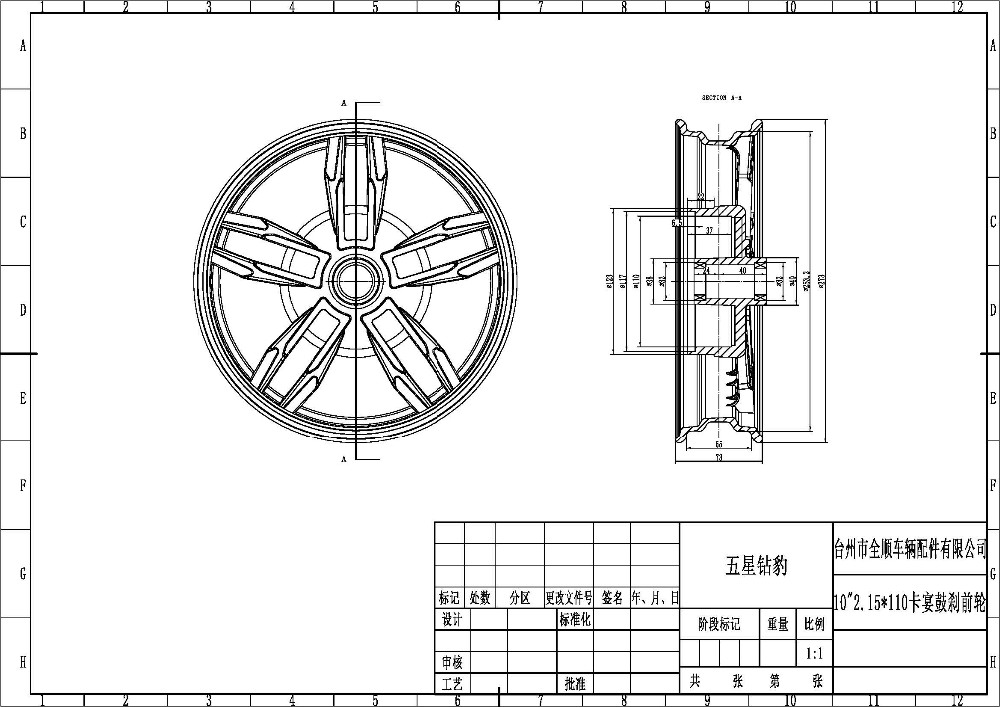

8. 10X2.15inch Wuxing Front Wheel Rim

Drum Brake 110mm & Disc Brake PCD3*66mm, CB48mm

9. 10X2.15inch Quanshun 5th Front Wheel Rim

Disc Brake PCD3*66mm, CB48mm & Disc Brake PCD3*80mm, CB58mm

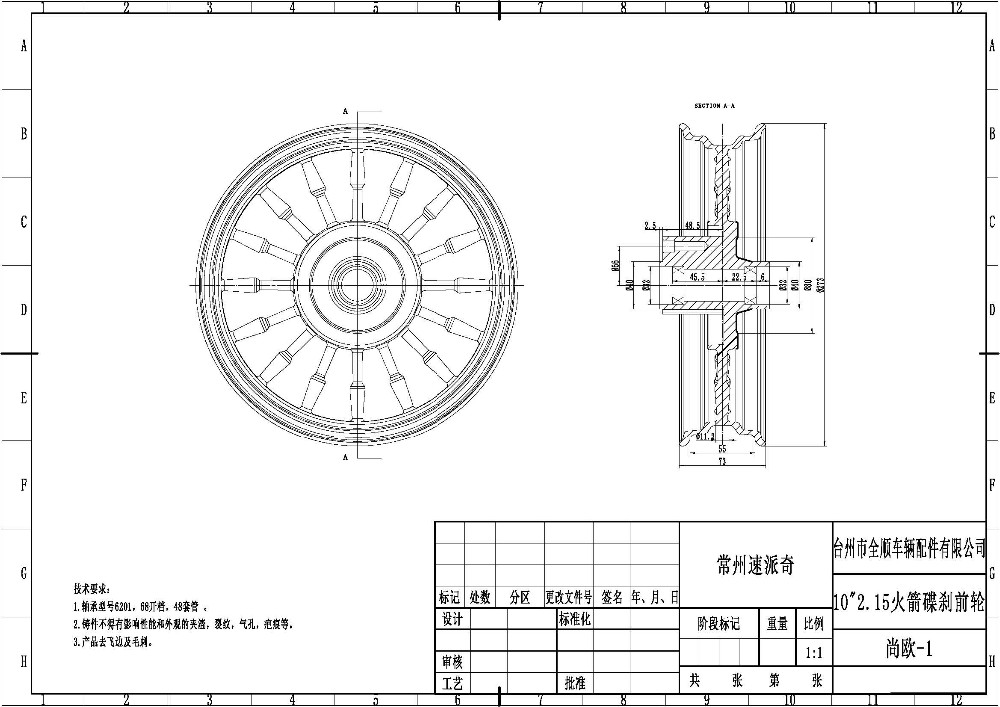

10. 10X2.15inch Huojian Front Wheel Rim

Drum Brake 110mm & Disc Brake PCD3*66mm, CB40mm

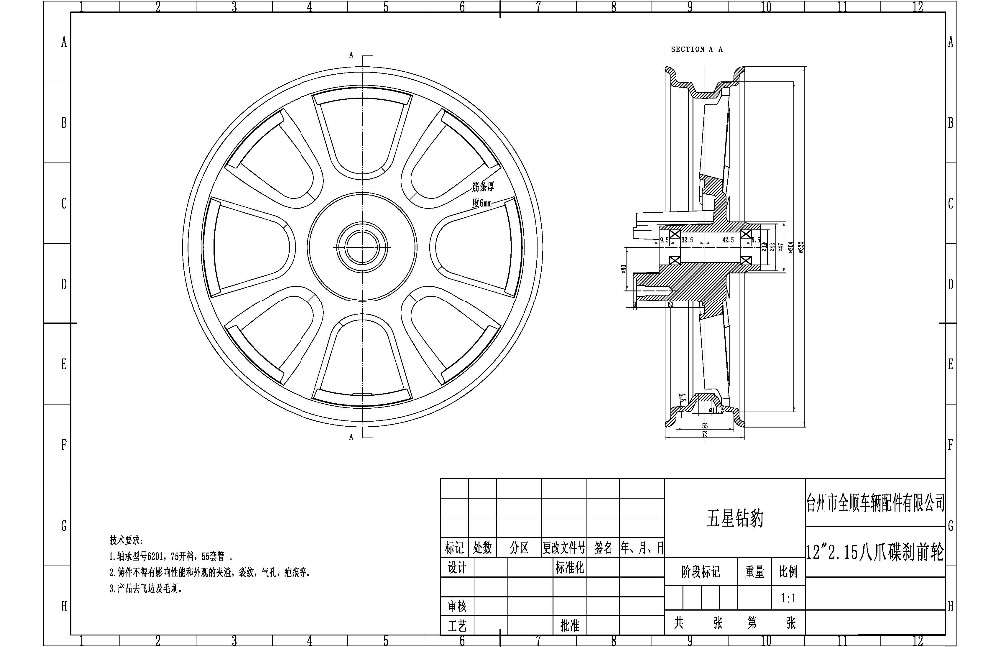

1. 12X2.15inch Bazhua Front Wheel Rim

Disc Brake, PCD3*80mm, CB58mm

2. 12X2.15inch Sanye Front Wheel Rim

Disc Brake, PCD3*80mm, CB58mm

3. 12X2.15inch Kayan Front Wheel Rim

Disc Brake, PCD3*80mm, CB58mm

4. 12X2.15inch 133s Front & Rear Wheel Rim

Front Wheel Rim, Disc Brake PCD3*80mm, CB58mm & Drum Brake 110mm

Rear Wheel Rim, 205*40H

More QS Wheel Informaiton:

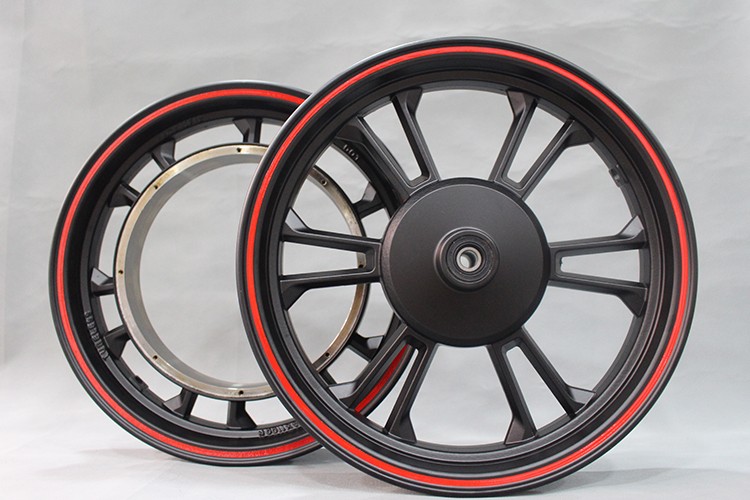

Optional Appearance

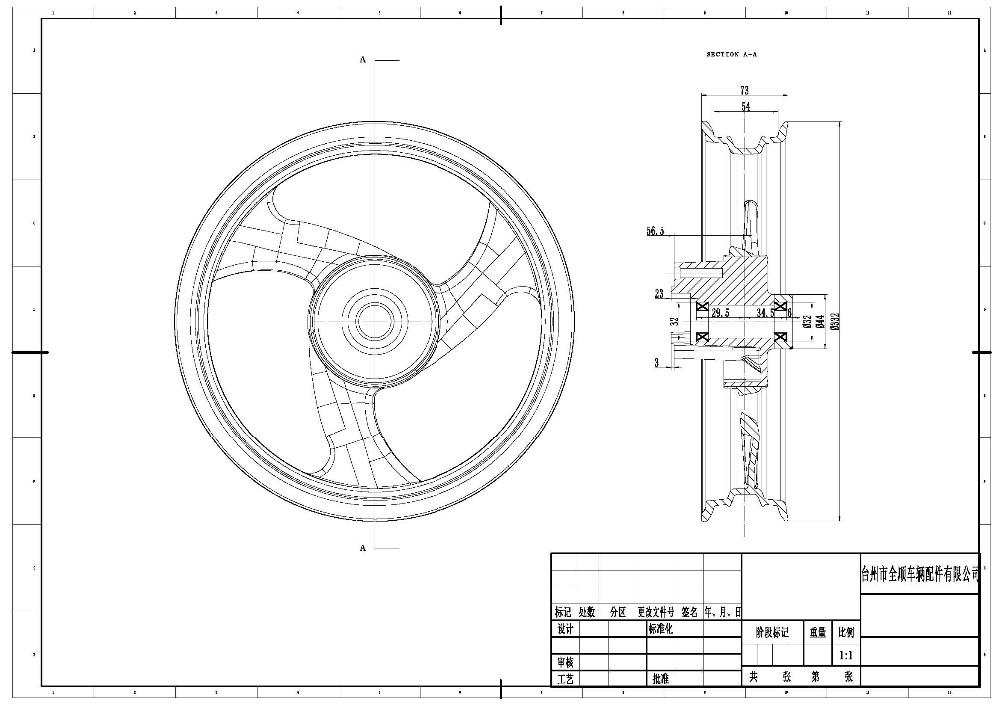

Motor Details, drawing(refer to attachment in PDF).

For more information, please feel free to contact with us.

How to choose suitable wheel

In order to recommend you a suitable wheel, could you pls. inform me below points?

Wheel Size, and your tire model?
Brake System, Disc Brake or Drum Brake?
Which design of wheel do you prefer?
Any wheel assembly dimension modification request after checking drawing (e.g. ET, bearing height)?

We'll send you more information later including price, thank you in advance.

For Drum Brake, the assembly dimension is iron ring depth & bearing height (customizable).

For Disc Brake, the assembly dimension is ET & Bearing Height (customizable).

ET: The distance between disc plate & wheel center.

PS. If there is no such wheel in store, we won't produce it for samples.

How to open new mold

For open new mold,

Could you please give us the drawing in 2D (dwg format) or 3D (STP format)?

So that we could check accordingly with our Engineer (maybe there should some modifications).

After cofirm the drawing, I could quote the cost and advise the delivery time.

How to make the order

·Before-sale, please advise which wheel do you prefer, after confirming wheel.

It could be paid online, e.g. QS Motor Shop on alibaba;

We suggest to make the deal offline, we will make PI accordingly (latest price & accurate delivery cost).

·In-sale, we will informe you once received the payment to start the order & ETD.

Before delivery, we will send some pictures for reference.

·After-sale, Once got the tracking number, will informed you immediately.

Manual and software will be sent accordingly, also we will email you after the package delivered.

Payment Term

Wire Transfer/TT, Money Gram,Western Union, Paypal 100% in advance(for sample)
Generally, we perefer T/T, Money Gram,Western Union 100% in advance (for sample).
Meanwhile, we could also accpet paypal. There will be extra cost for transaction fee: Total cost*4.4%+0.3

Withdraw fee: USD 35.0 (We could bear USD 35.0).
For Mass Production, we support 30% T/T in advance + 70% T/T the balance before shipment.

Produce Time

For standard wheel, e.g. e-bicycle wheel, e-motorcycle wheel, it takes 4-5 business days (6 business per week).
For customzide wheel/new mold, it takes 60 business days.

For mass production, it depends on the quantity.

Package
Standard export packing 1. polyfoam + carton box (for sample) 2. Or according to customer's requirements

Warranty period: 3 year for mass production (since the date of manufacture, not include sample).

QS Wheel Manufacture

Certification: ISO9001 Certificate.
