High Quality Customized 17X2.5inch Electric Tricycle Aluminum Wheel Rim With Custom Service

High Quality Customized 17X2.5inch Electric Tricycle Aluminum Wheel Rim With Custom Service

Description

The wheel rim is customized one, new mould open by customer.

It's not available for other customers, we upload it to show QS Wheel is able to make such wheel.

If interest, please give us the drawing in 2D (dwg format) or 3D (STP format).

So that we could check accordingly with our Engineer (maybe there should some modifications).

After confirm the drawing, we could quote the cost and advise the delivery time.

SPEC

1. Dimension: 17"X2.5"

Rim thickness: 5mm, ET 33mm, CB 60mm,

PCD of bolt 4*102mm, Bolt Thread 14.3mm & 28mm

3. Material: Aluminum A356 T6

4. Net Weight: 4.91kg

5. Powerder Coat: Matt Black RAL 9005, all rim painted

6. With T6 Heat Treatment

7. Text marking shall be in mould.

8. Fit 110/80-17 Tire

9. Not Include Hub Cap

For More information, please refer to below hyperlink.

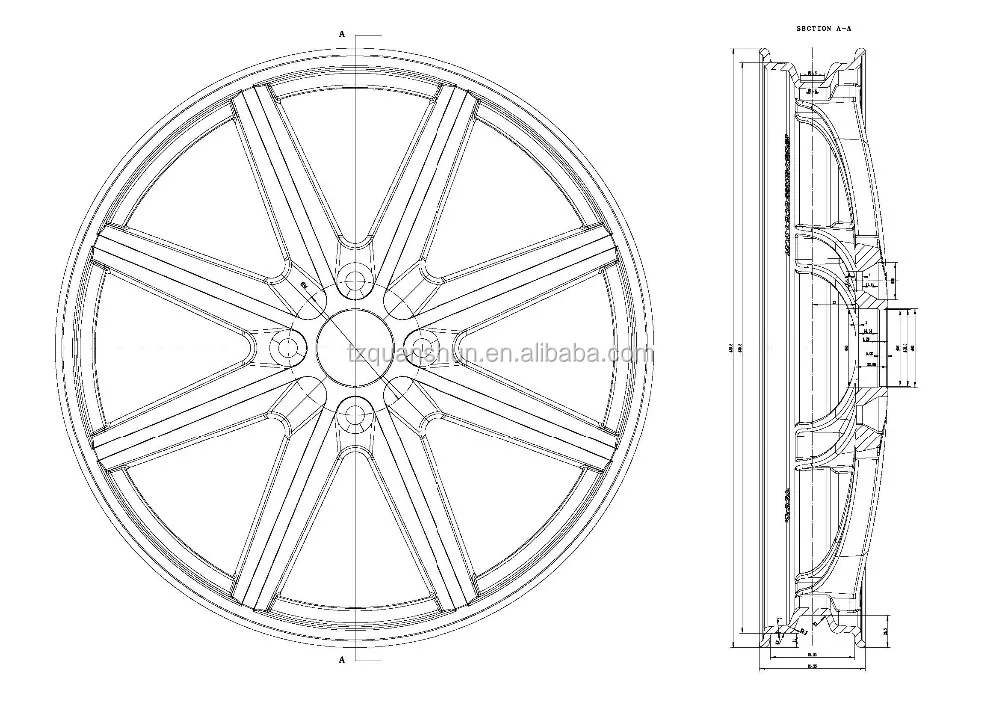

Drawing

Application

E-tricycle
