Detachable QSMOTOR 13inch 1500W - 2000W 8000W 48V - 144V 273 Electric Single Shaft Motor BLDC Hub Electric Motor
It's not avaiable now.
For 13inch detachable electric single shaft wheel hub motor, it could be used for electric scooter, electric trycicle, electric mini car.
273 motor means the diameter of iron ring/hoop of rotor is 273mm, for all 273 motor, e.g. 13inch, 14inch, 16inch,17inch, 273 e-scooter hub motor,273 spoke hub motor, 13inch-17inch 273 single shaft hub motor, etc., the configuration & performance are the same.
It's 13X3.5inch.
For electric single shaft wheel hub motor, we also provide the 10-17inch type, you can refer below link for the detailed information:
1. Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
2. QS Motor 13inch 1500-8000W E-scooter/Motorcycle List
3. Production Description
QS Motor Specification (e.g. 8000W 273 50H V3)
Pictures
Differences between V1, V2 and V3
1). Difference between V1 & V2
Holder: Iron(V1), Aluminum (V2)
Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2)
Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage.
Magnetic Steel Grade: V2 ≥ V1
Efficiency: 84~87%(V1) 86~88%(V2)
In short, normal type is standard configuration, while export type is high configuration.The price differs because of the cost of raw materials.
2). Difference between V2 & V3
The raw materials are alike, main difference in inner construction.
For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire /thicker Cross-sectional area section, bear more current in usage.
Higher torque at same current, lower temperature rise, more stable in high current.
Magentic Steel: V3 is wider and thicker.
Efficiency: 86~88%(V2) 88~92%(V3); Thus, V3 have best performance.
PS. for the same V1 steel/iron stator motors, QS Motor performance better on lifetime & stability becasue of good raw material. So the cost is more than normal hub motor in the market.
Drawing
13X3.5inch 273
4. How to find suitable hub motor
To customized a suitable motor, could you pls. inform below points:
After confirming the motor, we could try to offer suitable motor kits.
Motor matched Controller
Battery
Charger
Speedometer
Throttle
Brake System
DC-DC converter, etc.
5.Comapny Information
6.FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949

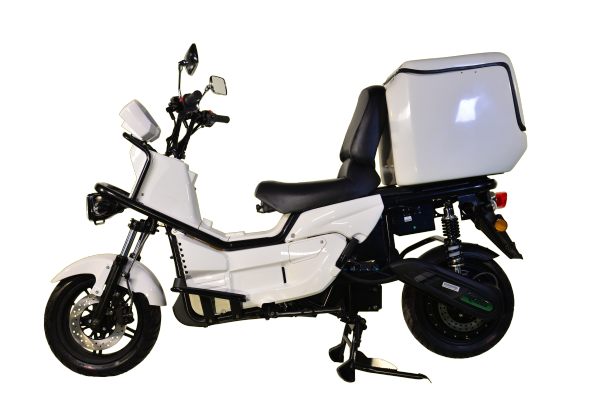

Application
No QS Motor, No Super EVs!
