48V-144V to 12V 13.5 DC DC DC/DC DC-DC Converters
Generally, it's 10A convertor, it could also be customized to be 30A.
Normal DC-DC Converters List
| Input | Output | Current | Price | |
| Non-isolated DC-DC Converter |
DC48V | DC12V | 10A | $5.00 |
| DC60V | DC12V | 10A | $5.00 | |
| DC72V | DC12V | 10A | $5.00 | |
| DC96V | DC12V | 10A | $5.00 | |
| DC108V | DC12V | 30A | $75.00 | |
| DC144V | DC12V | 30A | $80.00 | |
| DC60-130V | DC13.8V | 20A | $60.00 | |
| DC60-130V | DC12V | 25A | $60.00 | |
| Isolated DC-DC Converter |
DC96-144V | DC13.5 | 25A | $134.00 |
| DC96-144V | DC12V | 25A | $116.00 | |
| DC96-144V | DC13.8V/12V | 25/30A | $90.00 | |
| DC96V | DC12V | 20A | $55.00 | |
| DC120 | DC12V | 25A | $65.00 |
(Normally Isolated converter has 5 wires while non-isolated converter had 3 wires)Note: Because the input and output is sepereted, so Isolated DC-DC Converter has 2 more wires than Non-isolated DC-DC Converter
60V to 12V DC-DC Convertor, 10A
Over Current Protection
Short Circuit Protection
Low Voltage Protection
Red/Input: DC60V
Yellow/output: DC12V
Black: Cathode Wire
PS. It could also be used for 48V.
72V to 12V DC-DC Convertor, 10A
Over Current Protection
Short Circuit Protection
Low Voltage Protection
Red/Input: DC72V
Yellow/output: DC12V
Black: Cathode Wire
108V to 12V DC-DC Convertor, 30A
Model: JYDC 420W DC-DC
Input: Black line-, Red line +, Yellow Line Control
Output: Red line + Thick, Green Line - Thick
Input voltage: 108V
Output Voltage: 12V
Power: 420W
Isolated DC-DC Converter
High cost performance 96V to 12V 250W Isolated DC-DC CONVERTER, Class B
Price: USD 55.0/piece (for sample)
High cost performance 120V to 12V 300W 25A Isolated DC-DC CONVERTER, Class B
SPEC (e.g. 96V)
Volt: DC96V/DC12V
Power/Current: 300W/25A
Red Wire Input Voltage: B+ DC96V
Black Wire Input: B-
Yellow Output Voltage: DC 12V
Blue Output Voltage: -
N.W. 1.05kg
Price: USD 65.0/piece (for sample)
High Quality 96V-144V to 13.8V/12V 300W 25A Isolated DC-DC CONVERTER, Class A
SPEC (e.g. 96V)
Model: JYDC350W
Volt: DC96V/DC12V
Power/Current: 300W/25A
N.W. 2.53kg
Price: USD 90.0/piece (for sample)
High Quality 96V-144V to 12V 300W 25A Isolated DC-DC CONVERTER, Class A
Parameters:
Dimensions: 172mm(L)*120mm(W)*66mm(H)
Input voltage: DC 96V
Output voltage: DC 12V
Output current: 25A
Operating voltage range:75V-130V
Operating temperature: -10C - +40C
HWZ Isolated DC/DC Converter
Function :
Over current limited
Output short protection
Battery reversed connect protection
Over temperature protection
Incomplete Waterproof and anti-shock
Isolate between input and output
Advantage: safety and little disturbance; the output negative can be
directed connected with car body , even if the whole supply
system of the car is aging or short accidently, it can not cause the accident.
N.W. 2.5kg
Price: USD 116.0/piece (for sample)

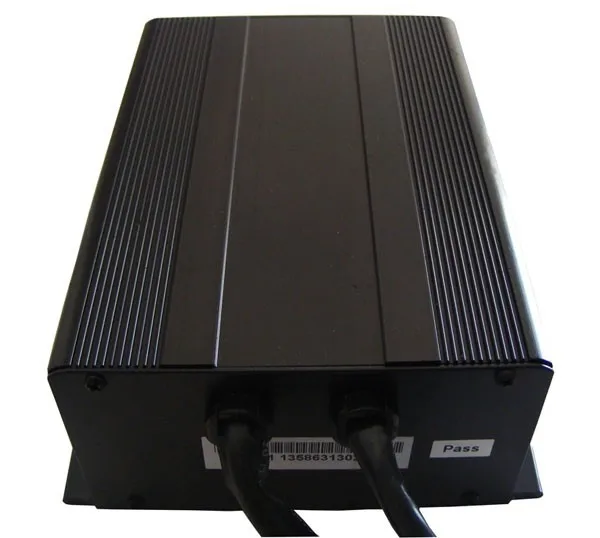

High Quality 96V-144V to 13.5V 300W 25A Isolated DC-DC CONVERTER, Class A
Parameters :
Dimensions: 179mm(L)*140mm(W)*71mm(H)
Input voltage: DC 96V
Operating voltage range:75V-130V
Output voltage: DC 13.5V
Output current: 25A
HWZ Isolated DC/DC Converter
N.W. 2.5kg
Price: USD 134.0/piece (for sample)
